User manual for the Tascam DP-008EX 8-Track Digital Pocketstudio DP-008EX
The user manual for the Tascam DP-008EX 8-Track Digital Pocketstudio DP-008EX provides
necessary instructions for the proper use of the product Pro Audio - Recording - Digital Recorders & Players.

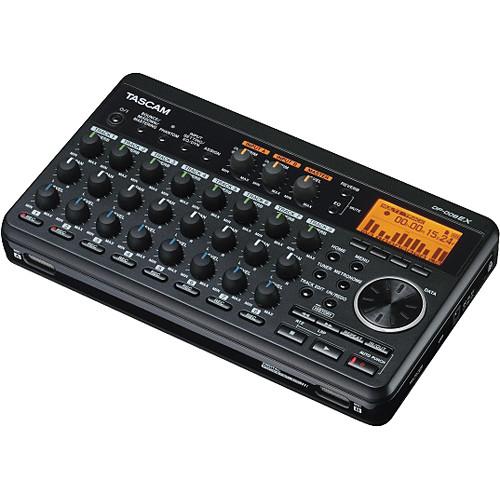

The DP-008EX 8-Track Digital Pocketstudio from Tascam is a compact, battery-powered multitrack recorder, featuring two built-in omnidirectional condenser microphones and WAV file resolution up to 16-bit/44.1kHz. Additionally, two balanced XLR inputs and two unbalanced 1/4" TS inputs can be used to record mic, line or Hi-Z instrument signals. The XLR inputs have switchable +48V Phantom power. Designed with analog functionality and dedicated control knobs, the DP-008EX is ideal for on-the-spot recording. A Mini USB 2.0 output facilitates high-speed file transfer to your Mac or PC.
The DP-008EX features onboard effects on all its input channels. Compressor, 2-band shelving EQ, de-esser and exciter are available on each track. Additionally, the DP-008EX has six different types of reverb built-in. Mastering effects for the stereo mix are also included, offering 2-band EQ, multi-band compression and normalizing. An Auto Analysis Mastering tool is also included, making the process easy, just choose between Natural or Maximum.
The DP-008EX provides a line output on a stereo pair of RCA jacks, as well as an 1/8" stereo headphone output. An integrated chromatic tuner and metronome help you perfect your performance. For elongated battery life, the DP-008EX is compatible with Tascam's BP-6AA external battery pack. It can also be powered by the PS-P520 AC adapter. Both alternative powering solutions are sold separately.
|
If you own a Tascam digital recorders & players and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Tascam DP-008EX 8-Track Digital Pocketstudio DP-008EX in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Tascam DP-008EX 8-Track Digital Pocketstudio DP-008EX:
| Recording Media | SD/SDHC card (up to 32GB) | | File System | TASCAM original (MTR partition)
FAT32 (FAT partition) | | Connectors | 2 x XLR balanced | | Input Impedance | 2.4kΩ | | Nominal Input Level | -8 dBu | | Maximum Input Level | +8 dBu | | Connector | 2 x 1/4" TS unbalanced | | Input Impedances | Switchable:
≥ 10kΩ mic/line
1MΩ guitar | | Nominal Input Level | -10 dBV | | Maximum Input Level | +6 dBV | | Headroom | 16 dB | | Type | 2 x omni-directional condenser microphone | | Connector | 2 x RCA phono (1 x L/R) | | Nominal Output Level | -10 dBV | | Maximum Output Level | +6 dBV | | Connector | 1/8" (3.5 mm) stereo mini | | Maximum Output Level | ≥ 20 mW per side
(THD+N less than 0.1%, 32Ω loaded) | | Frequency Response | 20 Hz to 20 kHz +1/-3 dB | | Distortion | < 0.05% | | Signal-to-Noise Ratio | > 81 dB | | USB Connector | 1 x USB Mini-B 4-pin | | Format | USB 2.0 high speed mass storage class | | Operating System Requirements | Windows XP / Vista / 7
Mac OS X 10.2 or later | | Power Requirements | 4 x AA batteries (alkaline or NiMH)
TASCAM PS-P520 AC adapter (sold separately) | | Battery Life (approx.) | 5.5 hrs alkaline, 6.5 hrs NiMH (using line input/recording)
6 hrs alkaline, 7 NiMH (using headphone/playback) | | Power Consumption | 2.4W maximum | | Operating Temperature Range | 41 to 95°F (5 to 35°C) | | Dimensions (W x H x D) | 8.7 x 1.74 x 5" (221 x 44.3 x 126.5 mm) | | Weight | 1.34 lb (610 g) | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 11.9 x 6.9 x 3.7" | |
The user manual for the Tascam DP-008EX 8-Track Digital Pocketstudio DP-008EX can be downloaded in .pdf
format if it did not come with your new digital recorders & players, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Tascam users keep a unique electronic library
for Tascam digital recorders & playerss,
where you can use our link to download the user manual for the Tascam DP-008EX 8-Track Digital Pocketstudio DP-008EX.
The user manual lists all of the functions of the Tascam DP-008EX 8-Track Digital Pocketstudio DP-008EX,
all the basic and advanced features and tells you how to use the digital recorders & players.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Tascam service.
