User manual Tascam DR-680 8-Track Portable Field Audio Recorder DR-680

Operating instructions and pdf manual for use - Tascam DR-680 8-Track Portable Field Audio Recorder DR-680 User manual, User manual Tascam DR-680 8-Track Portable Field Audio Recorder DR-680, Tascam, DR-680, 8-Track, Portable, Field, Audio, Recorde


User manual for Tascam DR-680 8-Track Portable Field Audio Recorder DR-680

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.

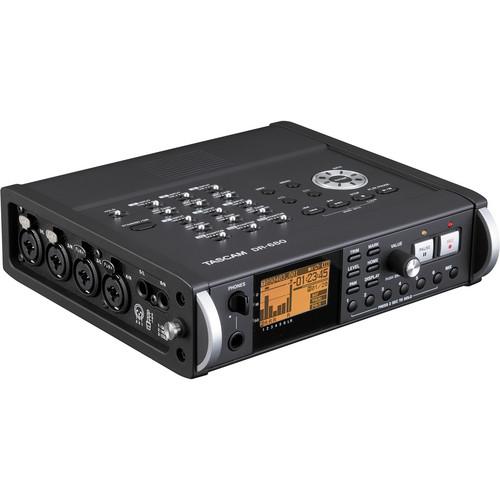

Tascam DR-680 8-Track Portable Field Audio Recorder DR-680
  • Manufacturer: Tascam
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Portable Digital Recorders
  • Safety instructions
  • Startup and operation of the portable digital recorders
  • Tips for setting up your Tascam
  • Settings and expert assistance
  • Contact Tascam service
  • Troubleshooting
  • Warranty information
  • Price: 420 USD
We recommend checking out our discussion threads on the Tascam DR-680 8-Track Portable Field Audio Recorder DR-680, which address similar problems with connecting and setting up Portable Digital Recorders Tascam.



User manual for the Tascam DR-680 8-Track Portable Field Audio Recorder DR-680

The user manual for the Tascam DR-680 8-Track Portable Field Audio Recorder DR-680 provides necessary instructions for the proper use of the product Pro Audio - Recording - Portable Digital Recorders.

The DR-680 from Tascam is a professional-quality portable field recorder that allows you to record and edit multiple tracks of audio, ideal for musicians, filmmakers, journalists, and more. The DR-680 allows you to record up to 8 tracks onto widely-available SD/SDHC flash memory cards at rates up to 24-bit/96kHz. It also allows you to record a stereo track at up to 24-bit/192kHz, as well as up to 4 channels of MP3 audio for web-ready recording.

The DR-680 has 4 XLR/TRS mic/line combo inputs, along with a pair of 1/4" mic line inputs. The 6 mic preamps provide phantom power and 60dB of gain. Each input also offers a low cut filter and a limiter, to ensure clean recordings. There are 6 RCA unbalanced outputs, plus digital S/PDIF input and output connectors. A USB 2.0 connector makes it easy to connect the recorder directly to your computer for file transfer. A cascade function lets you connect a pair of recorders for capturing up to 16 tracks.

Onboard mixing features let you mark, divide, and delete files, while pre-record and auto record modes ensure that you never miss a priceless audio moment. Digital monitor mixing with level and pan controls and a recordable stereo mixdown is provided, along with a 1/4" headphone jack and built-in speakers for monitoring. A backlit LCD shows important operating information. The recorder can operate on a set of 8 AA batteries, or on AC power for terrific versatility.
If you own a Tascam portable digital recorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Tascam DR-680 8-Track Portable Field Audio Recorder DR-680 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Tascam DR-680 8-Track Portable Field Audio Recorder DR-680Download user manual for Tascam DR-680 8-Track Portable Field Audio Recorder DR-680
(PDF file, 7.71 MB)
Additional parameters of the Tascam DR-680 8-Track Portable Field Audio Recorder DR-680:
Type Portable Multitrack Digital Audio Recorder
Recording/Reading Methods SD/SDHC Cards
Recording Bit Rate Up to 24-bit
Sampling Frequency Up to 96kHz (8 Tracks)
Up to 192kHz (2 Tracks)
Number of Channels 8
Connectors 4 x XLR/TRS Mic/Line Inputs
2 x 1/4" Mic/Line Inputs
6 x RCA Unbalanced Outputs
1 x S/PDIF Digital Input
1 x S/PDIF Digital Output
1 x USB 2.0 Port
1 x 1/4" Headphone Output
1 x Cascade Connector
Speakers Integrated
Display 128 x 64 Backlit LCD
Power 8 x AA Batteries
AC Power
Dimensions (WxHxD) 7.95 x 2.12 x 6.93" (202 x 54 x 176mm)
Weight 2.65 lbs (1.2kg) (Without Batteries)
Packaging Info
Package Weight 5.1 lb
Box Dimensions (LxWxH) 11.3 x 10.1 x 7.3"
The user manual for the Tascam DR-680 8-Track Portable Field Audio Recorder DR-680 can be downloaded in .pdf format if it did not come with your new portable digital recorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Tascam users keep a unique electronic library for Tascam portable digital recorderss, where you can use our link to download the user manual for the Tascam DR-680 8-Track Portable Field Audio Recorder DR-680.

The user manual lists all of the functions of the Tascam DR-680 8-Track Portable Field Audio Recorder DR-680, all the basic and advanced features and tells you how to use the portable digital recorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Tascam service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Tascam DR-680 8-Track Portable Field Audio Recorder DR-680. User manuals are also available on the Tascam website under Pro Audio - Recording - Portable Digital Recorders.
