User manual Tascam US-20x20 - USB Audio Interface with Mic US-20X20

Operating instructions and pdf manual for use - Tascam US-20x20 - USB Audio Interface with Mic US-20X20 User manual, User manual Tascam US-20x20 - USB Audio Interface with Mic US-20X20, Tascam, US-20x20, USB, Audio, Interface, with, Mic, US-20X20,


User manual for Tascam US-20x20 - USB Audio Interface with Mic US-20X20

Tascam US-20x20 - USB Audio Interface with Mic US-20X20
  • Manufacturer: Tascam
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - Audio Interfaces & Systems
  • Safety instructions
  • Startup and operation of the audio interfaces & systems
  • Tips for setting up your Tascam
  • Settings and expert assistance
  • Contact Tascam service
  • Troubleshooting
  • Warranty information
  • Price: 500 USD

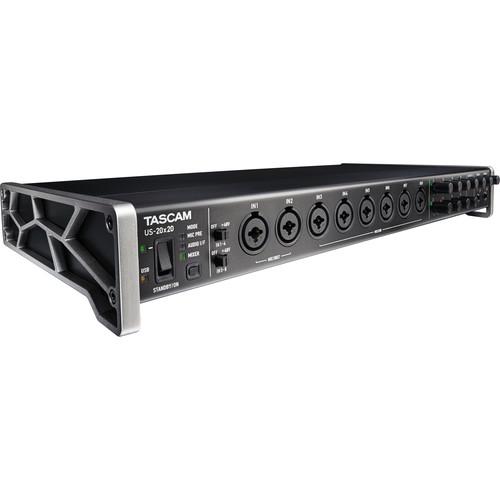

Tascam US-20x20 - USB Audio Interface with Mic US-20X20 Tascam US-20x20 - USB Audio Interface with Mic US-20X20
Click to enlarge image

We recommend checking out our discussion threads on the Tascam US-20x20 - USB Audio Interface with Mic US-20X20, which address similar problems with connecting and setting up Audio Interfaces & Systems Tascam.



User manual for the Tascam US-20x20 - USB Audio Interface with Mic US-20X20

The user manual for the Tascam US-20x20 - USB Audio Interface with Mic US-20X20 provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

The Celesonic US-20x20 from Tascam is a single rack space USB audio MIDI interface that delivers twenty channels of analog and digital inputs and outputs. Eight of the analog inputs feature Ultra-HDDA microphone preamps that provide 56 dB of gain, suitable for a wide range of microphone types. Up to ten channels of digital I/O can be accessed via ADAT and S/PDIF connectors, while Wordclock is available for use with external clocks. MIDI I/O allows use with controllers and synthesizers, and sample rates up to 24-bit/192 kHz are supported.

The unit features three operation modes for maximum flexibility - audio interface, digital mixer, and eight-channel digital microphone preamp. The USB 3.0 interface uses class-compliant drivers for future-proof use with computers and tablets, while a built-in DSP mixer includes parametric EQ and compression on every channel, and a stereo reverb send for enhancing monitor mixes. The DSP mixer can store up to ten snapshots as scenes, making it easy to recall mixer settings, and can also be used as a live mixer or sub-mixer with computer control.

Two instrument-level inputs are provided for direct input of guitar or bass. The angled design of the interface makes desktop viewing and operation much easier than a flat box sitting on a table, and the separate headphone and line output volume controls allow for setting an optimum level when both powered monitors and headphones are connected. For users who prefer rack mounting the unit, the company includes adapters and hex keys.
If you own a Tascam audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Tascam US-20x20 - USB Audio Interface with Mic US-20X20 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Tascam US-20x20 - USB Audio Interface with Mic US-20X20Download user manual for Tascam US-20x20 - USB Audio Interface with Mic US-20X20
(PDF file, 12.29 MB)
Additional parameters of the Tascam US-20x20 - USB Audio Interface with Mic US-20X20:
Resolution
Sampling Frequency 44.1, 48, 88.2, 96, 176.4, 192 kHz
Bit Rate 16-/24-bit
Analog Audio Inputs
Microphone Input Front Inputs 1 to 8, Balanced
Connector: XLR-3-31(1: ground, 2: hot, 3: cold )Input Impedance: 2.4 kOhms
Nominal Input Level, Maximum Gain: -68 dBu (0.0003 Vrms)
Nominal Input Level, Minimum Gain: -12 dBu (0.195 Vrms)
Maximum Input Level: +8 dBu (1.947 Vrms)
Gain: 56 dB
Instrument Input Front Inputs 1 and 2, Unbalanced (When Set to "INST" at LINE/INST Switch)
Connector: 1/4" (6.3 mm) TS-jack (T: hot, S: ground)
Input Impedance: 1 MOhms or more
Nominal Input Level, Maximum Gain: -68 dBu (0.0004 Vrms)
Nominal Input Level, Minimum Gain: -12 dBV (0.2512 Vrms)
Maximum Input Level: +8 dBV (0.2512 Vrms)
Gain: 56 dB
Line Input Front Inputs 3 – 8, Balanced
Connector: 1/4" (6.3 mm) TRS-jack (T: hot, R: cold, S: ground),
Input Impedance: 10 kOhms
Nominal Input Level, Minimum Gain: +4 dBu (1.228 Vrms)
Maximum Input Level: +24 dBu (12.182 Vrms)
Gain: 56 dB

Rear Inputs 9-10, Unbalanced (When Set to "INST" at LINE/INST Switch)
Connector: 1/4" (6.3 mm) TS-jack (T: hot, S: ground),
Input Impedance: 10 kOhms
Nominal Input Level: -10 dBV (0.3162 Vrms)
Maximum Input Level: +10 dBV (0.3162 Vrms)

Rear Inputs 9 – 10, Balanced (When Set to “+4 dBU” at LEVEL Switch)
Connector: 1/4" (6.3 mm) TRS-jack (T: hot, R: cold, S: ground),
Input Impedance: 10 kOhms
Nominal Input Level, Minimum Gain: +4 dBu (1.228 Vrms)
Maximum Input Level: +24 dBu (12.182 Vrms)

Digital Audio Inputs
Coaxial Connector: RCA
Format: IEC60958-3 (S/PDIF)
Input Impedance: 75 ohms
Input Level: 0.5 Vp-p/75 ohms
Optical Connector: Optical (JEITA RC-5720C)
Format: Multi-channel optical format (S/MUX4 is available in 88.2, 96, 176.4, 192 kHz)
Analog Audio Outputs
Line Output Outputs 1 -10, Balanced
Connector: 1/4" (6.3 mm) TRS-jack (T: hot, R: cold, S: ground),
Output Impedance: 100 ohms
Nominal Output Level: +4 dBu (1.228 Vrms)
Maximum Output Level: +24 dBu (12.277 Vrms)
Headphones Connector: 1/4" (6.3 mm) TRS stereo phone jack
Maximum Output Level: 70 mW +70 mW or more (THD+N 0.1% or less, 32 ohms loaded)
Digital Audio Outputs
Coaxial Connector: RCA
Format: IEC60958-3 (S/PDIF)/IEC60958-4 (AES/EBU)
Input Impedance: 75 ohms
Output Input: 0.5 Vp-p / 75 ohms
Optical Connector: Optical (JEITA RC-5720C)
Format: Multi-channel optical format (S/MUX4 is available in 88.2, 96, 176.4, 192 kHz)
MIDI
Connector 5-Pin DIN
Format Standard MIDI format
Wordclock
Input BNC (permissible frequency deviation at the time of external synchronization)
Input Voltage: 2.0 Vpp to 5.0 Vpp
Input Impedance: 75 ohms, +/-10%
Input Level: +/-100 ppm
Output BNC (with OUT/THRU select switch)
Output Voltage: 2.0 Vpp to 5.0 Vpp
Output Impedance: 75 ohms, +/-10%
Sampling Frequency: 44.1, 48, 88.2, 96, 176.4, 192 kHz
USB
Connector USB 3.0/2.0 B type
Format USB 3.0 SuperSpeed (5 Gbps) / USB 2.0 High Speed (480 Mbps)
Power
Power Dedicated AC adapter (GPE248-120200-Z, included)
Power Consumption 20 W
Audio
Frequency Response Line Out (balanced):
44.1/48 kHz: 20 Hz to 20 kHz, +/-0.3 dB (JEITA)
88.2/96 kHz: 20 Hz to 40 kHz, +/-0.3 dB(JEITA)
176.4/192 kHz: 20 Hz to 80 kHz, +/-0.5 dB(JEITA)
THD 0.005 % or less
S/N Ratio 104 dB or more
Crosstalk 100 dB or more
System Requirements
Mac Dual Core 2 GHz or faster
OS X 10.8 (Mountain Lion), OS X 10.9 (Mavericks), 10.10 (Yosemite)
USB 3.0 or 2.0 port
2 GB RAM or more
Core Audio, Core MIDI
1280 x 800 screen resolution
Windows Dual Core 2 GHz or faster
Windows 7 (32-bit SP1, 64-bit SP1), Windows 8.0 (32-bit, 64-bit), Windows 8.1 (32-bit, 64-bit), Windows 10 (32-bit, 64-bit)
USB 3.0 or 2.0 port
2 GB RAM or more
USB Audio Class 2.0, ASIO 2.0, WDM (MME), MIDI (when using WDM driver, number of output channels from an application has a limitation of less than 8 channels)
1280 x 800 screen resolution
iOS iOS 7
General
Operating Temperature 41 to 95°F (5 to 35°C)
Dimensions (WxDxH) 17.5 x 8.7 x 2.3" (445 x 222 x 59 mm)
Weight 6.1 lb (2.8 kg)
Packaging Info
Package Weight 9.35 lb
Box Dimensions (LxWxH) 21.417 x 11.417 x 5.354"
