User manual for the Telex TR-300-RTS Wireless Beltpack Transceiver F.01U.118.244
The user manual for the Telex TR-300-RTS Wireless Beltpack Transceiver F.01U.118.244 provides
necessary instructions for the proper use of the product Pro Audio - Location Sound - Transmitters & Receivers.

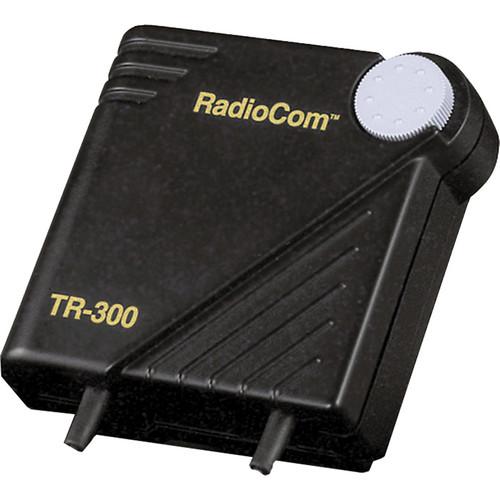

The Telex TR-300-RTS portable beltpack transceiver is designed for use with the BTR-300 single channel VHF base station. The TR-300-RTS sends and receives audio to and from the base station and additional transceivers, via a VHF frequency band of 150 - 216MHz.
The unit features a dual 1/4 wave "whip" antenna, crystal-controlled frequency stabilization, internal compression, and a 50mW transmission output, resulting in minimal RF interference and dropout. The beltpack's rugged construction makes it worthy for use on the road, and it is powered for up to 24 hours (continuously) on 6 AA alkaline batteries.
If you own a Telex transmitters & receivers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Telex TR-300-RTS Wireless Beltpack Transceiver F.01U.118.244 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Telex TR-300-RTS Wireless Beltpack Transceiver F.01U.118.244:
| Transmitter Type || Crystal-Controlled |
| Receiver Type || Dual Conversion Superheterodyne, FM |
| RF Frequency Range || 150 - 216MHz (TRVA #2) |
| Transmit Power || 50mW |
| Microphone Input || 30 - 3500 Ohms |
| Antenna Type || 1/4 Wave Attached |
| Signal-to-Noise Ratio || 90dB |
| Local Headset Output || 32mW into 600 Ohms |
| Frequency Response || 300Hz - 5kHz |
| Power Requirements || 6 AA Alkaline Batteries (NiMH-optional) |
Current Draw: Typical 82mA
| Battery Life || 24 Hours (Continuous) |
| Dimensions (WxHxD) || 4.25 x 4.13 x 2" (108 x 105 x 51mm) |
| Weight || 13 oz (369g) (With Batteries) |
| Package Weight || 1.05 lb |
| Box Dimensions (LxWxH) || 10.2 x 7.3 x 3.1" |
The user manual for the Telex TR-300-RTS Wireless Beltpack Transceiver F.01U.118.244 can be downloaded in .pdf
format if it did not come with your new transmitters & receivers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Telex users keep a unique electronic library
for Telex transmitters & receiverss,
where you can use our link to download the user manual for the Telex TR-300-RTS Wireless Beltpack Transceiver F.01U.118.244.
The user manual lists all of the functions of the Telex TR-300-RTS Wireless Beltpack Transceiver F.01U.118.244,
all the basic and advanced features and tells you how to use the transmitters & receivers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Telex service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Telex TR-300-RTS Wireless Beltpack Transceiver F.01U.118.244. User manuals are also
available on the Telex website under Pro Audio - Location Sound - Transmitters & Receivers.
