User manual Telex TT-16 - 16-Channel Wireless IFB Base Station F.01U.117.808

Operating instructions and pdf manual for use - Telex TT-16 - 16-Channel Wireless IFB Base Station F.01U.117.808 User manual, User manual Telex TT-16 - 16-Channel Wireless IFB Base Station F.01U.117.808, Telex, TT-16, 16-Channel, Wireless, IFB, Bas


User manual for Telex TT-16 - 16-Channel Wireless IFB Base Station F.01U.117.808

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Telex TT-16 - 16-Channel Wireless IFB Base Station F.01U.117.808
  • Manufacturer: Telex
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - IFB & Cueing
  • Safety instructions
  • Startup and operation of the ifb & cueing
  • Tips for setting up your Telex
  • Settings and expert assistance
  • Contact Telex service
  • Troubleshooting
  • Warranty information
  • Price: 788 USD
We recommend checking out our discussion threads on the Telex TT-16 - 16-Channel Wireless IFB Base Station F.01U.117.808, which address similar problems with connecting and setting up IFB & Cueing Telex.



User manual for the Telex TT-16 - 16-Channel Wireless IFB Base Station F.01U.117.808

The user manual for the Telex TT-16 - 16-Channel Wireless IFB Base Station F.01U.117.808 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - IFB & Cueing.

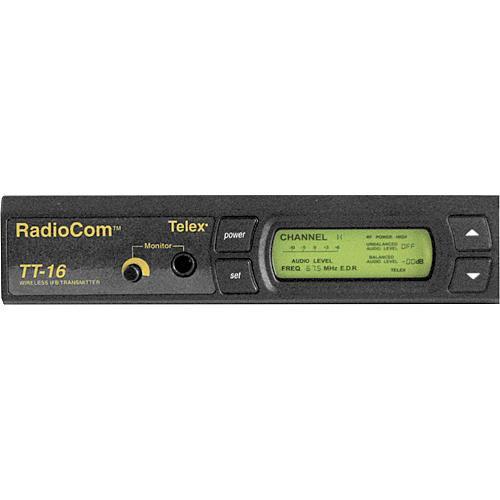

The Telex TT-16 is a wireless base station transmitter for IFB or personal monitoring use, operating in the low VHF range from 64 to 68 MHz with a reliable transmission range of over 750'.
If you own a Telex ifb & cueing and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Telex TT-16 - 16-Channel Wireless IFB Base Station F.01U.117.808 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Telex TT-16 - 16-Channel Wireless IFB Base Station F.01U.117.808Download user manual for Telex TT-16 - 16-Channel Wireless IFB Base Station F.01U.117.808
(PDF file, 0.43 MB)
Additional parameters of the Telex TT-16 - 16-Channel Wireless IFB Base Station F.01U.117.808:
Output Connectors No
Input Connectors 1 x 3-pin XLR, Balanced
1 x 1/4" TS Phone, Unbalanced
1 x BNC Antenna
1 x Coaxial Power In
Output Level 50mW max.(Hi)
5mW (Low)
Input Level Not Specified by Manufacturer
Input Impedance Balanced:
RTS 1, 2 Selected: 200 Ohms
Telex Selected: 300 Ohms
Unbalanced: 10 kOhms
Frequency Response 100 Hz - 10 kHz
THD + N <2%
Minimum Common Mode Rejection Not Specified by Manufacturer
Voltage Gain 30dB (with AGC)
Voltage Output Not Specified by Manufacturer
Call Signaling No
Sidetone No
Microphone Type No
Microphone Input No
Phantom Power No
Headset Connector 1 x 1/4" Stereo Phone
Maximum Current Capacity 300mA
Maximum # of Belt Packs 5
Input Power Requirement 13VAC @ 300mA
15 - 24VDC @ 300mA
Power Adapter Yes
Dimensions 7.5 x 1.75 x 7" (190.5 x 44.45 x 177.8mm)
Weight 3.9 lb (1.8 kg)
Packaging Info
Package Weight 3.836 lb
Box Dimensions (LxWxH) 18.1 x 11.3 x 3.8"
The user manual for the Telex TT-16 - 16-Channel Wireless IFB Base Station F.01U.117.808 can be downloaded in .pdf format if it did not come with your new ifb & cueing, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Telex users keep a unique electronic library for Telex ifb & cueings, where you can use our link to download the user manual for the Telex TT-16 - 16-Channel Wireless IFB Base Station F.01U.117.808.

The user manual lists all of the functions of the Telex TT-16 - 16-Channel Wireless IFB Base Station F.01U.117.808, all the basic and advanced features and tells you how to use the ifb & cueing. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Telex service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Telex TT-16 - 16-Channel Wireless IFB Base Station F.01U.117.808. User manuals are also available on the Telex website under Pro Audio - Location Sound - IFB & Cueing.
