User manual for the Thermaltake Toughpower 1500W Gold Power PS-TPD-1500MPCGUS-1
The user manual for the Thermaltake Toughpower 1500W Gold Power PS-TPD-1500MPCGUS-1 provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Power Supplies.

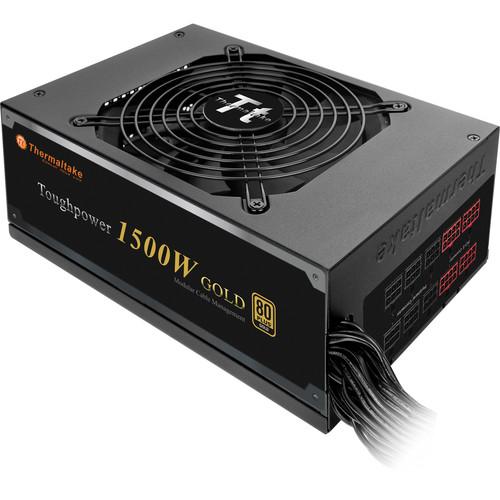

The Toughpower 1500W Gold Power Supply from Thermaltake, is PSU certified to the 80 PLUS Gold standard. Incorporating high-quality components, it delivers stable performance and efficiency. The TPD 1500W Gold, which uses a semi-modular design, features an ultra-quiet fan design, which delivers silent cooling. Finally, a dual strong 12V rail flexibly routes the maximum available power to the CPU, enabling optimized performance of the computer system.
The Toughpower 1500W adopts a 135mm cooling fan with intelligent RPM control. This guarantees improved cooling performance and silent operation. Not only that, but, the PSU saves energy through its high energy efficiency of up to 90% and is certified to 80 PLUS Gold. In addition, the PD 1500W is designed to meet the demands of Intel's new Haswell processors.
The 1500 is supplied with flat, low-profile modular cables, which are used in its design to enhance airflow as well as improve the thermal performance of the chassis. Flat cables are inherently more flexible, making cable routing easier.
Electronic components are what it's all about with the 1500 Gold. The Japanese capacitors produce performance with low impedance characteristics. This delivers stable operation over extended periods of time, as well as improved reliability. The Toughpower 1500W Gold tops it off with its powerful dedicated dual +12V rail output.
|
If you own a Thermaltake power supplies and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Thermaltake Toughpower 1500W Gold Power PS-TPD-1500MPCGUS-1 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Thermaltake Toughpower 1500W Gold Power PS-TPD-1500MPCGUS-1:
| Type | Intel ATX 12 V V2.3 & EPS 12 V standards | | Maximum Output Capacity | 1500 W | | Power Factor Correction | Active PFC | | Power Good Signal | 100 to 500 ms | | Hold Up Time | 17 ms (minimum) @ 75% of maximum load at 100 to 240 VAC input | | Input Frequency Range | 50 to 60 Hz | | Input Voltage | 100 to 240 VAC | | Input Current | 9 ~ 18 A | | DC Output | @ 3.3 V
Max Output Current: 25 A
Max Output Power: 150 W
@ 5 V
Max Output Current: 25 A
Max Output Power: 150 W
@+12 V1 & V2
Max Output Current: 70 A
Max Output Power: 1400 W
@-12 V
Max Output Current: 0.3 A
Max Output Power: 3.6 W
@+5 V sb
Max Output Current: 3.5 A
Max Output Power: 17.5 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 10 to 90%, non-condensing | | Storage Temperature | 14 to 122° F (-10 to 50°C) | | Storage Humidity | 5 to 95%, non-condensing | | Cooling System | 5.3" (135 mm) dual ball bearing Fan: 1700 R.P.M. ± 10% | | Efficiency | 87 to 92% efficiency @ 20-100% load | | MTBF (Approx.) | 120,000 hrs minimum | | Safety Approvals | UL/ CB + Baurt mark/ CE/ FCC/ CCC/ GOST certification | | Cable Compliment | 1 x Main power connector (24-pin)
1 x EPS 12 V (8-pin)
1 x ATV 12 V (4 +4-pin)
8 x Peripheral (4-pin)
16 x SATA (5-pin)
10 x PCI-E (6 + 2-pin)
1 x PATA to FDD (4-pin) | | Dimensions (H x W x D) | 3.4 x 6 x 8.7" (86 x 150 x 220 mm) | | Weight | Not supplied by manufacturer | |
