User manual Toa Electronics DA-250DH - 2-Channel Digital DA-250DH CU

Operating instructions and pdf manual for use - Toa Electronics DA-250DH - 2-Channel Digital DA-250DH CU User manual, User manual Toa Electronics DA-250DH - 2-Channel Digital DA-250DH CU, Toa, Electronics, DA-250DH, 2-Channel, Digital, DA-250DH, CU


User manual for Toa Electronics DA-250DH - 2-Channel Digital DA-250DH CU

Toa Electronics DA-250DH - 2-Channel Digital DA-250DH CU
  • Manufacturer: Toa Electronics
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - 70-Volt Amplifiers
  • Safety instructions
  • Startup and operation of the 70-volt amplifiers
  • Tips for setting up your Toa Electronics
  • Settings and expert assistance
  • Contact Toa Electronics service
  • Troubleshooting
  • Warranty information
  • Price: 947 USD
We recommend checking out our discussion threads on the Toa Electronics DA-250DH - 2-Channel Digital DA-250DH CU, which address similar problems with connecting and setting up 70-Volt Amplifiers Toa Electronics.



User manual for the Toa Electronics DA-250DH - 2-Channel Digital DA-250DH CU

The user manual for the Toa Electronics DA-250DH - 2-Channel Digital DA-250DH CU provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - 70-Volt Amplifiers.

The DA-250DH from Toa Electronics is a high-quality 1RU digital amplifier designed for installed applications running at 70V. It offers two channels of input and output, with removable terminal block inputs and a screw terminal strip for outputs. If desired, the first input channel signal can be routed to both outputs, perfect for multi-zone paging.

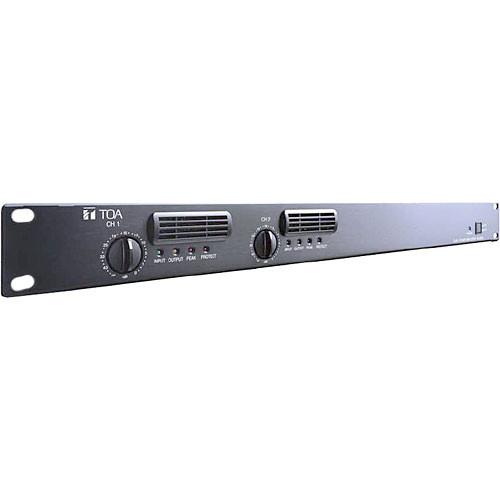

The front of the unit provides large control knobs for input level control, as well as LEDs to show input, output, power, peak, and protect status. The built-in protection circuitry protects against damages from short circuits, overloads, and overheating. Class-D circuitry provides excellent audio quality and allows the DA-250DH to operate at 85 percent efficiency, so it consumes almost 1/3 less power than analog amplifiers.
If you own a Toa Electronics 70-volt amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Toa Electronics DA-250DH - 2-Channel Digital DA-250DH CU in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Toa Electronics DA-250DH - 2-Channel Digital DA-250DH CU:
Specifications
    Output Power 2x 250W (70V)
    1 x 500W (140V) bridged
    Frequency Response 20Hz - 20kHz (±1dB)
    Total Harmonic Distortion (THD) 0.1% (1kHz)
    0.3% (20Hz - 20kHz)
    Input Sensitivity +4dB (1.23V)
    Input Impedance 10kohms (unbalanced), 20kohms (balanced)
    Signal to Noise Ratio 100dB
    Connectors 1 x AC Power Input
    2 x 3-Pin Removable Terminal Block Input Connectors
    1 x Screw Terminal Strip Output (2 Channels)
    Controls 1 x Power Switch
    2 x Input Volume Control Knobs
    2 x Bridge On/Off Buttons
    1 x Ch1 Mode On/Off Button
    Indicators 1 x Blue Power LED
    2 x Green Input LEDs
    2 x Yellow Output LEDs
    2 x Red Peak LEDs
    2 x Red Protect LEDs
    Power Requirements 120VAC, 50/60Hz
    Power Consumption 580W, 7.8A
    Dimensions (WxHxD) 19 x 1.7 x 15.7" (482 x 44 x 401mm)
    Weight 11.02 lbs (5kg)
    Packaging Info
    Package Weight 17.8 lb
    Box Dimensions (LxWxH) 23.4 x 22.7 x 4.4"
    The user manual for the Toa Electronics DA-250DH - 2-Channel Digital DA-250DH CU can be downloaded in .pdf format if it did not come with your new 70-volt amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Toa Electronics users keep a unique electronic library for Toa Electronics 70-volt amplifierss, where you can use our link to download the user manual for the Toa Electronics DA-250DH - 2-Channel Digital DA-250DH CU.

    The user manual lists all of the functions of the Toa Electronics DA-250DH - 2-Channel Digital DA-250DH CU, all the basic and advanced features and tells you how to use the 70-volt amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Toa Electronics service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Toa Electronics DA-250DH - 2-Channel Digital DA-250DH CU. User manuals are also available on the Toa Electronics website under Pro Audio - Installation Sound - 70-Volt Amplifiers.
