User manual for the Toshiba IK-WP41A High-Speed IP Network PTZ Dome Camera IK-WP41A

The user manual for the Toshiba IK-WP41A High-Speed IP Network PTZ Dome Camera IK-WP41A provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

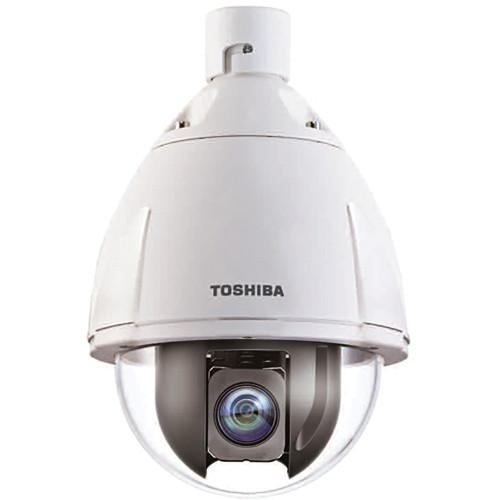

The Toshiba IK-WP41A High-Speed IP Network PTZ Dome Camera features a 20x optical zoom, 4.7 to 94mm varifocal lens, and 1080p full HD resolution to capture large areas with fine detail. With high speed pan, tilt, zoom, and day/night capabilities, this camera is ideal for use in transportation, public space, and warehouse locations. Advanced preset and auto patrol functions offer flexible coverage while 802.3at Power over Ethernet Plus simplifies installation.
If you own a Toshiba wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Toshiba IK-WP41A High-Speed IP Network PTZ Dome Camera IK-WP41A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Toshiba IK-WP41A High-Speed IP Network PTZ Dome Camera IK-WP41A:
Image Sensor 1/2.8" progressive scan CMOS 2 MP
Effective Pixels 1920 x 1080
Lens Varifocal f=4.7 to 94 mm
F=1.6 (wide), F=3.5 (tele)
Lens Type Auto focus
Zoom 20x optical, 12x digital
Pan & Tilt 360° continuous pan / 85° (indoor) tilt, 92° (outdoor) tilt
Viewing Angle 2.9° (tele) to 55.4° (wide) horizontal
Min. Illumination Night mode: 0.3 lux (F1.6, 1/30 sec, 50 IRE)
Day mode: 1.7 lux (F1.6, 1/30 sec, 50 IRE)
Electric Shutter 1 to 1/10,000
Day/Night Yes, IR cut filter
Wide Dynamic Range Auto, on, and off
White Balance Auto, ATW, indoor, outdoor, one-push
AGC (Automatic Gain Control) Auto, manual
BLC Yes
Privacy Masking Yes, 8 zones
Motion Detection Yes
Pan/Tilt Speed Auto: 0.1 to 430°/s pan, 0.1 to 200°/s tilt
Manual: 0.1 to 120°/s pan, 0.1 to 90°/s tilt
PTZ Control 128 presets, auto patrol, auto flip, auto restore, proportional pan/tilt
Compression H.264, MJPEG
Resolution 1080p, 720p, 480p, VGA, QVGA, and CIF
Frame Rate Up to 30 fps @ 1080p (H.264)
Up to 30 fps @ 1080p (MJPEG)
Video Streams 2 simultaneous @ 720p, single @ 1080p
Audio Compression PCM, G711
Audio In/Out Line out (1 vrms)
Protocols IPv4, TCP/IP, UDP, HTTP, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, ARP
Security Password protection (administrator and 5 users)
Basic authentication Yes (Windows standard)
Bandwidth Control TBD
Camera Set-up Program TBD
Plug-In Support Active X
Alarm Recording FTP, email, SD card
Ethernet Connector 10 Base-T/100 Base-TX, RJ45
Digital In/Out 6x in / 1x out
SD Card Slot SDHC
Power Requirements 24 VAC ± 15% 60 Hz or 802.3at PoE+
Power Consumption 55 W maximum
Operation Temperature PoE: 14 to 122°F (-10 to 50°C)
24 VAC: -22 to 122°F (-30 to 50°C)
Operating Humidity 90%
Storage Temperature -22 to 140°F (-30 to 60°C)
Storage Humidity 90%
Approvals FCC Class A, UL 60950-1, cUL
Environmental IP66
Supported Web Browsers Internet Explorer Ver. 8.0 or later
Supported OS Windows® XP, Vista Business, Windows 7 professional
Dimensions (HxD) 12.76 x 8.53" (324 x 216.6 mm)
Weight 8.38 lb (3.8 kg)
The user manual for the Toshiba IK-WP41A High-Speed IP Network PTZ Dome Camera IK-WP41A can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Toshiba users keep a unique electronic library for Toshiba wired ip camerass, where you can use our link to download the user manual for the Toshiba IK-WP41A High-Speed IP Network PTZ Dome Camera IK-WP41A.

The user manual lists all of the functions of the Toshiba IK-WP41A High-Speed IP Network PTZ Dome Camera IK-WP41A, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Toshiba service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Toshiba IK-WP41A High-Speed IP Network PTZ Dome Camera IK-WP41A. User manuals are also available on the Toshiba website under Surveillance - Surveillance Video - Wired IP Cameras.
