User manual Toshiba IK-WR12A IP Network Megapixel Camera (Outdoor) IK-WR12A

Operating instructions and pdf manual for use - Toshiba IK-WR12A IP Network Megapixel Camera (Outdoor) IK-WR12A User manual, User manual Toshiba IK-WR12A IP Network Megapixel Camera (Outdoor) IK-WR12A, Toshiba, IK-WR12A, IP, Network, Megapixel, Cam


User manual for Toshiba IK-WR12A IP Network Megapixel Camera (Outdoor) IK-WR12A

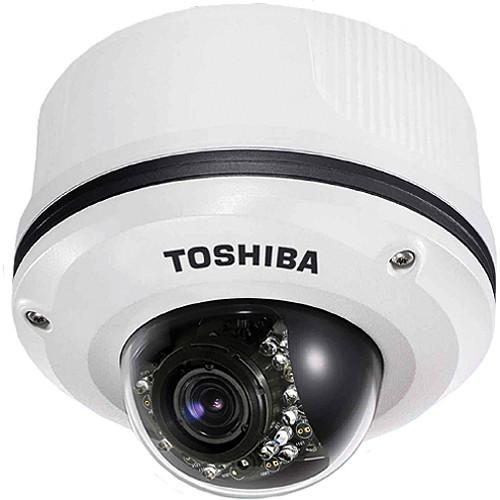

Toshiba IK-WR12A IP Network Megapixel Camera (Outdoor) IK-WR12A
  • Manufacturer: Toshiba
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Toshiba
  • Settings and expert assistance
  • Contact Toshiba service
  • Troubleshooting
  • Warranty information
  • Price: 610 USD
We recommend checking out our discussion threads on the Toshiba IK-WR12A IP Network Megapixel Camera (Outdoor) IK-WR12A, which address similar problems with connecting and setting up Wired IP Cameras Toshiba.



User manual for the Toshiba IK-WR12A IP Network Megapixel Camera (Outdoor) IK-WR12A

The user manual for the Toshiba IK-WR12A IP Network Megapixel Camera (Outdoor) IK-WR12A provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

The Toshiba IK-WR12A IP Network Megapixel Camera (Outdoor) features a 1/3.2" progressive scan CMOS sensor, 3-9mm varifocal lens, and an infrared LED array for day and night surveillance. With a removable mechanical IR cut filter, the IR LEDs supports viewing in total darkness (0 lux) at f/1.2. It features 4x digital zoom, with flickerless imaging. Auto White Balance adjusts the red and blue signals in the AWB mode by taking a standard white color reference to get the most natural colors. Auto Gain Control adjusts the signal strength to maintain a constant brightness level.

Motion detection feature detects presence of relevant motion in the area under surveillance. The IK-WR12A IP Network Megapixel Camera captures video with a maximum resolution of 1600 x 1200 pixels, and supports simultaneous quad streaming of MPEG-4 and JPEG file formats. The 2-way audio allows the users to communicate with visitors or intruders. Privacy masking can be used to mask specific portions of a scene for security reasons. The tamper detection feature allows you to detect whether the camera is tampered with, such as blockage or spray paint. An SD/SDHC card slot is provided for local recording.

With IP66 weatherproof rating, the vandal-resistant housing of the camera protects it from dust, water, moisture, humidity, and impact. It has a built-in heater/fan (blower), and can operate in a temperature range of -22° to 122°F (-30 to 50°C). PoE (Power-over-Ethernet) supplies power to the camera from the network itself without any extra wiring for auxiliary power outlets. Featuring the ePTZ function, it enables users to rapidly shift the focus to a specified area for a close-up inspection, without physically moving the camera. The IK-WR12A IP Network Megapixel Camera is suitable for outdoor locations such as high-risk schools, jails, retailers, parking lots, warehouses, and airports.
If you own a Toshiba wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Toshiba IK-WR12A IP Network Megapixel Camera (Outdoor) IK-WR12A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Toshiba IK-WR12A IP Network Megapixel Camera (Outdoor) IK-WR12ADownload user manual for Toshiba IK-WR12A IP Network Megapixel Camera (Outdoor) IK-WR12A
(PDF file, 40.55 MB)
Additional parameters of the Toshiba IK-WR12A IP Network Megapixel Camera (Outdoor) IK-WR12A:
Imaging
Image Sensor 1/3.2" CMOS
Effective Picture Elements 1600 x 1200
Scanning System Progressive
Lens Varifocal f=3 to 9mm
Angle of View H: 30 to 87° , V: 22 to 64°
Focus System Manual
Image Compression JPEG, MPEG4 (dual codec)
Minimum Illumination 0.0 lux/F1.2 with IR LED on
White Balance AWB
AGC Action Auto
Backlight Compensation On
Flickerless Yes, 50Hz/60Hz selectable
Privacy Masking Yes
Tamper Detection Yes
Motion Detection Yes
ePTZ Yes
Zoom 3X optical, 4x digital
Day/Night Removable IR-cut filter
Environmental
IP Rating IP66
Heater/Blower Built-in
Temperature Range -22 to 122°F (-30 to 50°C)
Network
Protocol Support TCP/ IP, HTTP, HTTPs, UPnP, SNMP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE
Internet Protocol IPv4, IPv6
Camera Setup Program Installation Wizard ActiveX
Streaming MPEG4/JPEG: Simultaneous four streamings
Bandwidth control QoS, CoS
Image sizes (MPEG-4 and JPEG) 1600x1200, 1280x960, 800x600, 640x480, 320x240, 176x144
Frame Rate SVGA: 30 fps (MPEG, JPEG)
UXGA: 15 fps (MPEG), 15 fps (JPEG)
Security Multi level ID/Password, IP address filtering, HTTPS, 802.1x port-based authentication
DDNS no-ip.com changeIP.com
Audio I/O MIC IN / LINE OUT 2-way audio (SIP)
Multi-cast/Uni-cast Yes
Alarm recording, email, FTP Yes
Recording in client PC Yes
Recording to SD Card Yes (SD, SDHC)
Export/upload function Yes
Daylight savings Yes
Interface
Ethernet Port 10 Base-T/100 Base-Tx RJ-45
Audio in/out terminal Yes (Mic In / Line Out)
Browser Compatibility Internet Explorer V8.0 or later
OS Compatibility MS Windows XP, Vista, 7
Mechanical
Dimensions (Diam. x H) 6.8 x 5.3" (17.27 x 13.46 cm)
IR Distance Effective up to 65.61' (20m)
Humidity 20 to 90%
Weight 4.81 lbs (2.18 kg)
Power Requirements DC 12V±10%, AC 24V±10%, PoE
Power Consumption 7.2W (12VDC), 14.4W (24VAC)
RoHS Compliant Yes
Standards FCC/A and B, IC (ICES-003), UL60950, CSA C22.2
Standards AC adapter: UL, CSA, FCC/B
Packaging Info
Package Weight 6.65 lb
Box Dimensions (LxWxH) 11.6 x 8.4 x 7.2"
The user manual for the Toshiba IK-WR12A IP Network Megapixel Camera (Outdoor) IK-WR12A can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Toshiba users keep a unique electronic library for Toshiba wired ip camerass, where you can use our link to download the user manual for the Toshiba IK-WR12A IP Network Megapixel Camera (Outdoor) IK-WR12A.

The user manual lists all of the functions of the Toshiba IK-WR12A IP Network Megapixel Camera (Outdoor) IK-WR12A, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Toshiba service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Toshiba IK-WR12A IP Network Megapixel Camera (Outdoor) IK-WR12A. User manuals are also available on the Toshiba website under Surveillance - Surveillance Video - Wired IP Cameras.
