User manual for the TP-Link CPE210 2.4 GHz 300 Mbps 9 dBi Outdoor CPE210
The user manual for the TP-Link CPE210 2.4 GHz 300 Mbps 9 dBi Outdoor CPE210 provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Routers.

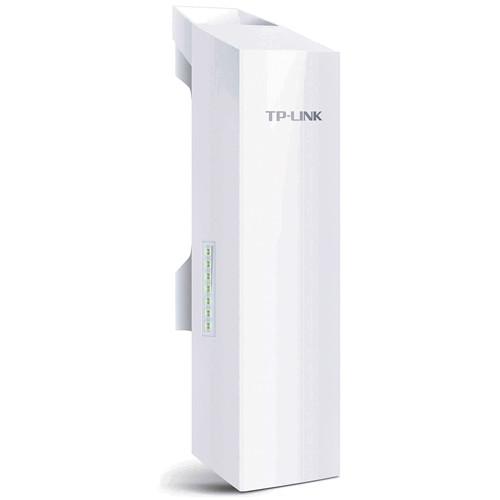

Whether using this device as a point to multi-point link or as an access point, the CPE210 2.4 GHz 300 Mbps 9 dBi Outdoor Customer-Premises Equipment from TP-Link is capable of enhancing network performance and coverage. This CPE features a weatherproof enclosure complete with 15 KV ESD protection and 6,000 V lightning protection allowing it to withstand some of the harshest weather conditions.
The enclosure is composed of outdoor ASA stabilized plastic and carries the IPX5 waterproof certification. Underneath the sturdy shell you will find one Fast Ethernet Passive PoE input and one Fast Ethernet Passive PoE Passthrough port eliminating the need for an additional PoE adapter. You will also find one grounding terminal for added protection against lightning strikes.
Once installed, you can take advantage of IEEE 802.11b/g/n networking standards to connect nearly any Wi-Fi enabled device to the Internet. The CPE operates on the 2.4 GHz routing frequency supporting a maximum data transfer rate of up to 300 Mbps with a transmit power of up to 27 dBm. Configure the CPE to suit nearly any networking need with support for AP, client, bridge, repeater, AP router mode, and AP client (WISP client) operation modes.
If you own a TP-Link wireless routers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the TP-Link CPE210 2.4 GHz 300 Mbps 9 dBi Outdoor CPE210 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the TP-Link CPE210 2.4 GHz 300 Mbps 9 dBi Outdoor CPE210:
1 x 10/100 Mbps Shielded Ethernet port (LAN0,Passive PoE in) 1 x 10/100 Mbps Shielded Ethernet port (LAN1, Passive PoE Passthrough) 1 x Grounding terminal 1 x Reset button
Power Supply
Passive Power over Ethernet via LAN0 (+4,5 pins; -7,8 pins)
Input Voltage Range
16-27 V DC (24 V Passive PoE Adapter is provided)
Power Draw
10.5 Watts max Note: When deployed using Passive PoE, the power drawn from the power sourcing equipment will be higher by some amount depending on the length of the interconnecting cable
Protection
15 KV ESD protection 6000 V Lightning protection
Enclosure
Outdoor ASA stabilized plastic material IPX5 waterproof certification
2.4~2.483 GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used (Dynamic Frequency Selection is supported)
Wireless Speed
Up to 300 Mbps (40 MHz, Dynamic) Up to 144.4 Mbps (20 MHz, Dynamic) Up to 72.2 Mbps (10 MHz, Dynamic) Up to 36.1 Mbps (5 MHz, Dynamic)
Max Transmit Power
27 dBm / 500 mw (Adjustable power by 1 dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used
Operation Modes
AP / Client / Bridge / Repeater / AP Router Mode /AP Client Router (WISP Client) Mode
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux Note: We recommend you to use one of following Web browsers for better experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
