User manual TP-Link T1600G-52PS JetStream 48-Port Gigabit Smart T1600G-52PS

Operating instructions and pdf manual for use - TP-Link T1600G-52PS JetStream 48-Port Gigabit Smart T1600G-52PS User manual, User manual TP-Link T1600G-52PS JetStream 48-Port Gigabit Smart T1600G-52PS, TP-Link, T1600G-52PS, JetStream, 48-Port, Giga


User manual for TP-Link T1600G-52PS JetStream 48-Port Gigabit Smart T1600G-52PS

TP-Link T1600G-52PS JetStream 48-Port Gigabit Smart T1600G-52PS
  • Manufacturer: TP-Link
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Network Switches, Bridges & Hubs
  • Safety instructions
  • Startup and operation of the network switches, bridges & hubs
  • Tips for setting up your TP-Link
  • Settings and expert assistance
  • Contact TP-Link service
  • Troubleshooting
  • Warranty information
  • Price: 660 USD

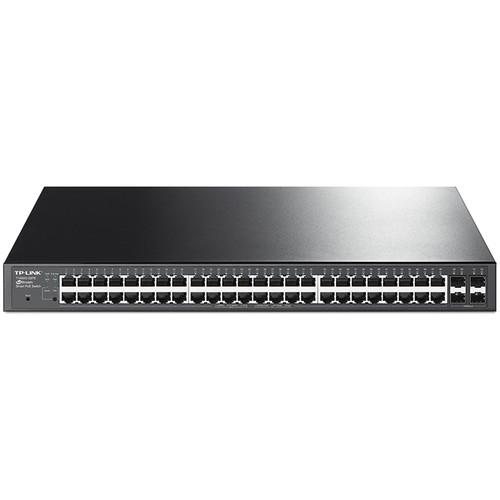

TP-Link T1600G-52PS JetStream 48-Port Gigabit Smart T1600G-52PS TP-Link T1600G-52PS JetStream 48-Port Gigabit Smart T1600G-52PS
Click to enlarge image

We recommend checking out our discussion threads on the TP-Link T1600G-52PS JetStream 48-Port Gigabit Smart T1600G-52PS, which address similar problems with connecting and setting up Network Switches, Bridges & Hubs TP-Link.



User manual for the TP-Link T1600G-52PS JetStream 48-Port Gigabit Smart T1600G-52PS

The user manual for the TP-Link T1600G-52PS JetStream 48-Port Gigabit Smart T1600G-52PS provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.

With 48 802.3at/af PoE compliant Gigabit Ethernet ports and a power supply of 384 W, the T1600G-52PS JetStream 48-Port Gigabit Smart PoE+ Switch with 4 SFP Slots from TP-Link is designed to support a variety of devices from IP cameras, to access points, and more. In addition to the numerous PoE Gigabit Ethernet ports, this TP-Link switch also comes equipped with 4 Gigabit SFP slots supporting a variety of small form factor pluggable devices and fibre channel applications. This T1600G-52PS also contains 3 built-in fans to keep everything cool when pushing the switch to it's limits.

Once installed, this TP-Link switch offers a wealth of Layer 2 and Layer 2+ features, including static routing to help route internal traffic, 802.1Q VLAN tagging, port mirroring, link aggregation, 802.3x flow control, and more. For network maintainence TP-Link has included features such as loop back detection, cable diagnostics, and IGMP snooping. Securing the network has also been simplified thanks to IP-MAC-port binding, port security, storm control, and HDCP snooping, while 802.1X compliance offers an added level of authentication for users attempting to gain access to the network.
If you own a TP-Link network switches, bridges & hubs and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the TP-Link T1600G-52PS JetStream 48-Port Gigabit Smart T1600G-52PS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the TP-Link T1600G-52PS JetStream 48-Port Gigabit Smart T1600G-52PS:
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interfaces 48 x 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4 x Gigabit SFP Slots
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 328 ft / 100 m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 328 ft / 100 m)
1000BASE-X: MMF, SMF
Fan Quantity 3
Power Supply 100~240 VAC, 50/60 Hz
Power Consumption Maximum (PoE on): 470.4 W (220 V / 50 Hz)
Maximum (PoE off): 46.5 W (220 V / 50 Hz)
PoE Ports Standard: 802.3at/af compliant
PoE+ Ports: 48 Ports
Power Supply: 384 W
Bandwidth 104 Gbps
Packet Forwarding Rate 77.4 Mpps
MAC Address Table 16 K
Jumbo Frame 9 KB
Software
Quality of Service Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow-based Rate Limiting
Voice VLAN
L2 Features Static Routing
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
LLDP, LLDP-MED
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
VLAN Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
MAC/Protocol-based VLAN
Access Control List L2ソL4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports
Security Port Security
IP-MAC-Port Binding
ARP Inspection
DHCP Snooping
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv1
Broadcast/Multicast/Unknown-unicast Storm Control
IPv6 Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 Applications DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
Management Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image
Other Specifications
Certifications CE, FCC, RoHS
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista; Windows 7/8; Mac OS; NetWare; UNIX; or Linux
Temperature & Humidity Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 5 to 90% non-condensing
Dimensions & Weight
Dimensions 17.30 x 13.00 x 1.73" / 440 x 330 x 44 mm
Weight Not specified by manufacturer
The user manual for the TP-Link T1600G-52PS JetStream 48-Port Gigabit Smart T1600G-52PS can be downloaded in .pdf format if it did not come with your new network switches, bridges & hubs, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other TP-Link users keep a unique electronic library for TP-Link network switches, bridges & hubss, where you can use our link to download the user manual for the TP-Link T1600G-52PS JetStream 48-Port Gigabit Smart T1600G-52PS.

The user manual lists all of the functions of the TP-Link T1600G-52PS JetStream 48-Port Gigabit Smart T1600G-52PS, all the basic and advanced features and tells you how to use the network switches, bridges & hubs. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from TP-Link service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the TP-Link T1600G-52PS JetStream 48-Port Gigabit Smart T1600G-52PS. User manuals are also available on the TP-Link website under Computers & Solutions - Networking - Network Switches, Bridges & Hubs.
