User manual TP-Link TC-7610 DOCSIS 3.0 Cable Modem TC-7610

Operating instructions and pdf manual for use - TP-Link TC-7610 DOCSIS 3.0 Cable Modem TC-7610 User manual, User manual TP-Link TC-7610 DOCSIS 3.0 Cable Modem TC-7610, TP-Link, TC-7610, DOCSIS, 3.0, Cable, Modem, TC-7610, Video


User manual for TP-Link TC-7610 DOCSIS 3.0 Cable Modem TC-7610

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.

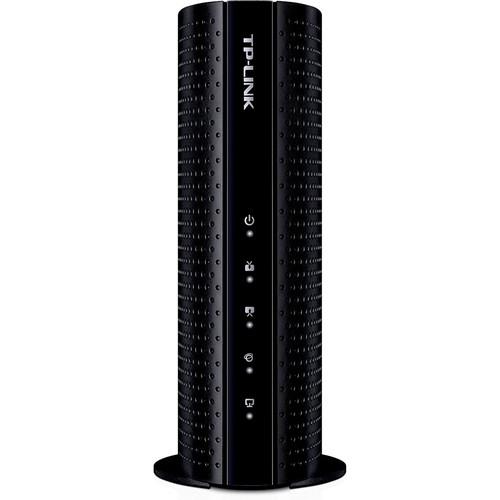

TP-Link  TC-7610 DOCSIS 3.0 Cable Modem TC-7610
  • Manufacturer: TP-Link
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Modems
  • Safety instructions
  • Startup and operation of the modems
  • Tips for setting up your TP-Link
  • Settings and expert assistance
  • Contact TP-Link service
  • Troubleshooting
  • Warranty information
  • Price: 59 USD
We recommend checking out our discussion threads on the TP-Link TC-7610 DOCSIS 3.0 Cable Modem TC-7610, which address similar problems with connecting and setting up Modems TP-Link.



User manual for the TP-Link TC-7610 DOCSIS 3.0 Cable Modem TC-7610

The user manual for the TP-Link TC-7610 DOCSIS 3.0 Cable Modem TC-7610 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Modems.

Eliminate the monthly fees that are often associated with renting a modem from your cable company with the TC-7610 DOCSIS 3.0 Cable Modem from TP-Link. Once configured you can take advantage of enhanced downstream data speeds of up to 343 Mbps and upstream data speeds of up to 143 Mbps. These enhanced data rates ensure you can stream HD content, download large files quickly, play online games, and much more. Setup is simple as this modem comes equipped with one Gigabit Ethernet port connect to your computer or router and one F-connector to connect directly to your Internet service provider.
If you own a TP-Link modems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the TP-Link TC-7610 DOCSIS 3.0 Cable Modem TC-7610 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the TP-Link TC-7610 DOCSIS 3.0 Cable Modem TC-7610:
Downstream
Channel Bonding Up to 8
Channel Width 48 MHz (8 channels) / 6 MHz (single channel)
Frequency Range 108 to 1002 MHz (edge to edge)
Maximum Data Rate Up to 343 Mbps
Modulation 64 QAM / 256 QAM
Symbol Rate 5.057 Msym/s (64 QAM) / 5.361 Msym/s (256 QAM)
Upstream
Channel Bonding Up to 4
Channel Width 200 KHz / 400 KHz / 800 KHz / 1.6 MHz / 3.2 MHz / 6.4 MHz
Frequency Range 5 to 42 MHz (edge to edge)
Maximum Data Rate Up to 143 Mbps
Modulation QPSK, 8/ 16/ 32/ 64/ 128 QAM
Symbol Rate 160 / 320 / 640 / 1280 / 2560 / 5120 Ksym/s
Network
DHCP DHCP Client
IP Stack Supports IPv4 and IPv6 dual stack
Multicast Support IGMP v1/v2/v3
VPN Passthrough PPTP, L2TP, IPSec
Other Specifications
Certifications FCC, UL, Cablelabs, RoHS
Environment Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 5 to 90% non-condensing
Operating System Windows 8/Windows 7/ Windows Vista, Service Pack 1 or later/ Windows XP, Service Pack 2 or later/ Mac 10.4 or later (Ethernet Connection Only) UNIX Linux
Power Supply 12 VDC / 1 A
Protocol Support Network: IP, ICMP, ARP
Transport: TCP, UDP
Application: SNMP (v1, 2c and 3), TFTP,DHCP, ToD
Button 1 x reset button
Interface 1 x F-Connector (female 75 ohms)
1 x 10/100/1000 Mbps Ethernet (RJ-45)
1 x Power jack
Dimensions & Weight
Dimensions 5.6 x 4.5 x 2.3" / 141.5 x 115.5 x 57.9 mm
Weight Not specified by manufacturer
Packaging Info
Package Weight 1.25 lb
Box Dimensions (LxWxH) 8.976 x 8.031 x 2.913"
The user manual for the TP-Link TC-7610 DOCSIS 3.0 Cable Modem TC-7610 can be downloaded in .pdf format if it did not come with your new modems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other TP-Link users keep a unique electronic library for TP-Link modemss, where you can use our link to download the user manual for the TP-Link TC-7610 DOCSIS 3.0 Cable Modem TC-7610.

The user manual lists all of the functions of the TP-Link TC-7610 DOCSIS 3.0 Cable Modem TC-7610, all the basic and advanced features and tells you how to use the modems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from TP-Link service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the TP-Link TC-7610 DOCSIS 3.0 Cable Modem TC-7610. User manuals are also available on the TP-Link website under Computers & Solutions - Networking - Modems.
