User manual TP-Link TL-WR741ND 150Mbps Wireless N Router TL-WR741ND

Operating instructions and pdf manual for use - TP-Link TL-WR741ND 150Mbps Wireless N Router TL-WR741ND User manual, User manual TP-Link TL-WR741ND 150Mbps Wireless N Router TL-WR741ND, TP-Link, TL-WR741ND, 150Mbps, Wireless, N, Router, TL-WR741ND,


User manual for TP-Link TL-WR741ND 150Mbps Wireless N Router TL-WR741ND

TP-Link TL-WR741ND 150Mbps Wireless N Router TL-WR741ND
  • Manufacturer: TP-Link
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Wireless Routers
  • Safety instructions
  • Startup and operation of the wireless routers
  • Tips for setting up your TP-Link
  • Settings and expert assistance
  • Contact TP-Link service
  • Troubleshooting
  • Warranty information
  • Price: 20 USD
We recommend checking out our discussion threads on the TP-Link TL-WR741ND 150Mbps Wireless N Router TL-WR741ND, which address similar problems with connecting and setting up Wireless Routers TP-Link.



User manual for the TP-Link TL-WR741ND 150Mbps Wireless N Router TL-WR741ND

The user manual for the TP-Link TL-WR741ND 150Mbps Wireless N Router TL-WR741ND provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Routers.

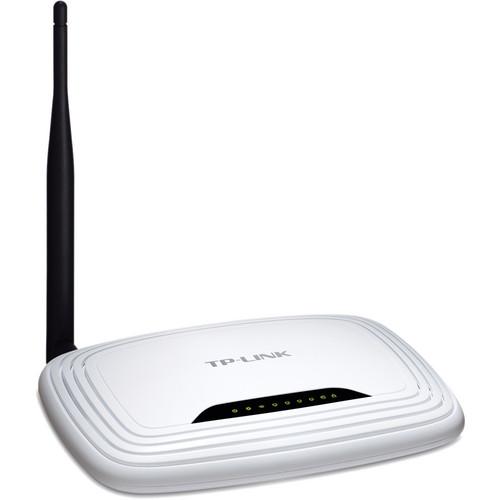

The TL-WR741ND 150Mbps Wireless N Router from TP-Link includes both wired and wireless connectivity. It's designed for office, small business, and home networking, and features 802.11b/g/n Wi-Fi technology with transfer speeds up to 150Mbps. It delivers fluid operation of applications that consume lots of bandwidth--from virtually anywhere in your home or office--and uses the 2.4GHz frequency.

Clear Channel Assessment (CCA) technology automatically avoids channel conflicts and takes advantage of channel binding for enhanced wireless performance. Additionally, the WDS wireless bridge provides seamless interconnection of access points for wireless network expansion.

The TL-WR741ND provides personal and enterprise WPA/WPA2 security encryptions, which are enabled easily at the push of a Quick Security Setup (QSS) button. The router supports IP QoS functionality, allowing optimal utilization of bandwidth and control over congestion. You determine how much bandwidth is allotted to each PC, in order to prevent non-critical applications from degrading network performance.

Users of all levels will find the router easy to set up. Just insert the CD and run the Easy Setup Assistant for quick, hassle-free installation. The TL-WR741ND is compatible with Windows, Mac, NetWare, UNIX and Linux operating systems.
If you own a TP-Link wireless routers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the TP-Link TL-WR741ND 150Mbps Wireless N Router TL-WR741ND in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for TP-Link TL-WR741ND 150Mbps Wireless N Router TL-WR741NDDownload user manual for TP-Link TL-WR741ND 150Mbps Wireless N Router TL-WR741ND
(PDF file, 3.27 MB)
Additional parameters of the TP-Link TL-WR741ND 150Mbps Wireless N Router TL-WR741ND:
Base Station
Standards IEEE 802.11b/g/n
Network Protocol Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access), BigPond Internet access
DHCP: server, client, DHCP client list, address reservation
Data Rate 11n: up to 150 Mbps (dynamic)
11g: up to 54 Mbps (dynamic)
11b: up to 11 Mbps (dynamic)
Frequency Range 2.4-2.4835 GHz
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Channel Support Not specified by manufacturer
Security Quick Security Setup (QSS) button
64/128/152-bit WEP / WPA / WPA2 / WPA-PSK / WPA2-PSK
Firewall Security DoS, SPI firewall
IP address, MAC address and domain filters
IP and MAC address binding
Wireless Functions Enable/disable wireless radio, WDS Bridge, WMM, wireless statistics
Antenna 5.0 dBi detachable omni-directional (RP-SMA)
Transmitted Power <20 dBm (EIRP)
Reception Sensitivity 130 Mbps: -68 dBm @ 10% PER
108 Mbps: -68 dBm @ 10% PER
54 Mbps: -68 dBm@ 10 % PER
11 Mbps: -85 dBm @ 8% PER
6.0 Mbps: -88 dBm @ 10% PER
1.0 Mbps: -90 dBm @ 8% PER
Power Over Ethernet Not specified by manufacturer
Ports 4x 10/100 Mbps LAN ports
1x 10/100 Mbps WAN port
Buttons Reset, power on/off, Quick Security Setup
General
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7
Mac OS X
NetWare
UNIX
Linux
Power Requirements External power supply (included): 9.0 VDC, 0.6 A
Environmental Requirements Operating Temperature: 32 to 104°F (0 to 40°C)
Storage Temperature: -40 to 70°C (-40 to 158°F)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 5~90% non-condensing
Certifications CE, FCC, RoHS
Dimensions 6.9 x 4.6 x 1.3" (17.4 x 11.8 x 3.3 cm)
Weight Not specified by manufacturer
Packaging Info
Package Weight 1.25 lb
Box Dimensions (LxWxH) 11.2 x 8.8 x 2.6"
The user manual for the TP-Link TL-WR741ND 150Mbps Wireless N Router TL-WR741ND can be downloaded in .pdf format if it did not come with your new wireless routers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other TP-Link users keep a unique electronic library for TP-Link wireless routerss, where you can use our link to download the user manual for the TP-Link TL-WR741ND 150Mbps Wireless N Router TL-WR741ND.

The user manual lists all of the functions of the TP-Link TL-WR741ND 150Mbps Wireless N Router TL-WR741ND, all the basic and advanced features and tells you how to use the wireless routers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from TP-Link service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the TP-Link TL-WR741ND 150Mbps Wireless N Router TL-WR741ND. User manuals are also available on the TP-Link website under Computers & Solutions - Networking - Wireless Routers.
