User manual TRENDnet TEW-823DRU Dual-Band Wireless AC1750 Gigabit TEW-823DRU

Operating instructions and pdf manual for use - TRENDnet TEW-823DRU Dual-Band Wireless AC1750 Gigabit TEW-823DRU User manual, User manual TRENDnet TEW-823DRU Dual-Band Wireless AC1750 Gigabit TEW-823DRU, TRENDnet, TEW-823DRU, Dual-Band, Wireless, A


User manual for TRENDnet TEW-823DRU Dual-Band Wireless AC1750 Gigabit TEW-823DRU

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
TRENDnet TEW-823DRU Dual-Band Wireless AC1750 Gigabit TEW-823DRU
  • Manufacturer: TRENDnet
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Wireless Routers
  • Safety instructions
  • Startup and operation of the wireless routers
  • Tips for setting up your TRENDnet
  • Settings and expert assistance
  • Contact TRENDnet service
  • Troubleshooting
  • Warranty information
  • Price: 75 USD
We recommend checking out our discussion threads on the TRENDnet TEW-823DRU Dual-Band Wireless AC1750 Gigabit TEW-823DRU, which address similar problems with connecting and setting up Wireless Routers TRENDnet.



User manual for the TRENDnet TEW-823DRU Dual-Band Wireless AC1750 Gigabit TEW-823DRU

The user manual for the TRENDnet TEW-823DRU Dual-Band Wireless AC1750 Gigabit TEW-823DRU provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Routers.

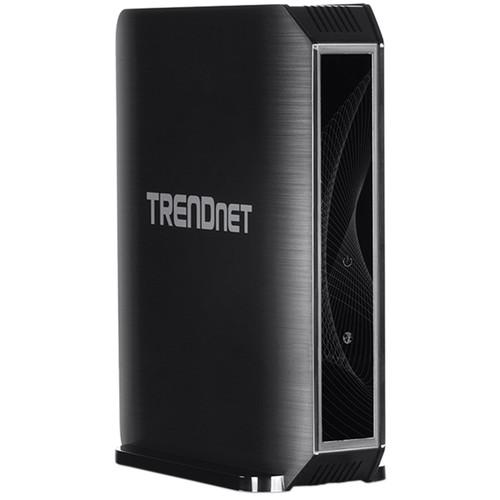

Stream video, download large files, and more with the TEW-823DRU Dual-Band Wireless AC1750 Gigabit Router from TRENDnet. This dual-band router operates on both the 2.4 GHz and 5 GHz frequencies and supports the 802.11ac networking standard allowing for wireless data transfer rates of up to 1750 Mbps. Combine enhanced data transfer rates with integrated beamforming technology and the wireless connection isn't only fast, it's also reliable and stable. Securing and configuring the wireless network has been simplified as this router comes pre-encrypted eliminating the need to setup a Wi-Fi password. Additional security features include guest network access to provide users limited access to the network and parental controls to place restrictions on types of content and websites that can be viewed.

Along with enhanced Wi-Fi support, the TEW-823DRU also comes equipped with four Gigabit Ethernet LAN and one Gigabit Ethernet WAN port for a fast, reliable, wired Internet connection. The built-in USB share port is designed to support USB compatible flash and storage drives. Simply plug in your storage device and you can make your files accessible to users throughout the network.
If you own a TRENDnet wireless routers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the TRENDnet TEW-823DRU Dual-Band Wireless AC1750 Gigabit TEW-823DRU in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for TRENDnet TEW-823DRU Dual-Band Wireless AC1750 Gigabit TEW-823DRUDownload user manual for TRENDnet TEW-823DRU Dual-Band Wireless AC1750 Gigabit TEW-823DRU
(PDF file, 1.73 MB)
Additional parameters of the TRENDnet TEW-823DRU Dual-Band Wireless AC1750 Gigabit TEW-823DRU:
Specifications
Standards IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3az
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (2.4 GHz 450 Mbps, 5 GHz up to 450 Mbps)
IEEE 802.11ac (draft 2.0, up to 1300 Mbps)
Hardware Interface 4 x Gigabit LAN ports
1 x Gigabit WAN port
1 x USB 2.0 (Storage FTP, Samba)
Power switch
WPS button
Reset button
LED indicator
Access Control Wireless encryption up to WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
Firewall: NAT, SPI, Virtual Server, Special Applications, Gaming, DMZ Host, allow/deny ping request from Internet
ALG: PPTP/L2TP/IPsec VPN Passthrough, TFTP/FTP/RTSP/SIP/H.323 Passthrough
Parental (Access) Controls: MAC, URL, IP Filter
Quality of Service (QoS) WMM
Inbound/outbound 5 priority queues
Internet Connection Types Dynamic IP (DHCP)
Static IP (Fixed)
PPPoE (Dynamic IP/Static IP)
PPTP (Dynamic IP/Static IP)
L2TP(Dynamic IP/Static IP)
Russia PPPoE (Dynamic IP/Static IP)
Russia PPTP (Dynamic IP/Static IP)
Russia L2TP (Dynamic IP/Static IP)
IPv6 (Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE, 6to4)
Management/Monitoring Local/remote web based management
Upgrade firmware
Backup/restore configuration
Internal logging
Reboot
Restore to factory defaults
Ping test
Routing Static
Dynamic (RIP v1/2)
Frequency 2.412 - 2.472 GHz
5.180 - 5.825 GHz
Modulation 802.11b: CCK, DQPSK, DBPSK
802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
Media Access Protocol CSMA/CA with ACK
Antenna Gain 2.4 GHz: 3 x 2 dBi (max.) internal
5 GHz: 3 x 3 dBi (max.) internal
Wireless Output Power/Receiving Sensitivity 802.11a: 20 dBm (max.)/-65 dBm (typical) @ 54 Mbps
802.11b: 23 dBm (max.)/-83 dBm (typical) @ 11 Mbps
802.11g: 23 dBm (max.)/-65 dBm (typical) @ 54 Mbps
802.11n (2.4 GHz): 22 dBm (max.)/-61 dBm (typical) @ 450 Mbps
802.11n (5 GHz): 20 dBm (max.)/-61 dBm (typical) @ 450 Mbps
802.11ac: 20 dBm (max.)/-51 dBm (typical) @ 1300 Mbps
Wireless Channels 2.4 GHz: FCC: 1-11; ETSI: 1-13
5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165; ETSI: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140
Power Input: 100 - 240 V AC, 50 - 60 Hz, 0.8 A
Output: 12 V DC, 2 A external power adapter
Consumption: 18 Watts max.
Temperature & Humidity Operating Temperature: 32 to 104°F / 0 to 40°C
Operating Humidity: Max. 95% non-condensing
Certifications CE, FCC
Dimensions 2.8 x 6.0 x 7.5" / 72 x 151 x 191 mm
Weight 14.4 oz / 408 g
Packaging Info
Package Weight 2.0 lb
Box Dimensions (LxWxH) 8.6 x 6.8 x 4.7"
TRENDnet TEW-823DRU AC1750 Dual Band Wireless Router
The user manual for the TRENDnet TEW-823DRU Dual-Band Wireless AC1750 Gigabit TEW-823DRU can be downloaded in .pdf format if it did not come with your new wireless routers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other TRENDnet users keep a unique electronic library for TRENDnet wireless routerss, where you can use our link to download the user manual for the TRENDnet TEW-823DRU Dual-Band Wireless AC1750 Gigabit TEW-823DRU.

The user manual lists all of the functions of the TRENDnet TEW-823DRU Dual-Band Wireless AC1750 Gigabit TEW-823DRU, all the basic and advanced features and tells you how to use the wireless routers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from TRENDnet service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the TRENDnet TEW-823DRU Dual-Band Wireless AC1750 Gigabit TEW-823DRU. User manuals are also available on the TRENDnet website under Computers & Solutions - Networking - Wireless Routers.
