The user manual for the Universal Audio Apollo 8 QUAD - Thunderbolt 2 APOLLO 8 QUAD provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - DSP Accelerators.

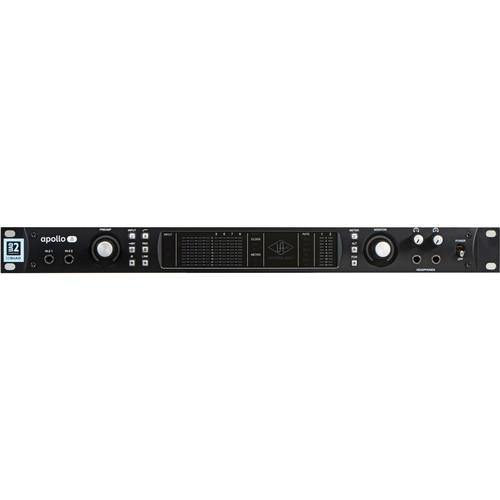

The Apollo 8 QUAD from Universal Audio is an 18 x 24 Thunderbolt-ready computer audio interface that improves upon the original Apollo with better total harmonic distortion, dynamic range, and signal-to-noise specifications. Delivering the sound, feel and flow of analog recording, the interface combines high-resolution analog design with on-board UAD Processing, allowing music producers and performers to track audio through a range of classic UAD analog emulation plug-ins in real-time.

Designed to perform a central role in a modern Mac-based studio, the unit delivers 24-bit/192 kHz resolution, which ultimately translates into high-resolution analog audio. The interface features four premium microphone preamps with Unison integration for UAD preamp and pedal plug-ins, which allows true-to-life performance including impedance matching, gain staging, and component-level circuit behaviors. Each mic pre features a switchable low cut filter, 48V phantom power, pad, polarity inversion, and stereo linking.

While the converters are open and transparent, the unit can quickly deliver a wide range of classic analog tones and color via its built-in UAD Processing. The on-board QUAD Core processing provides up to a sub-2 millisecond latency that allows for quickly monitoring, auditioning, and "printing" audio using classic analog emulations from Ampex, Lexicon, Manley, Neve, Roland, SSL, Studer, and more.

Apollo's Core Audio drivers ensure compatibility with all major DAWs, including Pro Tools, Logic Pro, Cubase, Live, and more. The included Console 2.0 application provides control and recall of all interface and UAD plug-in settings including channel strip presets, drag & drop functionality, and dynamically resizable windows.

The Apollo 8 offers a comprehensive monitor solution with dedicated front panel controls for Alt Speakers, Dim, and Mono functions, as well as input and output metering capabilities. A total of four Apollos and six total UAD-2 devices can be combined via the included Apollo Expanded software, allowing Thunderbolt users the ability to expand their I/O and DSP. The Apollo 8 ships with a power supply, IEC power cord, and four rack-mount screws.
If you own a Universal Audio dsp accelerators and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Universal Audio Apollo 8 QUAD - Thunderbolt 2 APOLLO 8 QUAD in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Universal Audio Apollo 8 QUAD - Thunderbolt 2 APOLLO 8 QUAD:
Specifications
    Converters 24-bit
    Sample Rates 44.1, 48, 88.2, 96, 176.4 and 192 kHz
    Analog Input Microphone/Line: 4 x Combo XLR / 1/4"/6.35 mm
    2 x 1/4" TS phone Hi-Z
    4 x 1/4" TRS phone Line
    Analog Output 8 x 1/4" TRS phone Line
    2 x 1/4" TRS phone Monitor
    2 x 1/4" TRS phone Headphone
    Digital Input 1 x RCA S/PDIF coaxial (AES/EBU software selectable)
    2 x TOSLink ADAT optical (S/MUX support)
    Digital Output 1 x RCA S/PDIF coaxial (AES/EBU software selectable)
    2 x TOSLink ADAT optical (S/MUX support)
    Other Connectors 2 x BNC Word-Clock I/O
    2 x Thunderbolt
    MIDI In/Out No
    Wordclock I/O Connector Type: BNC
    Lock Range: ±0.5% of any supported sample rate
    Word Clock Input Termination: 75 Ohms, switchable
    Synchronization Sources: Internal, word clock, S/PDIF, ADAT
    Headphone Output Dual Independent: 1/4" TRS
    Frequency Response 20 Hz to 20 kHz, ±0.1 dB
    Dynamic Range Microphone: 120 dB, A-weighted
    Hi-Z Inputs: 118 dB, A-weighted
    Line Inputs: 120 dB, A-weighted
    Line Outputs: 121 dB, A-weighted
    Monitor Out: 121 dB, A-weighted
    Headphone: 118 dB, A-weighted
    Signal to Noise Ratio Microphone: 120 dB, A-weighted
    Hi-Z Inputs: 118 dB, A-weighted
    Line Inputs: 120 dB, A-weighted
    Line Outputs: 121 dB, A-weighted
    Monitor Out: 121 dB, A-weighted
    Headphone: 118 dB, A-weighted
    THD + N Microphone: -110 dBFS
    Hi-Z Inputs: -101.5 dBFS
    Line Inputs: -110 dBFS
    Line Outputs: -110 dBFS
    Monitor Out: -110 dBFS
    Headphone: -101 dB
    Common Mode Rejection Microphone: 73 dB (10' cable)
    Line Inputs: 60 dB (10' cable)
    Input Impedance Default Microphone Input Impedance; 5.4 kOhms (variable via Unison plug-ins)
    Hi-Z Input Impedance: 1 MOhms (variable via Unison plug-ins)
    Line Input Impedance: 10 kOhms
    Output Impedance Line Output Impedance: 100 ohms
    Monitor Output Impedance: 100 ohms
    Gain Range Microphone: +10 to +65 dB
    Hi-Z: +10 to +65 dB
    Line Input (1-4): +10 to +65 dB (Line Input Gain = ON)
    Line Input (5-8) Gain (selectable per input): +4 or -10 dBV
    Input Pad Pad Attenuation: 20 dB (switchable per input)
    Maximum Input/Output Level Microphone Input Level: +25 dBu (minimum gain, pad engaged)
    Hi-Z Input Level: +12 dBu
    Line Input Level (1-4): +20.2 dBu
    Line Input Level (5-8) (+4 dBu setting) : +20.2 dBu
    Line Input Level (5-8) (-10 dBV setting): +6.2 dBV (unbalanced)
    Line Output Level: +20.2 dBu
    Monitor Output Level: +20.2 dBu
    Headphone Output Power: 160 mW into 300 ohm load
    Stereo Level Balance Line Outputs (1-8): ±0.05 dB
    Monitor Outputs: ±0.01 dB
    Power Requirements Power Supplies: External AC to DC power supply, level V compliant
    AC Input Connector Type: IEC male
    AC Requirements: 100 to 240 VAC, 50/60 Hz
    DC Connector Type: XLR 4-Pin locking male (Neutrik P/N NC4MDM3-H)
    DC Requirements: 12 VDC, ±5%
    Maximum Power Consumption: 50 W
    System Requirements Thunderbolt Systems (UAD Powered Plug-Ins version 8)

    Apple Mac computer with available Thunderbolt or Thunderbolt 2 port
    Mac OS X 10.8.5 Mountain Lion, 10.9.x Mavericks, or 10.10.x Yosemite
    4 GB available disk space
    Internet connection to download software and authorize UAD plug-ins
    Compatible VST, Audio Units, RTAS, or AAX 64 plug-in host DAW software
    Thunderbolt cable (sold separately)
    Specialties Analog Round Trip Latency: 1.1 ms @ 96 kHz (including 4 serial UAD-2 plug-ins via Console application)
    S/MUX assignment allows for 8-channels @ 88.2/96 kHz and 4-channels @ 176.4/192 kHz
    32/64-bit device drivers
    Dimensions (W × H × D) 19 x 12.1 x 1.75" / 483 x 307 x 45 mm
    Weight 9.1 lb / 4.1 kg
    Packaging Info
    Package Weight 17.2 lb
    Box Dimensions (LxWxH) 24.0 x 17.0 x 8.0"
