User manual Used Nikon D610 DSLR Camera (Body Only) 1540B

Operating instructions and pdf manual for use - Used Nikon D610 DSLR Camera (Body Only) 1540B User manual, User manual Used Nikon D610 DSLR Camera (Body Only) 1540B, Used, Nikon, D610, DSLR, Camera, Body, Only, 1540B, Video


User manual for Used Nikon D610 DSLR Camera (Body Only) 1540B

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Used Nikon  D610 DSLR Camera (Body Only) 1540B
  • Manufacturer: Nikon
  • Basic description and contents of package
  • Product classification: - Digital Photography - SLR Digital Cameras
  • Safety instructions
  • Startup and operation of the slr digital cameras
  • Tips for setting up your Nikon
  • Settings and expert assistance
  • Contact Nikon service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Used Nikon D610 DSLR Camera (Body Only) 1540B, which address similar problems with connecting and setting up SLR Digital Cameras Nikon.



User manual for the Used Nikon D610 DSLR Camera (Body Only) 1540B

The user manual for the Used Nikon D610 DSLR Camera (Body Only) 1540B provides necessary instructions for the proper use of the product - Digital Photography - SLR Digital Cameras.

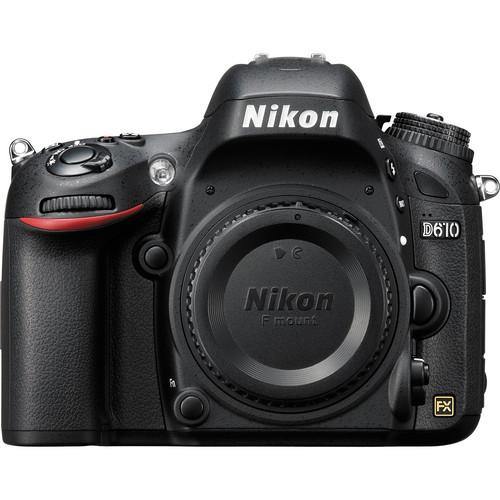

The Nikon D610 DSLR Camera features a full-frame, FX-format 24.3 megapixel CMOS sensor and EXPEED 3 image processor to produce high-resolution still imagery and full HD 1080p video with notable image detail and low-light sensitivity to an expandable ISO 25600. The sensor and processor work together to enable high image quality with a wide dynamic range and high signal-to-noise ratio that produces both smooth color and tonal gradations with low noise levels for enhanced overall clarity. These two technologies also combine to provide a wealth of speed throughout the D610, including a continuous shooting rate of 6 fps and a quiet shooting mode that allows the camera to record sequential imagery without the mirror raising or lowering.

A Multi-CAM 4800 AF sensor is integrated into the camera's design and produces fast autofocus speeds using a 39-point array to precisely acquire focus in a wide array of lighting conditions. Seven of the central AF points are compatible with f/8 or faster lenses, which greatly enhances the autofocus performance with longer, telephoto lenses used in combination with teleconverters. When recording movies or working in live view, a contrast-detection focusing method works to continuously deliver accurate focus with subject-tracking and face-detection capabilities using the full-time servo mode.

Full HD 1080p video is supported up to 30 fps in the MPEG-4 AVC/H.264 format and manual control over the ISO, shutter speed, and aperture is possible for optimized control over the look and feel of movies. Uncompressed recording is possible with an optional external recorder connected via the HDMI port and, additionally, both headphone and microphone ports are available for refined control over recorded sound.

Extending the D610's connectivity, an accessory terminal is compatible with the optional WU-1b Wireless Mobile Adapter and GP-1A GPS Unit for wireless image sharing, remote camera control, and geotagging capabilities.
If you own a Nikon slr digital cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Used Nikon D610 DSLR Camera (Body Only) 1540B in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Used Nikon  D610 DSLR Camera (Body Only) 1540BDownload user manual for Used Nikon D610 DSLR Camera (Body Only) 1540B
(PDF file, 25.79 MB)
Additional parameters of the Used Nikon D610 DSLR Camera (Body Only) 1540B:
Specifications
    Imaging
    Lens Mount Nikon F
    Camera Format Full-Frame (1.0x Crop Factor)
    Pixels Actual: 24.7 Megapixel
    Effective: 24.3 Megapixel
    Max Resolution 6016 x 4016
    Aspect Ratio 3:2, 16:9
    Sensor Type / Size CMOS, 35.9 x 24 mm
    File Formats Still Images: JPEG, RAW
    Movies: MOV, MPEG-4 AVC/H.264
    Audio: Linear PCM
    Bit Depth 14-bit
    Dust Reduction System Yes
    Memory Card Type SD
    SDHC
    SDXC
    Focus Control
    Focus Type Auto & Manual
    Focus Mode Continuous-servo AF (C), Full-time Servo (F), Manual Focus (M), Single-servo AF (S)
    Autofocus Points Phase Detection:39
    Viewfinder/Display
    Viewfinder Type Optical
    Viewfinder Coverage 100%
    Viewfinder Magnification Approx. 0.7x
    Diopter Adjustment - 3 to +1 m
    Display Screen 3.2" Rear Screen   LCD (921,000)
    Screen Coverage 100%
    Diagonal Angle of View 170.0°
    Exposure Control
    ISO Sensitivity Auto, 100-6400 (Extended Mode: 50-25600)
    Shutter Type: Electronic & Mechanical
    Speed: 30 - 1/4000 second,  Bulb Mode
    Remote Control MC-DC2 (Optional)
    Mirror Lock-Up Yes
    Metering Method 3D Color Matrix Metering, Center-weighted average metering, Spot metering
    Exposure Modes Modes: Aperture Priority, Manual, Programmed Auto, Shutter Priority
    Metering Range: EV 0.0 - EV 20.0
    Compensation: -5 EV to +5 EV (in 1/3, 1/2 or 1 EV steps)
    White Balance Modes Auto, Cloudy, Color Temperature, Direct Sunlight, Flash, Fluorescent, Incandescent, Preset Manual, Shade
    Flash
    Flash Modes 1st Curtain Sync
    Red-eye Reduction
    Second-curtain Sync
    Slow Sync
    Slow Sync/Red-eye Reduction
    Built-in Flash Yes
    Guide No. 39' (11.89 m) ISO100
    Max Sync Speed 1 / 200 seconds
    Flash Compensation -3 EV to +1 EV (in 1/3, 1/2 or 1 EV steps)
    Dedicated Flash System iTTL Groups: 2 Channels: 3
    External Flash Connection Hot Shoe, Wireless
    AV Recording
    Video Recording Yes
    File Size 1920 x 1080p (Full HD)
    1280 x 720p (HD)
    Aspect Ratio 16:9
    Frame Rate @ 1920 x 1080: 30 fps, 25 fps, 24 fps
    @ 1280 x 720: 60 fps, 50 fps, 30 fps, 25 fps
    Exposure Control Manual: Shutter Speed, Aperture, ISO
    Focus Auto
    Manual
    Continuous Auto
    Video Clip Length 1920 x 1080
    29 min. (59 MB / min.)
    Audio Recording Built-in Mic: With Still Images & Video, Stereo
    Optional External Mic: With Still Images & Video
    Performance
    Continuous Shooting Up to 6 fps
    Start-up Time 0.13 seconds
    Shutter Lag 0.052 seconds
    Self Timer 2 seconds, 5 seconds, 10 seconds, 20 seconds
    Number of Shots: 1-9
    Interval Recording Yes
    Connectivity 1/8" Headphone, 1/8" Microphone, HDMI C (Mini), USB 2.0
    Wi-Fi Capable Yes (with Optional Transmitter)
    Power
    Battery 1x EN-EL15 Rechargeable Lithium-ion Battery Pack, 7 VDC, 1900 mAh
    AC Power Adapter EH-5b (Optional)
    Operating/Storage Temperature Operating
    32 to 104°F (0 to 40°C)
    Physical
    Dimensions (WxHxD) 5.6 x 4.4 x 3.2" / 141.0 x 113.0 x 82.0 mm
    Weight 1.67 lb / 760 g camera body only
    Packaging Info
    Package Weight 5.05 lb
    Box Dimensions (LxWxH) 11.1 x 8.4 x 6.3"
    The user manual for the Used Nikon D610 DSLR Camera (Body Only) 1540B can be downloaded in .pdf format if it did not come with your new slr digital cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Nikon users keep a unique electronic library for Nikon slr digital camerass, where you can use our link to download the user manual for the Used Nikon D610 DSLR Camera (Body Only) 1540B.

    The user manual lists all of the functions of the Used Nikon D610 DSLR Camera (Body Only) 1540B, all the basic and advanced features and tells you how to use the slr digital cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Nikon service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Used Nikon D610 DSLR Camera (Body Only) 1540B. User manuals are also available on the Nikon website under - Digital Photography - SLR Digital Cameras.
