User manual Used Roland LVS-800 Video Mix/Live Switcher LVS-800B

Operating instructions and pdf manual for use - Used Roland LVS-800 Video Mix/Live Switcher LVS-800B User manual, User manual Used Roland LVS-800 Video Mix/Live Switcher LVS-800B, Used, Roland, LVS-800, Video, Mix/Live, Switcher, LVS-800B,


User manual for Used Roland LVS-800 Video Mix/Live Switcher LVS-800B

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Used Roland LVS-800 Video Mix/Live Switcher LVS-800B
  • Manufacturer: Roland
  • Basic description and contents of package
  • Product classification: - Refurbished - Production Switchers
  • Safety instructions
  • Startup and operation of the production switchers
  • Tips for setting up your Roland
  • Settings and expert assistance
  • Contact Roland service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Used Roland LVS-800 Video Mix/Live Switcher LVS-800B, which address similar problems with connecting and setting up Production Switchers Roland.



User manual for the Used Roland LVS-800 Video Mix/Live Switcher LVS-800B

The user manual for the Used Roland LVS-800 Video Mix/Live Switcher LVS-800B provides necessary instructions for the proper use of the product - Refurbished - Production Switchers.

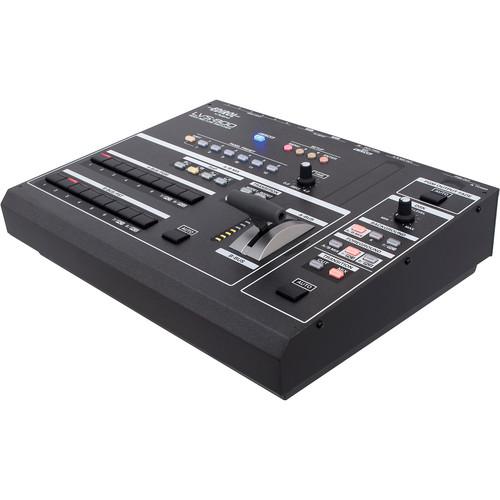

The LVS-800 Video Mix/Live Switcher from Edirol/Roland is an eight-channel standard definition video mixer. It is well suited for use in live events or installations demanding stability, ease of use, and professional connectivity. Other features include a downstream keyer (DSK), dual computer inputs, and multiple outputs. Use this solution in a variety of settings and applications, including corporate settings, houses of worship, schools, and event production, among others.
If you own a Roland production switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Used Roland LVS-800 Video Mix/Live Switcher LVS-800B in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Used Roland LVS-800 Video Mix/Live Switcher LVS-800BDownload user manual for Used Roland LVS-800 Video Mix/Live Switcher LVS-800B
(PDF file, 6.93 MB)
Additional parameters of the Used Roland LVS-800 Video Mix/Live Switcher LVS-800B:
Inputs Video (composite):
BNC type x 6 (Ch 1 - 6)
S-Video:
4-pin mini DIN type x 4 (Ch 5 - 8)
PC-RGB:
D-SUB 15-pin shrink type x 2 (Ch 7 - 8)
* S-Video input takes priority for channels 5-8
Outputs A/B MIX:
4-pin mini DIN type x 1,
BNC type x 2 + Preview x 1 (*1)
PGM-OUT:
4-pin mini DIN type x 1,
BNC type x 2 + Preview x 1 (*2)
*1: Preview displays one of input channel 1 to 8 video and on-screen menu.
*2: Preview displays one of input channel 6 to 8 video and A/B MIX OUT video
Monitor Output: Video (composite) BNC type x 8 (Ch 1 - 8)
Formats NTSC or PAL:
ITU601
PC-RGB:
640 x 480/120Hz, 800 x 600/120Hz, 832 x 624/80Hz,
1024 x 768/80Hz, 1152 x 864/80Hz, 1152 x 870/75Hz,
1280 x 1024/75Hz, 1600 x 1200/60Hz
(RGB VH: positive/negative logic)
* VESA DMT Version 1.0 Revision 10 conform
* The refresh rate is the maximum value of each resolution
Sampling Rate Video 4:2:2 (Y: B-Y: R-Y), 8bit, 13.5MHz
Sync Frame Synchronizer: 4 systems
Impedance INPUT LEVEL/IMPEDANCE
Video (Composite):
1.0Vp-p, 75
S-Video:
<Luminance Signal> 1.0Vp-p, 75
<Chroma Signal> 0.286mVp-p, 75 (NTSC)/0.3mVp-p, 75 (PAL)
PC-RGB:
0.7Vp-p, 75 (H, V: 5V TTL)

OUTPUT LEVEL/IMPEDANCE
Video (Composite):
1.0Vp-p, 75
S-Video:
<Luminance Signal> 1.0Vp-p, 75
<Chroma Signal> 0.286mVp-p, 75 (NTSC)/0.3mVp-p, 75 (PAL)

Controls MIDI(IN, OUT/THRU)
RS-232C(D-SUB 9-pin type)
Tally D-sub 15pin shrink type, maximum Input = 12V, 200mA open collector type
Power Power: AC adapter
Current Draw: 2200mA
Dimensions (HxWxD) 5.38 x 14.81 x 12.44" (136 x 376 x 315mm)
Weight 9 lbs 8 oz (4.3kg)
Packaging Info
Package Weight 14.25 lb
Box Dimensions (LxWxH) 18.8 x 18.3 x 8.4"
The user manual for the Used Roland LVS-800 Video Mix/Live Switcher LVS-800B can be downloaded in .pdf format if it did not come with your new production switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Roland users keep a unique electronic library for Roland production switcherss, where you can use our link to download the user manual for the Used Roland LVS-800 Video Mix/Live Switcher LVS-800B.

The user manual lists all of the functions of the Used Roland LVS-800 Video Mix/Live Switcher LVS-800B, all the basic and advanced features and tells you how to use the production switchers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Roland service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Used Roland LVS-800 Video Mix/Live Switcher LVS-800B. User manuals are also available on the Roland website under - Refurbished - Production Switchers.
