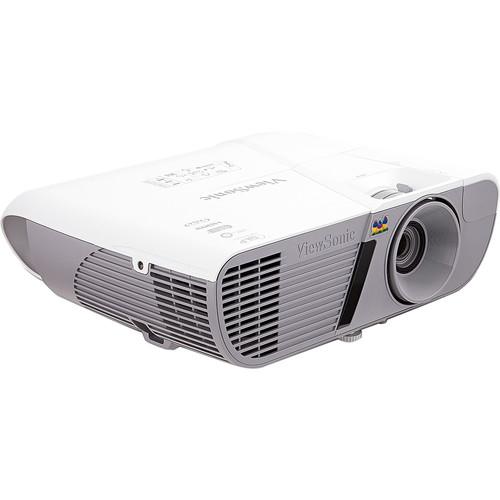

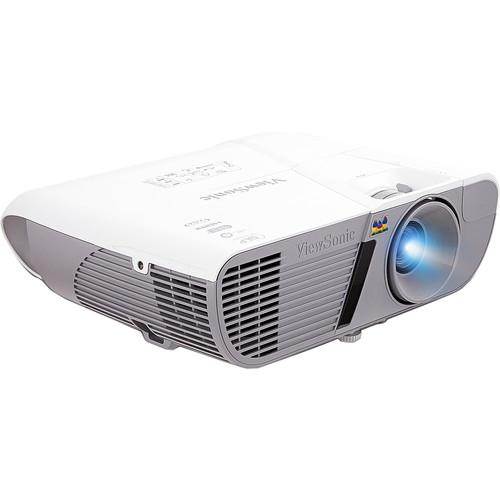

Click to enlarge image
|
We recommend checking out our discussion threads on the ViewSonic PJD6552LW 3500-Lumen WXGA DLP Projector PJD6552LW,
which address similar problems with connecting and setting up Multimedia Projectors ViewSonic.
|
User manual for the ViewSonic PJD6552LW 3500-Lumen WXGA DLP Projector PJD6552LW
The user manual for the ViewSonic PJD6552LW 3500-Lumen WXGA DLP Projector PJD6552LW provides
necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.
Designed for education, business, and home use, the Viewsonic PJD6552LW 3500-Lumen WXGA DLP Projector features a 1280 x 800 native resolution to produce clear, detailed images and text at most sizes. Its 3500 lumens of brightness combined with its 22,000:1 dynamic contrast ratio will help ensure that those images are visible even in rooms where ambient light can't be controlled. The projector's 1.21 to 1.57:1 throw ratio allows for a wide range of placement options.
The PJD6552LW is prepared for nearly any source, thanks to its RCA composite, two HDMI, and two VGA inputs. One of the HDMI inputs is MHL-compatible for simple connectivity with mobile devices. The projector has a VGA output for daisy-chaining multiple projectors to display the same source and a built-in 10W speaker to eliminate the need for an external speaker setup. It is controllable via Ethernet, RS-232, and USB, and includes an IR remote control with a built-in laser pointer.
|
If you own a ViewSonic multimedia projectors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ViewSonic PJD6552LW 3500-Lumen WXGA DLP Projector PJD6552LW in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the ViewSonic PJD6552LW 3500-Lumen WXGA DLP Projector PJD6552LW:
| Display System | 0.65" / 1.65 cm DMD DLP | | Native Resolution | WXGA - 1280 x 800 | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Format | NTSC 3.58, 4.43, M
PAL 60, B, D, G, H, I, M, N
SECAM B, D, G, L | | Pixels | 1,024,000 | | Brightness | 3500 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 22000:1 | | Color Range | 1.07 Billion | | Scan | Vertical: 15 - 102 kHz
Horizontal: 23 - 120 Hz | | Focus | Manual | | Zoom | Manual: 1.3x | | Throw Distance | 3.3 - 32.8' (1.0 - 10.0 m) | | Throw Ratio | 1.21 - 1.57:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm (Max Diagonal: 300" / 762.00 cm) | | Keystone Correction | Yes, Vertical: ± 30°
Yes, Horizontal: ± 30° | | Ceiling Mountable | Yes | | Built-in Speaker | Yes, 10 W (Mono) | | Inputs/Outputs | 2x 1/8" (3.5 mm) Mini Audio (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x 15-pin VGA Video (Output)
2x 15-pin VGA Video (Input)
1x RCA Composite Video (Input)
1x RS-232C Control (Input)
1x HDMI Audio/Video (Input)
1x HDMI with MHL Support Audio/Video (Input)
1x USB Control (Input)
1x Ethernet LAN (Input) | | Wireless LAN | None | | Replacement Lamp | RLC-098 | | Watts | 210 W | | Life | Normal Mode: 4000 Hours
Eco Mode: 10000 Hours | | Fan Noise | Normal Mode: 32 dB
Eco Mode: 27 dB | | Remote Control | Yes | | Power Requirements | 100-240 VAC, 50/60 Hz | | Power Consumption | Maximum: 330 W
Standby Mode: <.5 W | | Altitude | 0 - 6000' (0 - 1828 m) | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 10 - 90% | | Dimensions (WxHxD) | 12.4 x 9.0 x 4.1" / 31.5 x 22.9 x 10.4 cm | | Weight | 5.1 lb / 2.31 kg | | Package Weight | 8.9 lb | | Box Dimensions (LxWxH) | 17.6 x 16.3 x 8.9" | |
The user manual for the ViewSonic PJD6552LW 3500-Lumen WXGA DLP Projector PJD6552LW can be downloaded in .pdf
format if it did not come with your new multimedia projectors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other ViewSonic users keep a unique electronic library
for ViewSonic multimedia projectorss,
where you can use our link to download the user manual for the ViewSonic PJD6552LW 3500-Lumen WXGA DLP Projector PJD6552LW.
The user manual lists all of the functions of the ViewSonic PJD6552LW 3500-Lumen WXGA DLP Projector PJD6552LW,
all the basic and advanced features and tells you how to use the multimedia projectors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from ViewSonic service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the ViewSonic PJD6552LW 3500-Lumen WXGA DLP Projector PJD6552LW. User manuals are also
available on the ViewSonic website under A/V Presentation - Projectors - Multimedia Projectors.
