User manual for the ViewSonic TD2420 24" Widescreen LED Backlit LCD TD2420

The user manual for the ViewSonic TD2420 24" Widescreen LED Backlit LCD TD2420 provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

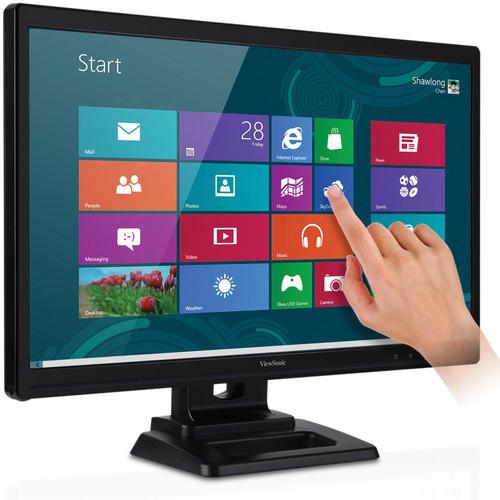

The TD2420 24" Widescreen LED Backlit LCD Multi-Touch Monitor from ViewSonic is a multi-touch monitor capable of recognizing two contact points simultaneously. This feature makes it possible to rotate and zoom with ease when viewing pictures, web pages and more. Along with the rotate and zoom functions, you can also scroll and tap the screen to easily navigate through the display.

This multi-touch monitor suits a variety of applications such as POS (point-of-sale) terminals, kiosks and information booths, education, and home entertainment. With a full HD 1920 x 1080 resolution and 5ms response time you benefit from enhanced picture quality along with reduced blur for fast moving videos and movies. The TD2420 also comes equipped with an anti-glare screen coating with 170° horizontal / 160° vertical viewing angles.
If you own a ViewSonic computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ViewSonic TD2420 24" Widescreen LED Backlit LCD TD2420 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for ViewSonic TD2420 24Download user manual for ViewSonic TD2420 24" Widescreen LED Backlit LCD TD2420
(PDF file, 0.96 MB)
Additional parameters of the ViewSonic TD2420 24" Widescreen LED Backlit LCD TD2420:
Specifications
    LCD Display
    Type 24" (23.6" viewable) Wide Color TFT Active Matrix LED
    Display Area 20.5" horizontal x 11.5" vertical; 23.6" diagonal
    Resolution 1920x1080
    Contrast Ratio 1000:1 (typ)
    Viewing Angles Horizontal: 170º
    Vertical: 160º
    Response Time 5ms (typ)
    Light Source White-light LED
    Brightness 200cd/m²
    Panel Surface Anti-glare, hard-coating (7H)
    Video Input
    Analog/Digital RGB analog (0.7 / 1.0 Vp-p, 75 ohms) / HDMI, DVI (TMDS, 100 ohms)
    Frequency Fh: 24~82kHz, Fv: 50~75Hz
    Sync Separate Sync
    Compatibility
    PC PC compatibles (Windows® 7 / 8 Operating System)
    Mac N/A
    Connectors
    Analog/Digital 15-pin mini D-sub (VGA) / DVI-D (with HDCP) HDMI
    USB N/A
    Power
    Voltage AC 100-240V (universal), 50 / 60Hz
    Consumption 25W (typ.)
    Eco Mode 22W (typ.)
    Power Save Mode 20W (typ.)
    Controls
    Basic Controls 1, 2, Down, Up, Power
    OSD Auto Image Adjust, Contrast/Brightness, Input Select, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall (See user guide for full OSD functionality)
    Operating Conditions
    Temperature 32 to 104ºF / 0-40ºC
    Humidity 20 to 90% (non-condensing)
    Tilt 20º~5º
    VESA Compatibility 100 x 100 mm
    Regulations CE,CB, BSMI, PSB, SASO, C-tick, e-standby, KC, UL/cUL, FCC-B (including ICES003), UL CoC, Mexico Energy, GOST-R/Hygienic, UkrSEPRO, TCO 5.2, Erp, CCC, China Energy, ENERGY STAR, EPEAT Silver, WEEE, RoHS, SVHC list
    Dimensions (WxHxD) With Stand: 21.9 x 16.6 x 6.9" / 555.9 x 421.9 x 174.8 mm
    Without Stand: 21.9 x 13.7 x 2.2" / 555.9 x 346.8 x 56.1 mm
    Weight With Stand: 6.6 lb / 3.0 kg
    Without Stand: 5.2 lb / 2.4 kg
    Packaging Info
    Package Weight 18.0 lb
    Box Dimensions (LxWxH) 24.0 x 19.5 x 6.0"
    The user manual for the ViewSonic TD2420 24" Widescreen LED Backlit LCD TD2420 can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ViewSonic users keep a unique electronic library for ViewSonic computer monitorss, where you can use our link to download the user manual for the ViewSonic TD2420 24" Widescreen LED Backlit LCD TD2420.

    The user manual lists all of the functions of the ViewSonic TD2420 24" Widescreen LED Backlit LCD TD2420, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ViewSonic service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ViewSonic TD2420 24" Widescreen LED Backlit LCD TD2420. User manuals are also available on the ViewSonic website under Computers & Solutions - Monitors & Displays - Computer Monitors.
