User manual ViewSonic VA1917A 19" Widescreen LED-Backlit LCD VA1917A

Operating instructions and pdf manual for use - ViewSonic VA1917A 19" Widescreen LED-Backlit LCD VA1917A User manual, User manual ViewSonic VA1917A 19" Widescreen LED-Backlit LCD VA1917A, ViewSonic, VA1917A, 19, Widescreen, LED-Backlit, LCD, VA1917


User manual for ViewSonic VA1917A 19" Widescreen LED-Backlit LCD VA1917A

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
ViewSonic VA1917A 19
  • Manufacturer: ViewSonic
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your ViewSonic
  • Settings and expert assistance
  • Contact ViewSonic service
  • Troubleshooting
  • Warranty information
  • Price: 70 USD
We recommend checking out our discussion threads on the ViewSonic VA1917A 19" Widescreen LED-Backlit LCD VA1917A, which address similar problems with connecting and setting up Computer Monitors ViewSonic.



User manual for the ViewSonic VA1917A 19" Widescreen LED-Backlit LCD VA1917A

The user manual for the ViewSonic VA1917A 19" Widescreen LED-Backlit LCD VA1917A provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

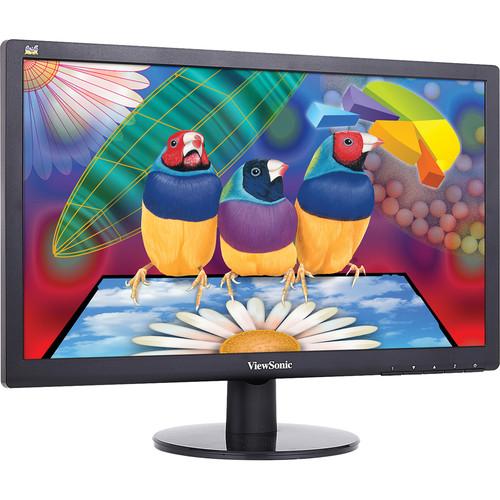

The VA1917A 19" Widescreen LED-Backlit LCD Monitor from ViewSonic is a widescreen monitor that can be used for both home offices and small businesses and can easily fit on any desktop. It also features a display size of 19", 1366 x 768 resolution, 5 ms response time, and rich color performance. The monitor's built-in color management ensures an accurate white level for image-rendering, allowing you to match different color temperature settings to create comfortable working conditions. In addition, the monitor also has an energy-saving Eco-mode.
If you own a ViewSonic computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ViewSonic VA1917A 19" Widescreen LED-Backlit LCD VA1917A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ViewSonic VA1917A 19" Widescreen LED-Backlit LCD VA1917A:
Specifications
    LCD Display
    Type 19" (48.3 cm) Color a-Si TFT Active Matrix
    Viewing Angles Horizontal: 170°
    Vertical: 160°
    Display Area 18.5" (46.9 cm)
    Optimum Resolution 1366 x 768
    Response Time 5 ms
    Light Source White-light LED
    Brightness 200 cd/m2 (typical)
    Contrast Ratio 600:1 (typical)
    Panel Surface Anti-glare, hard-coating (3H)
    Colors 16.7 million
    Backlight Life Minimum: 30,000 hours
    Input
    Analog/Digital VGA
    Frequency Fh: 24 to 82 kHz
    Fv: 50 to 75 Hz
    Sync Separate Sync
    Composite Sync
    Sync on Green
    Compatibility
    PC VGA Up to 1600 x 900 (non-interlaced)
    Mac Up to 1280 x 1024
    Connectors / Adapters
    Connectors 1 x VGA
    1 x External power adapter
    Power
    Voltage 100 to 240 VAC (universal)
    Miscellaneous
    Frequency 50/60 Hz
    Consumption Typical: 18 W
    Maximum: 20 W
    Controls
    Basic Controls Power, 1, Up, Down, 2
    OSD Auto Image Adjust
    Contrast/Brightness
    Input Select
    Audio Adjust
    Color Adjust
    Information
    Manual Image Adjust
    Setup Menu
    Memory Recall
    Ergonomics
    Tilt -5 to 20°
    Operating Conditions
    Temperature 32 to 104°F (0 to 40°C)
    Humidity (Non-condensing) 10 to 90%
    Standards and Certifications
    Regulations CB
    WEEE
    RoHS
    UL
    cUL
    FCC-B
    Energy Star
    EPEAT Silver
    Other
    VESA Mount 100 x 100 mm
    Physical
    Dimensions (W x H x D) With Stand: 17.4 x 13.1 x 6.9" (442.4 x 332.9 x 176.0 mm)
    Without Stand: 17.4 x 10.7 x 1.8" (442.4 x 271.8 x 46.2 mm)
    Weight With Stand: 4.9 lb (2.2 kg)
    Without Stand: 4.4 lb (2.0 kg)
    Packaging Info
    Package Weight 6.7 lb
    Box Dimensions (LxWxH) 19.2 x 13.7 x 4.3"
    The user manual for the ViewSonic VA1917A 19" Widescreen LED-Backlit LCD VA1917A can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ViewSonic users keep a unique electronic library for ViewSonic computer monitorss, where you can use our link to download the user manual for the ViewSonic VA1917A 19" Widescreen LED-Backlit LCD VA1917A.

    The user manual lists all of the functions of the ViewSonic VA1917A 19" Widescreen LED-Backlit LCD VA1917A, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ViewSonic service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ViewSonic VA1917A 19" Widescreen LED-Backlit LCD VA1917A. User manuals are also available on the ViewSonic website under Computers & Solutions - Monitors & Displays - Computer Monitors.
