User manual for Vivitek D552 SVGA Portable Multimedia Projector D552

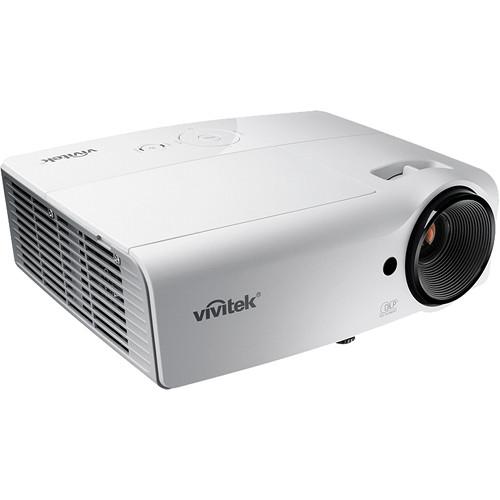

Vivitek D552 SVGA Portable Multimedia Projector D552
  • Manufacturer: Vivitek
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Vivitek
  • Settings and expert assistance
  • Contact Vivitek service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Vivitek D552 SVGA Portable Multimedia Projector D552, which address similar problems with connecting and setting up Multimedia Projectors Vivitek.



User manual for the Vivitek D552 SVGA Portable Multimedia Projector D552

The user manual for the Vivitek D552 SVGA Portable Multimedia Projector D552 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

The D552 SVGA Portable Multimedia Projector from Vivitek is designed for uses ranging from a permanent ceiling mount to simple desk placement. It features a brightness of 3000 ANSI lumens in normal mode and has a native resolution of 800 x 600 (SVGA). In addition to SVGA, it will support a range of non-native resolutions through scaling up to Full HD (1920 x 1080) resolution for video and UXGA (1600 x 1200) resolution for computer sources. The D552 features two VGA inputs for computers and analog HD sources, and composite and S-video inputs SD video devices. There is also a VGA output that mirrors the VGA input so that you can also connect a computer monitor or other downstream device. To handle audio, there is a dedicated analog audio input and a 2 watt internal mono speaker. In case you want to connect to separate amplified speakers or a sound system, there is also an analog audio output. An RS-232C port is provided for control from a computer using custom software or via a third-party automation system such as Crestron. A Kensington lock port allows you to secure the projector with a cable lock - available separately - for added safety when using it a trade show, leaving it unattended in a conference room, or other contexts where theft is a concern.
If you own a Vivitek multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Vivitek D552 SVGA Portable Multimedia Projector D552 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Vivitek D552 SVGA Portable Multimedia Projector D552Download user manual for Vivitek D552 SVGA Portable Multimedia Projector D552
(PDF file, 3.26 MB)
Additional parameters of the Vivitek D552 SVGA Portable Multimedia Projector D552:
Image Display
Display System 1-Chip 0.65" / 16.51 mm DLP
Native Resolution SVGA - 800 x 600
Supported Resolutions UXGA
WXGA
SXGA+
SXGA
XGA
SVGA
VGA
Format NTSC M
PAL B, D, G, H, I, M, N
HDTV Compatibility 1920 x 1080p
1920 x 1080i
1280 x 720p
720 x 576p
720 x 576i
720 x 480p
720 x 480i
Brightness 3000 Lumens
Uniformity 95%
Offset Not Specified By Manufacturer
Aspect Ratio Native: 4:3
Supported: 16:9
Contrast Ratio Not Specified By Manufacturer
Dynamic Contrast Ratio 15000:1
Color Range 1.07 Billion
Scan Horizontal: 15 - 91.4 kHz or 101.6 kHz
Vertical: 24 - 120 kHz
Lens
Focus Manual
Lens F 2.52 - 2.73 (f = 21.8 - 24 mm)
Zoom Manual: 1.1x
Throw Distance 3.28 - 32.8' (1.0 - 10.0 m)
Throw Ratio 1.92 - 2.14:1
Projection Size 23 - 256" / 58.42 - 650.24 cm
Features
Keystone Correction Vertical: ± 40°
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-in Speaker Yes, 2 W (Mono)
Input/Output Connectors
Inputs/Outputs 2x 15-pin VGA Video (Input)
1x S-Video Video (Input)
1x RCA Composite Video (Input)
1x 1/8" (3.5 mm) Mini Audio (Input)
1x 15-pin VGA Video (Output)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x RS-232C Control
1x Mini-USB Service
General
Lamp (Bulb) Not Specified By Manufacturer
Watts 190 W
Life Normal Mode: 5000 Hours
Eco Mode: 60000 Hours
Fan Noise Normal Mode: 35 dB
Eco Mode: 32 dB
Remote Control Yes
Security Cable Lock Slot
Power Requirements 100-240 VAC, 50/60 Hz
Power Consumption Normal Mode: 240 W
Eco Mode: 200 W
Standby Mode: <.5 W
Temperature Operating
41 to 95°F (5 to 35°C)
Dimensions (WxHxD) 10.8 x 8.3 x 3.9" / 27.4 x 21.1 x 9.9 cm
Weight 5.1 lb / 2.31 kg
Packaging Info
Package Weight 7.0 lb
Box Dimensions (LxWxH) 13.0 x 13.0 x 6.0"
The user manual for the Vivitek D552 SVGA Portable Multimedia Projector D552 can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Vivitek users keep a unique electronic library for Vivitek multimedia projectorss, where you can use our link to download the user manual for the Vivitek D552 SVGA Portable Multimedia Projector D552.

The user manual lists all of the functions of the Vivitek D552 SVGA Portable Multimedia Projector D552, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Vivitek service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Vivitek D552 SVGA Portable Multimedia Projector D552. User manuals are also available on the Vivitek website under A/V Presentation - Projectors - Multimedia Projectors.
