User manual Vivotek VS8401 4-Channel Video Server VS8401

Operating instructions and pdf manual for use - Vivotek VS8401 4-Channel Video Server VS8401 User manual, User manual Vivotek VS8401 4-Channel Video Server VS8401, Vivotek, VS8401, 4-Channel, Video, Server, VS8401, Video


User manual for Vivotek VS8401 4-Channel Video Server VS8401

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

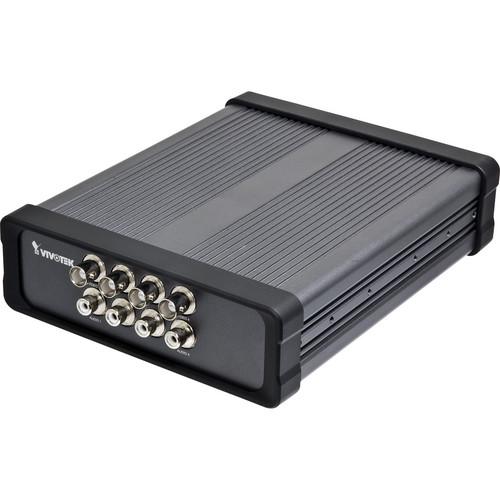

Vivotek  VS8401 4-Channel Video Server VS8401
  • Manufacturer: Vivotek
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders
  • Safety instructions
  • Startup and operation of the video encoders & decoders
  • Tips for setting up your Vivotek
  • Settings and expert assistance
  • Contact Vivotek service
  • Troubleshooting
  • Warranty information
  • Price: 525 USD
We recommend checking out our discussion threads on the Vivotek VS8401 4-Channel Video Server VS8401, which address similar problems with connecting and setting up Video Encoders & Decoders Vivotek.



User manual for the Vivotek VS8401 4-Channel Video Server VS8401

The user manual for the Vivotek VS8401 4-Channel Video Server VS8401 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders.

Convert your 4-channel analog setup into a modern digital surveillance system with the VS8401 4-Channel Video Server from Vivotek. It has efficient H.264, MJPEG, and MPEG-4 video compression for small file sizes and limited strain on bandwidth while offering a high quality of D1 720 x 480 resolution at up to 30 fps. This model supports up to 4 channels with the ability for simultaneous dual streams. It also has a professional rack-mount design and a Gigabit Ethernet port for fast data transmission.

Along with these basic video handling features, the VS8401 adds intelligent functions such as tamper detection and triple window video motion detection along with automatic event notifications. The unit is also equipped with RS-485 support for control over PTZ functions. Security is important as well with multiple security protocols available. Integrating the VS8401 into an existing system is simplified due to the ability to accept either 12 VDC or 12 VAC power as well as a standard RJ-45 Ethernet connection. This networked setup provides live viewing for up to 10 clients simultaneously.

Two-way audio is possible with four inputs and outputs. Also, an SD/SDHC card slot enables the storage of local video and screenshots. And, video management software is available to bring out even more features of the video server.
If you own a Vivotek video encoders & decoders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Vivotek VS8401 4-Channel Video Server VS8401 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Vivotek  VS8401 4-Channel Video Server VS8401Download user manual for Vivotek VS8401 4-Channel Video Server VS8401
(PDF file, 12.94 MB)
Additional parameters of the Vivotek VS8401 4-Channel Video Server VS8401:
Specifications
    System
    CPU Mozart 380 SoC
    Flash Memory 32 MB
    RAM 512 MB
    Embedded Operating System Linux 2.6
    Camera Control
    Connection RS-485: Half Duplex
    Supported Devices DynaDome/SmartDome, Pelco D, LiLin, Pelco P, Samsung scc643, and customized types
    Supports CGI command serial driver
    Video
    Compression H.264
    MJPEG
    MPEG-4
    Streaming Dual Streams
    H.264 streaming over UDP, TCP, HTTP or HTTPS
    MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
    H.264/MPEG-4 multicast streaming
    MJPEG streaming over HTTP or HTTPS
    Supports activity adaptive streaming for dynamic frame rate control
    Supports 3GPP mobile surveillance
    Max Resolution NTSC: 720 x 480 at 30 fps
    PAL: 720 x 576 at 25 fps
    Frame Rates H.264: Up to 180 fps at D1 in total
    MPEG-4: Up to 80 fps at D1 in total
    MJPEG: Up to 240 fps at D1 in total
    Image Settings Adjustable image size, quality and bit rate
    Time stamp and text caption overlay
    Flip & mirror
    Configurable brightness, contrast, saturation, sharpness
    Supports privacy masks
    Audio
    Compression G.711 audio encoding at 64 kbps (μ-Law, or A-Law mode selectable)
    Interface 4 x RCA audio input
    4 x Terminal block audio output
    Audio Features Supports two-way audio per channel
    Supports audio mute
    Networking
    Connection RJ-45 10/100/1000 Mbps Gigabit Ethernet
    ONVIF Supported
    Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
    General
    Local Storage SD/SDHC card slot
    Alarm Triple-window video motion detection
    Event notification using HTTP, SMTP, or FTP
    Tamper Detection
    4 Digital I/O for external sensors
    Local recording of MP4 file
    Security Multi-level user access with password protection
    IP address filtering
    HTTPS encrypted data transmission
    802.1X port-based authentication for network protection
    Simultaneous Client Access 10 clients on-line monitoring at the same time
    LED System power and status indicator
    System activity and network link indicator
    System Requirements OS: Microsoft Windows 2000, XP, Vista, 7
    Browser: Mozilla Firefox, Internet Explorer 6.x or above
    Cell Phone: 3GPP player
    Real Player: 10.5 or above
    Management Installation Wizard 2

    32-channel central management software

    Supports firmware upgrade
    Applications SDK available for application development and system integration
    Power Input 12 VDC or 24 VAC
    Power Consumption 24 W
    Approvals CE, LVD, FCC, VCCI, C-Tick
    Operating Conditions Temperature: 14 to 122°F / -10 to 50°C
    Humidity: 20 to 80%
    Dimensions 7.4 x 6.2 x 1.9" / 189 x 153 x 49.3 mm
    Weight 1.8 lb / 800 g
    Packaging Info
    Package Weight 3.5 lb
    Box Dimensions (LxWxH) 10.6 x 8.1 x 5.4"
    The user manual for the Vivotek VS8401 4-Channel Video Server VS8401 can be downloaded in .pdf format if it did not come with your new video encoders & decoders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Vivotek users keep a unique electronic library for Vivotek video encoders & decoderss, where you can use our link to download the user manual for the Vivotek VS8401 4-Channel Video Server VS8401.

    The user manual lists all of the functions of the Vivotek VS8401 4-Channel Video Server VS8401, all the basic and advanced features and tells you how to use the video encoders & decoders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Vivotek service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Vivotek VS8401 4-Channel Video Server VS8401. User manuals are also available on the Vivotek website under Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders.
