User manual for the Walkera TALI H500 Hexacopter FPV Kit with 3-Axis Gimbal TALIH500

The user manual for the Walkera TALI H500 Hexacopter FPV Kit with 3-Axis Gimbal TALIH500 provides necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones.

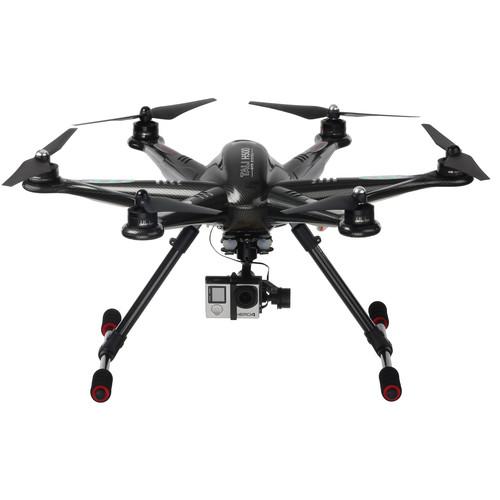

Combine the immersive recording capability of your GoPro HERO with the agility of a multi-rotor RC aircraft, and the stability of a three-axis gimbal for the ultimate aerial video experience. Included in the "ready-to-fly" TALI H500 Hexacopter FPV Kit with 3-Axis Gimbal and Case from Walkera you will find all of the basics required to get started - apart from the GoPro HERO itself. The six-rotor design gives the H500 more power than comparable quad-rotor configurations, making it more than capable even under the combined weight of the Gimbal, camera, and a full tank of gas. The flight controls system - really a sophisticated mini computer - provides a autonomy that flying a complex multi-rotor system requires. Choose among several flight modes, from highly automated GPS-assistance for beginners to manual control for better maneuverability. Additional, the integrated GPS means you can take advantage of "smart" features such as intelligent orientation control (IOC), return home fail-safe, and "orbital" flying.

With the H500 you won't be flying blind. The included transmitter (handheld radio controller) features a built-in 5" screen for FPV (first-person view) flying. A video transmitter relays a composite video feed from the camera to the ground-end via a 5.8 GHz downlink, complete with telemetry data superimposed over the video image. The transmitter is configure Mode 2 (the default for North American fliers) and uses the 2.4 GHz frequency range for the control signal to avoid interference from the video downlink. Both video and control signals have a line-of-sight range of up to 3,280' (depending on weather and other factors).

A 5400mAh LiPo flight battery is included, and can provide up to 25 minutes of flying time. The battery slots into the tail of the aircraft and features LED indicators so that the remaining capacity can be checked without relying the transmitter's OSD display. A special charger is included, and care must be taken to follow proper charging protocol when recharging the battery to ensure safety and avoid damage to the battery. To store and transport the TALI H500 and included accessories, a wheeled hard case come with the bundle.
If you own a Walkera aerial imaging platforms & drones and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Walkera TALI H500 Hexacopter FPV Kit with 3-Axis Gimbal TALIH500 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Walkera TALI H500 Hexacopter FPV Kit with 3-Axis Gimbal TALIH500:
Performance
Takeoff Weight < 5.5 lb / 2.5 kg
Battery Life Up to 25 minutes
Motors
Model WK-WS-34-001
Type Brushless
ESC Model: WST-15AH (R/G)
Flight Control System
Main Connector Model: FCS-H500
Transmitter
Model DEVO F12E
Number of Channels 12 (including control, video, and data)
Frequency Control Channels: 2.5 GHz
Video Channels: 5.8 GHz
Communication Distance Video and Control: Up to 3,280' / 1000 m line-of-sight depending on conditions
Display 5" color LCD
OSD Data Display Battery voltage
Temperature
GPS data
Control Mode Mode 2; can be configured Mode 4
Connectivity 1 x Composite video out on 3.5 mm mini jack
1 x Headphone out on 3.5 mm mini jack
1 x Mini-USB type B for firmware updates
1 x Trainer port (DSC socket)
Power Requirements Battery: 8 x AA batteries
External: 12 VDC, 50mA via charger (CHG) socket
Dimensions Not specified by manufacturer
Receiver
Model DEVO-RX705
Frequency 2.4 GHz
Camera
Camera Camera available separately
Charger & Battery Parameters
Charger AC Input 100 to 240 VAC
Charge Current 6S, 22.2 VDC (refer to user guide for proper charging parameters)
Charge Time 40 to 60 minutes
Battery Type 6S, 22.2 V, 5400 mAh lithium-polymer battery (LiPo)
LED Indicator 4 LEDs indicate remaining capacity / charge status
General
USB 1 x Micro-USB type B female for firmware updates and using assistant software
Dimensions Propeller Length: 9.2" / 23.3
L x W x H: 18.5 x 21.1 x 10.6" / 47.1 x 53.6 x 26.9 cm
Weight 4.4 lb / 2 kg
Packaging Info
Package Weight 34.5 lb
Box Dimensions (LxWxH) 26.0 x 23.0 x 14.0"
The user manual for the Walkera TALI H500 Hexacopter FPV Kit with 3-Axis Gimbal TALIH500 can be downloaded in .pdf format if it did not come with your new aerial imaging platforms & drones, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Walkera users keep a unique electronic library for Walkera aerial imaging platforms & droness, where you can use our link to download the user manual for the Walkera TALI H500 Hexacopter FPV Kit with 3-Axis Gimbal TALIH500.

The user manual lists all of the functions of the Walkera TALI H500 Hexacopter FPV Kit with 3-Axis Gimbal TALIH500, all the basic and advanced features and tells you how to use the aerial imaging platforms & drones. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Walkera service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Walkera TALI H500 Hexacopter FPV Kit with 3-Axis Gimbal TALIH500. User manuals are also available on the Walkera website under Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones.
