User manual WD 4TB My Cloud EX2 2-Bay Personal Cloud WDBVKW0040JCH-NESN

Operating instructions and pdf manual for use - WD 4TB My Cloud EX2 2-Bay Personal Cloud WDBVKW0040JCH-NESN User manual, User manual WD 4TB My Cloud EX2 2-Bay Personal Cloud WDBVKW0040JCH-NESN, WD, 4TB, My, Cloud, EX2, 2-Bay, Personal, Cloud, WDBVK


User manual for WD 4TB My Cloud EX2 2-Bay Personal Cloud WDBVKW0040JCH-NESN

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
WD 4TB My Cloud EX2 2-Bay Personal Cloud WDBVKW0040JCH-NESN
  • Manufacturer: WD
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Network Attached Storage Drives
  • Safety instructions
  • Startup and operation of the network attached storage drives
  • Tips for setting up your WD
  • Settings and expert assistance
  • Contact WD service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the WD 4TB My Cloud EX2 2-Bay Personal Cloud WDBVKW0040JCH-NESN, which address similar problems with connecting and setting up Network Attached Storage Drives WD.



User manual for the WD 4TB My Cloud EX2 2-Bay Personal Cloud WDBVKW0040JCH-NESN

The user manual for the WD 4TB My Cloud EX2 2-Bay Personal Cloud WDBVKW0040JCH-NESN provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Attached Storage Drives.

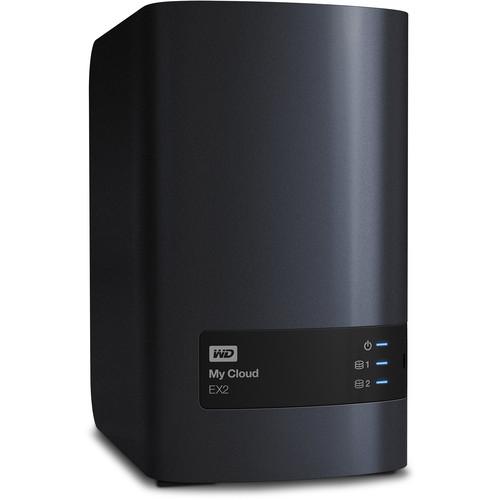

The 4TB My Cloud EX2 2-Bay Personal Cloud Storage Server from Western Digital is a 2-bay network attached storage device designed to be the central location where you store and backup your data. Simply insert the drives into the My Cloud EX2 and utilize a variety of RAID configurations including RAID 0, 1, JBOD, and spanning modes to suit your specific storage needs. This server also comes equipped with a 1.2 GHz processor and 512 MB of DDR3 RAM ensuring smooth operation even under the most demanding conditions.

Whether using the My Cloud EX2 on a Windows or a Mac based computer you can rest assured your data will remain secure with a variety of backup options including RAID 1, USB, cloud or LAN/WAN backup options. Simply attach the server to your network via the integrated Ethernet port located on the back of the device. Once connected, you can utilize the many apps that let you manage your data at home or on the go, and even receive notifications with regard to the status of your data and your drives via email and mobile alerts.

While the My Cloud EX2 can be used as a media storage device, it also comes equipped with features including iSCSI target, FTP services, jumbo frame support, iPv4/iPv6 support, UPS support (USB and network), real-time resource monitor, volume encryption with boot-up password, SNMP and virtual volumes. Each of these features ensures the My Cloud EX2 can be deployed in a variety of business environments, as it can support a wide number of network protocols, a variety of file systems, and much more all while keeping your files secure with Active Directory support and 256-bit AES volume encryption.
If you own a WD network attached storage drives and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the WD 4TB My Cloud EX2 2-Bay Personal Cloud WDBVKW0040JCH-NESN in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the WD 4TB My Cloud EX2 2-Bay Personal Cloud WDBVKW0040JCH-NESN:
Specifications
    Capacity 4 TB
    Interface 1 x Gigabit Ethernet
    2 x USB 3.0 Ports
    Drive Bays 2 x 3.5 inch hard drive bays, hot swap capable, trayless design
    Processor 1.2 GHz
    Memory 512 MB DDR3
    Fan 35 x 35 mm, 9,500 rpm
    System Requirements Windows 8.1 or earlier, Windows 7, Windows Vista or Windows XP (SP 3) operating systems
    Mac OS X Mavericks, Mountain Lion, Lion or Snow Leopard operating systems
    DLNA/UPnP devices for streaming
    Router with Internet connection
    Supported Web Browsers Internet Explorer 8 or higher
    Safari 6 or higher
    Firefox 21 or higher
    Google Chrome 27 and later on supported Windows and Mac OS platforms
    Network Protocols DHCP client or static IP
    NTP client
    Dynamic DNS (DDNS)
    Apple Bonjour and Windows Rally
    Jumbo frame support
    VLAN (802.1Q)
    UPnP port forwarding
    iPv4/iPv6
    iSCSI
    SSH
    Network File Services OS Supports:
    • Windows XP Home/ Pro (SP 3)
    • Windows Vista/7/8 (all versions)
    • Mac OS X Mavericks, Mountain Lion, Lion and Snow Leopard
    CIFS/SMB for Windows, Mac OS X and Linux
    NFSv3 for Linux and UNIX
    AFP for Mac OS X
    Microsoft Distributed File System (DFS)
    WebDAV Server
    Security Active directory support for Windows server 2003/ 2008/ 2012
    Volume encryption (256 bit AES)
    File System EXT4 for internal HDD
    Supports the following formats for externally attached USB drives
    • FAT/FAT32
    • NTFS (read and write capability)
    • HFS+J (case sensitive)
    • Linux EXT2, EXT3, EXT4
    FTP Server Support port setting Set port range of passive FTP Option to report external IP in PASV mode Client language selection Anonymous FTP Secure FTP support Support File eXchange Protocol (FXP) FTP bandwidth restriction (upstream/downstream) IP address block (block access from undesired IP address)
    Download Management HTTP downloads from a URL to a user specified folder on the NAS
    FTP downloads of files or folders from an FTP server to another files/folders on the NAS
    P2P torrent download manager
    Disk Management RAID 0/1; JBOD; spanning
    RAID migration:
    • JBOD to RAID 1
    Hot swapping (RAID 1)
    Disk roaming
    Array roaming
    Power Management Drive spin-up/down (including attached WD USB drives)
    Automatic power recovery
    Scheduled power on/off
    Graceful shutdown on UPS low battery
    Fan control
    Network UPS
    Wake On LAN
    Remote Access My Cloud and WD Photos mobile apps
    My Cloud desktop app
    Web access
    User/Group Management Max no. of users: 512 for Samba, 800 for ADS
    Max no. of user groups: 64 for Samba, 200 for ADS
    Max no. of network shares:128
    Supports up to 10 concurrent CIFS connections
    User/group assignment for network sharing/FTP
    Quotas for groups or users
    Assignment of users to multiple groups
    Batch assignment of users to groups
    Batch user creation
    Importing users (CSV delimited format)
    Backup Management Remote backups: Backup to a My Cloud EX2 or My Cloud EX4 locally or remotely
    Apple Time Machine support
    Backup internal files or folders of the device to other files/folders on the NAS
    Cloud-based backup services
    • Amazon S3 (http://aws.amazon.com/s3/)
    • ElephantDrive (http://home.elephantdrive.com/welcome/wdc/)
    Disk sync management for the attached USB ports
    System Management Alert notifications
    • Event UI messages
    • UI alerts (with message acknowledgment required)
    • Email notices
    • QuickView pop-up messages
    Network recycle bin
    • Supports Windows CIFS
    • Supports Apple AFP
    System/FTP log (syslog client)
    HTTP/S (web) administration interface (HTTP server)
    Firmware upgrade
    Configuration backup and restore
    SNMPv2
    System information
    • CPU percentage
    • RAM usage
    • Network performance
    USB Port Supports UPS monitoring
    Supports external storage device
    Supports MTP (Media Transfer Protocol) and PTP (Picture Transfer Protocol)
    Media Streaming UPnP AV media server (Twonky v7.2)
    DLNA 1.5 certification
    Supports WD TV Live, Xbox 360, PlayStation 3, Windows 8, connected TVs, Blu-ray players & digital picture frames
    iTunes support
    iSCSI iSCSI target
    • CHAP authentication
    • iSNS (Internet Storage Name Service)
    • Up to 64 iSCSI targets
    Volume virtualization: NAS can be configured as an iSCSI initiator and capable of mapping any iSCSI target of the other device to be one virtual volume.
    • Virtual disk drive (via iSCSI initiator)
    • Max number of virtual disk drives supported is eight
    Power Supply AC input voltage: 100 V to 240 VAC AC input frequency: 50 to 60 Hz DC output voltage: 12 VDC, 3 A
    Temperature Operating Temperature: 41 to 95°F / 5 to 35°C
    Non-Operating Temperature: -4 to 149°F / -20 to 65°C
    Dimensions (HxWxL) 6.75 x 6.10 x 3.9" / 17.145 x 15.494 x 9.906 cm
    Weight 3.4 lb / 1.6 kg
    Packaging Info
    Package Weight 6.15 lb
    Box Dimensions (LxWxH) 11.75 x 9.25 x 6.95"
    The user manual for the WD 4TB My Cloud EX2 2-Bay Personal Cloud WDBVKW0040JCH-NESN can be downloaded in .pdf format if it did not come with your new network attached storage drives, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other WD users keep a unique electronic library for WD network attached storage drivess, where you can use our link to download the user manual for the WD 4TB My Cloud EX2 2-Bay Personal Cloud WDBVKW0040JCH-NESN.

    The user manual lists all of the functions of the WD 4TB My Cloud EX2 2-Bay Personal Cloud WDBVKW0040JCH-NESN, all the basic and advanced features and tells you how to use the network attached storage drives. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from WD service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the WD 4TB My Cloud EX2 2-Bay Personal Cloud WDBVKW0040JCH-NESN. User manuals are also available on the WD website under Computers & Solutions - Networking - Network Attached Storage Drives.
