User manual for Weldex 7" Open-Frame Touch Screen Monitor WDL-7002TCF
- Manufacturer: Weldex
- Basic description and contents of package
- Product classification: Surveillance - Surveillance Video - Surveillance Monitors
- Safety instructions
- Startup and operation of the surveillance monitors
- Tips for setting up your Weldex
- Settings and expert assistance
- Contact Weldex service
- Warranty information
- Price: 374 USD

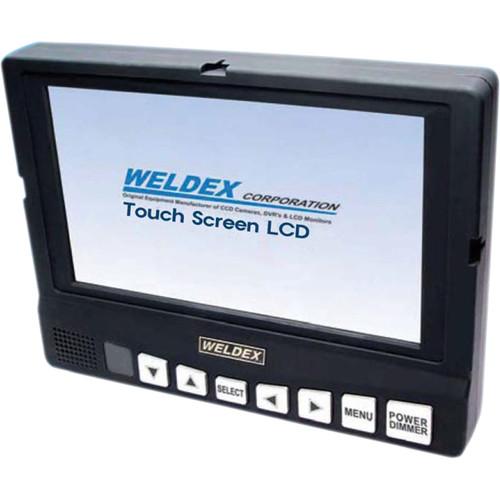

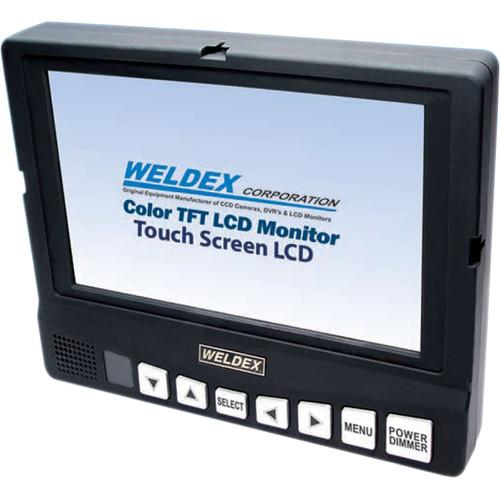

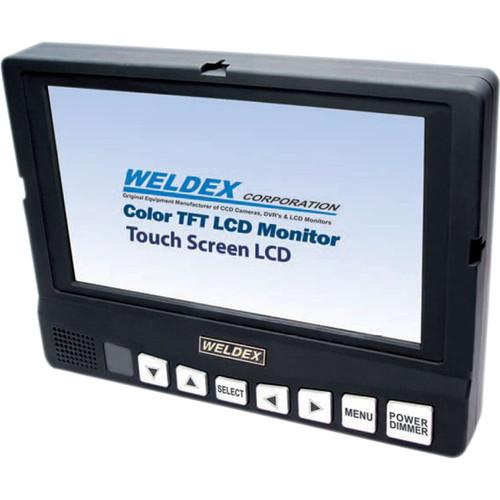

Click to enlarge image
We recommend checking out our discussion threads on the Weldex 7" Open-Frame Touch Screen Monitor WDL-7002TCF,
which address similar problems with connecting and setting up Surveillance Monitors Weldex.
User manual for the Weldex 7" Open-Frame Touch Screen Monitor WDL-7002TCF
The user manual for the Weldex 7" Open-Frame Touch Screen Monitor WDL-7002TCF provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Surveillance Monitors.
The 7" Open-Frame Touch Screen Monitor from Weldex displays images with resolutions up to 800 x 480 pixels. Supporting 16.7M colors with 250 cd/m² brightness, the monitor depicts the finest details accurately and clearly. The touch screen interface with the on-screen display menu provides feature and video adjustments for quick changes to contrast, color, language, and video and input selection. It also features a D-Sub input for video signals.
If you own a Weldex surveillance monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Weldex 7" Open-Frame Touch Screen Monitor WDL-7002TCF in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Weldex 7" Open-Frame Touch Screen Monitor WDL-7002TCF:
| Touchscreen || Resistive 4-wire controller USB or serial interface RS-232 |
| Diagonal Screen Size || 7.0" (17.7 cm) |
| Resolution || 800 (W) x 480 (H) |
| Brightness || 400 cd/m2 |
| Contrast Ratio || 500:1 |
| Dot Pitch || 0.0642 x 0.1790 mm |
| Active Area || 154.08 x 85.92 mm |
| Viewing Angle (H x V) || Up: 50° / Down: 70° / Right:70° / Left:70° |
| Touch Screen || Resistive 4-wire Controller USB or Serial Interface RS-232 |
| Color System || NTSC / PAL |
| Video Input || 1 x Composite (RCA); 1 x VGA |
| Audio Input || 1 x Mono Audio (RCA) |
| Power Requirement || 12 to 32 VDC |
| Operating Temperature || -4 to 176°F (-20 to 80°C) |
| Dimensions (WxHxD) || 7.7 x 5.7 x 1.3" (19.5 x 14.5 x 3.3 cm) |
| Weight || 1.9 lb (0.9 kg) |
