User manual X-keys XK-128 XK-1225-UFK128-R

Operating instructions and pdf manual for use - X-keys XK-128 XK-1225-UFK128-R User manual, User manual X-keys XK-128 XK-1225-UFK128-R, X-keys, XK-128, XK-1225-UFK128-R, Video


User manual for X-keys XK-128 XK-1225-UFK128-R

X-keys  XK-128 XK-1225-UFK128-R
  • Manufacturer: X-keys
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Computer Peripherals - Keyboards
  • Safety instructions
  • Startup and operation of the keyboards
  • Tips for setting up your X-keys
  • Settings and expert assistance
  • Contact X-keys service
  • Troubleshooting
  • Warranty information
  • Price: 489 USD
We recommend checking out our discussion threads on the X-keys XK-128 XK-1225-UFK128-R, which address similar problems with connecting and setting up Keyboards X-keys.



User manual for the X-keys XK-128 XK-1225-UFK128-R

The user manual for the X-keys XK-128 XK-1225-UFK128-R provides necessary instructions for the proper use of the product Computers & Solutions - Computer Peripherals - Keyboards.

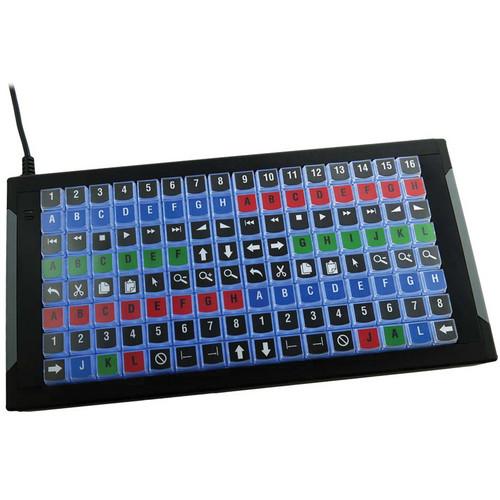

The XK-128 is a universal control surface from X-keys that features 128 keys as well as a programming button. The keys can be configured to take the place of any keyboard shortcut or macro available within the application you are using. It includes programming software for Windows and OS X, however can be used with any operating system that supports HID USB devices. For customized applications there are also SDKs available for Windows, OS X, and Linux. It is compatible with USB 1.1 and later and receives its power from the computer. A 56" integrated USB cable is included.

If you own a X-keys keyboards and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the X-keys XK-128 XK-1225-UFK128-R in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for X-keys  XK-128 XK-1225-UFK128-RDownload user manual for X-keys XK-128 XK-1225-UFK128-R
(PDF file, 0.24 MB)
Additional parameters of the X-keys XK-128 XK-1225-UFK128-R:
Emulation Modes HID Keyboard, HID Mouse, HID Game Controller
Switch Type Full-travel rubber dome, carbon on gold contacts - guaranteed for over 1 million operations
Number of Keys 128 x single keys
1 x programming button
Actuation Force Break-over: Approximately 2.5 oz / 72 g
Hold: Approximately 1.5 oz / 42 g
Keycaps 0.625" / 16 mm sq; relegendable with Cherry MX compatible stem
Key Spacing 0.75" / 19 mm O.C.
Optional Keys 2x1, 1x2, 2x2, and 1x1 blocker
Backlighting 1 blue and 1 red addressable LED under each key
Auxiliary Control None
Connector 56" / 142 cm integrated USB 2.0 cable with type A connector
System Requirements Any operating system via USB HID
For Included Programming Software: OSX 10.4 or later; Windows XP or later Languages
SDK Supported Languages Windows: C++, C#, VB.NET
Linux: C++
Android: Java
Raw HID: Any language / OS
Memory Capacity Each key is allocated 3 characters with a pool of 1000 additional keystrokes available to any keys that require additional characters
Memory Type EEPROM, non volatile memory
Power Requirements USB bus powered - 5 VDC
Power Consumption No Backlight: 37 mA
Blue Backlight Full: 176 mA
Red Backlight Full: 265 mA
All Backlights Full: 358 mA
Operating Temperature -4 to 140°F / -20 to 60°C
Dimensions 14 x 7.3 x 1.8" / 279 x 185 x 46 mm
Weight 3.7 lb / 1.7 kg
Packaging Info
Package Weight 4.95 lb
Box Dimensions (LxWxH) 16.1 x 11.4 x 2.2"
The user manual for the X-keys XK-128 XK-1225-UFK128-R can be downloaded in .pdf format if it did not come with your new keyboards, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other X-keys users keep a unique electronic library for X-keys keyboardss, where you can use our link to download the user manual for the X-keys XK-128 XK-1225-UFK128-R.

The user manual lists all of the functions of the X-keys XK-128 XK-1225-UFK128-R, all the basic and advanced features and tells you how to use the keyboards. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from X-keys service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the X-keys XK-128 XK-1225-UFK128-R. User manuals are also available on the X-keys website under Computers & Solutions - Computer Peripherals - Keyboards.
