User manual for the Yamaha AVENTAGE RX-A2040 9.2 Channel Network AV RX-A2040BL
The user manual for the Yamaha AVENTAGE RX-A2040 9.2 Channel Network AV RX-A2040BL provides
necessary instructions for the proper use of the product TVs & Entertainment - Receivers & Amplifiers - Receivers.

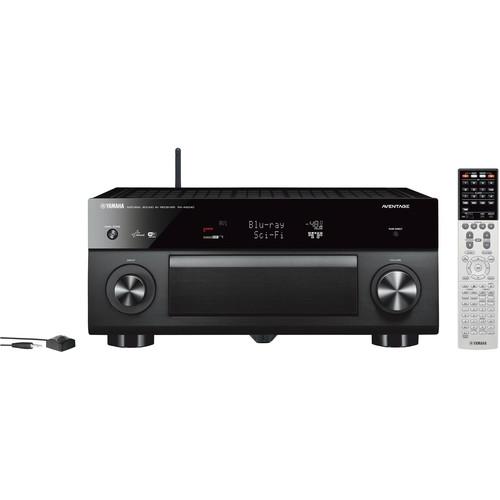

The AVENTAGE RX-A2040 9.2 Channel Network AV Receiver from Yamaha delivers powerful multi-channel performance and video upscaling. This receiver delivers up to 165W per channel at 8 ohms and can upscale video sources to near UHD 4K quality. Yamaha YPAO sound optimization technology is onboard to help you tailor the sound of the receiver to your listening space with the included setup microphone. The receiver's front panel USB port is compatible with Apple devices like iPhones and iPods, and can also be used to connect other USB music sources. Additionally, there's an HDMI port on the front panel that accepts MHL connections from devices like smartphones.
The Yamaha RX-A2040 features Apple AirPlay for wireless music streaming from compatible devices. You can also use the receiver's Ethernet port or built-in Wi-Fi for Internet connectivity, and once connected you can take advantage of the receiver's enhanced network features like Pandora, Spotify and DLNA content sharing. You can also download the free Yamaha AV Controller app for Android or iOS for enhanced receiver control.
Eight HDMI inputs are onboard for connecting high-definition video and audio sources. There are also two HDMI outputs for displaying video on an external display. Three digital optical and digital coaxial inputs are also built-in for interfacing additional audio sources. Audio preouts are also onboard for using this receiver with an external power amplifier. Additionally, this model decodes high-resolution surround sound formats such as Dolby TrueHD and DTS-HD Master Audio for producing a dynamic multi-channel audio experience.
|
If you own a Yamaha receivers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Yamaha AVENTAGE RX-A2040 9.2 Channel Network AV RX-A2040BL in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Yamaha AVENTAGE RX-A2040 9.2 Channel Network AV RX-A2040BL:
| Channels | 9.2 | | Nominal Output Levels | Rated Output Power (1 kHz, 2-ch driven):
155 W (8 ohms, 0.9% THD)
Rated Output Power (20 Hz-20 kHz, 2-ch driven):
140 W (8 ohms, 0.06% THD) | | Maximum Output Level | (8/6/4/2 ohms): 165/210/285/405 W | | DAC Type | 2 x ESS Technology ES9006 SABRE Premier Audio DACs | | Audio Delay | 0 - 500 ms | | Tuner | FM / AM | | Surround Sound | CINEMA DSP (3D), 23 DSP programs, Dialog Level Adjustment, Virtual Presence Speaker, Dialogue Lift (no presence speakers required), SILENT CINEMA, Virtual CINEMA FRONT, Dolby TrueHD, Dolby Digital Plus, Dolby Pro Logic IIx, DTS-HD Master Audio | | Wi-Fi | Yes (with Wireless Direct) | | AirPlay | Yes | | Bi-Amp Capability | Yes | | Pass-Through | 4K (50/60p), 3D | | Upscaling | Up to 4K via HDMI (analog to HDMI / HDMI to HDMI) | | MHL | Yes | | HDMI CEC | Yes | | Audio Return Channel (ARC) | Yes | | Deep Color / xvYCC Support | Yes | | Video Adjustment | Yes | | Inputs | 8 x HDMI
3 x Optical
3 x Digital coaxial
3 x Component video
5 x Composite video
9 x Stereo RCA
1 x Phono with ground
1 x 3.5 mm (YPAO)
1 x USB
1 x Front multi-channel stereo RCA
1 x Surround multi-channel stereo RCA
1 x Surround back multi-channel stereo RCA
1 x Center channel multi-channel
1 x Subwoofer multi-channel | | Outputs | 2 x HDMI
1 x Component video
2 x Composite video
1 x Optical
1 x Stereo RCA
1 x Zone 2 Stereo RCA
1 x Zone 3 Stereo RCA
1 x Front Stereo RCA preout
1 x Surround Stereo RCA preout
1 x Surround Back Stereo RCA preout
2 x Subwoofer preout
1 x Center preout
1 x Headphones
1 x USB DC 5 V / 0.5 A | | Other Ports | 1 x Ethernet
2 x Trigger Out
2 x Remote In
2 x Remote Out
1 x RS-232C
1 x Wi-Fi Antenna
1 x FM tuner antenna
1 x AM tuner antenna
1 x AC | | Speaker Connectors | Front
Center
Surround
Surround Back
Zone 2 & 3 / Front Presence / Bi-amp SP1
Zone 2 & 3 / Rear Presence SP2 | | Graphical User Interface | Yes | | Power Consumption | Standby (IR Only): ≤0.1W | | Dimensions (W x H x D) | Without Antenna: 17.1 x 7.5 x 18.4" (43.4 x 19.1 x 46.7 cm)
With Antenna: 17.1 x 9.9 x 18.6" (43.4 x 25.1 x 47.2 cm) | | Weight | 37.5 lb (17.0 kg) | | Package Weight | 43.0 lb | | Box Dimensions (LxWxH) | 22.0 x 21.5 x 12.0" | |
The user manual for the Yamaha AVENTAGE RX-A2040 9.2 Channel Network AV RX-A2040BL can be downloaded in .pdf
format if it did not come with your new receivers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Yamaha users keep a unique electronic library
for Yamaha receiverss,
where you can use our link to download the user manual for the Yamaha AVENTAGE RX-A2040 9.2 Channel Network AV RX-A2040BL.
The user manual lists all of the functions of the Yamaha AVENTAGE RX-A2040 9.2 Channel Network AV RX-A2040BL,
all the basic and advanced features and tells you how to use the receivers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Yamaha service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Yamaha AVENTAGE RX-A2040 9.2 Channel Network AV RX-A2040BL. User manuals are also
available on the Yamaha website under TVs & Entertainment - Receivers & Amplifiers - Receivers.
Question and answer discussion forum concerning user instructions and resolving problems with the Yamaha AVENTAGE RX-A2040 9.2 Channel Network AV RX-A2040BL
Post new comment to Yamaha AVENTAGE RX-A2040 9.2 Channel Network AV RX-A2040BL
| Subject: Yamaha RX-A2040 help needed | | Date: 30.11.2023 13:38:53 | Author: Kevin | need the values of the following parts on the PSU board.
R3502, R3503, q3501 and C3517
Any help will be greatly appreciated as I have not been able to find a service manual | | Reply |
