User manual for the Yamaha BR15 - 15" 2-Way 400 Watt P.A. Speaker BR15
The user manual for the Yamaha BR15 - 15" 2-Way 400 Watt P.A. Speaker BR15 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

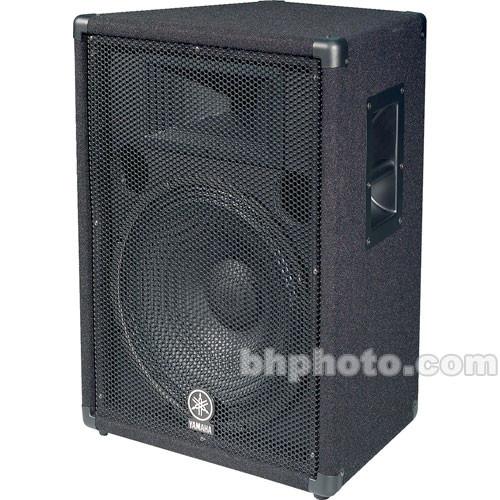

The Yamaha BR15 is a passive P.A. speaker with a 400-watt power handling capacity, featuring a 15" woofer and a 1" titanium horn-loaded tweeter, housed in a rugged, steel-cornered enclosure. The speaker is equipped with power overload protection circuitry for the tweeter, and offers recessed, gravity-centered steel carrying handles, for safe and simplified transportation.
If you own a Yamaha pa speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Yamaha BR15 - 15" 2-Way 400 Watt P.A. Speaker BR15 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Yamaha BR15 - 15" 2-Way 400 Watt P.A. Speaker BR15:
| Active or Passive || Passive |
| Frequency Response || 60 Hz - 20 kHz |
| Power Capacity || Noise: 200 Watts |
Program: 400 Watts
Peak: 800 Watts
| Maximum Sound Pressure Level (SPL) || 98dB SPL, 1W/1m |
| Nominal Sensitivity || Not Specified by Manufacturer |
| Impedance || 8 Ohms |
| Crossover || Not Specified by Manufacturer |
| Low Frequency Driver || 15" Woofer |
| High Frequency Driver || 1" VC Titanium Tweeter, Horn Loaded |
| Enclosure Material || Bass-reflex enclosure with carpet-covered wood, steel corner protectors, rubber feet |
Steel mesh grill
| Input Connections || 2 x 1/4" TS Phone Input/Parallel Connectors |
| Dimensions || 25.8 x 19.1 x 14.4" (656 x 485 x 365mm) |
| Weight || 46.9 lb (21.3 kg) |
| Package Weight || 51.7 lb |
| Box Dimensions (LxWxH) || 28.0 x 22.0 x 17.0" |
The user manual for the Yamaha BR15 - 15" 2-Way 400 Watt P.A. Speaker BR15 can be downloaded in .pdf
format if it did not come with your new pa speakers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Yamaha users keep a unique electronic library
for Yamaha pa speakerss,
where you can use our link to download the user manual for the Yamaha BR15 - 15" 2-Way 400 Watt P.A. Speaker BR15.
The user manual lists all of the functions of the Yamaha BR15 - 15" 2-Way 400 Watt P.A. Speaker BR15,
all the basic and advanced features and tells you how to use the pa speakers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Yamaha service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Yamaha BR15 - 15" 2-Way 400 Watt P.A. Speaker BR15. User manuals are also
available on the Yamaha website under Pro Audio - Live Sound - PA Speakers.
