User manual Yamaha DBR10- 10" 2-Way Powered Loudspeaker DBR10

Operating instructions and pdf manual for use - Yamaha DBR10- 10" 2-Way Powered Loudspeaker DBR10 User manual, User manual Yamaha DBR10- 10" 2-Way Powered Loudspeaker DBR10, Yamaha, DBR10-, 10, 2-Way, Powered, Loudspeaker, DBR10,


User manual for Yamaha DBR10- 10" 2-Way Powered Loudspeaker DBR10

Yamaha DBR10- 10
  • Manufacturer: Yamaha
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - PA Speakers
  • Safety instructions
  • Startup and operation of the pa speakers
  • Tips for setting up your Yamaha
  • Settings and expert assistance
  • Contact Yamaha service
  • Troubleshooting
  • Warranty information
  • Price: 400 USD
We recommend checking out our discussion threads on the Yamaha DBR10- 10" 2-Way Powered Loudspeaker DBR10, which address similar problems with connecting and setting up PA Speakers Yamaha.



User manual for the Yamaha DBR10- 10" 2-Way Powered Loudspeaker DBR10

The user manual for the Yamaha DBR10- 10" 2-Way Powered Loudspeaker DBR10 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

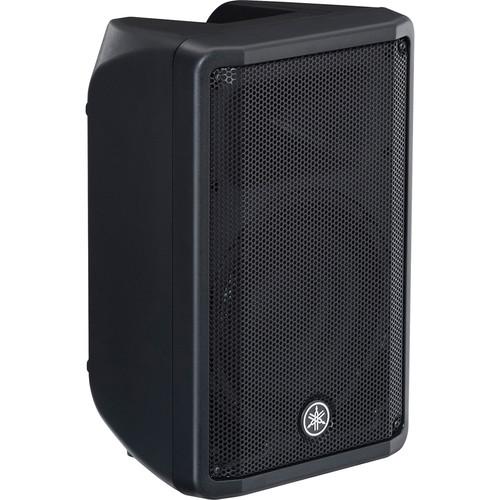

Giving you the flexibility of using it for floor monitoring, front of house, or rigged applications, the DBR10- 10" 2-Way Powered Loudspeaker from Yamaha is capable of up to 700W of dynamic output via its Class D amplifier. The loudspeaker features a 10" woofer and a 1" high-frequency driver and provides a maximum output of 129 dB. An on-board 2-channel mixers allows you to connect microphone or line level sources via 1/4", XLR, and RCA connectors. Thanks to its ergonomic handle and lightweight design the DBR10 is portable and can be easily transported.
If you own a Yamaha pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Yamaha DBR10- 10" 2-Way Powered Loudspeaker DBR10 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Yamaha DBR10- 10Download user manual for Yamaha DBR10- 10" 2-Way Powered Loudspeaker DBR10
(PDF file, 1.39 MB)
Additional parameters of the Yamaha DBR10- 10" 2-Way Powered Loudspeaker DBR10:
Specifications
    Speaker Type 2-way, bi-amp powered speaker, bass-reflex type
    Frequency Range 55 Hz to 20 kHz (-10 dB)
    Nominal Coverage Angle H: 90°
    V: 60°
    Components LF:
    10" cone
    2" Voice Coil
    Ferrite magnet

    HF:
    1" diaphragm throat compression driver
    Ferrite magnet
    Crossover 2.1 kHz: FIR-X tuning (linear phase FIR filter)
    Output Power Dynamic: 700 W (LF: 500 W, HF: 200 W)
    Continuous: 325 W (LF: 260 W, HF: 65 W)
    Maximum Output Level 129 dB SPL
    I/O Connectors Input 1: 1x combination XLR/TRS
    INPUT2: 1x combination XLR/TRS, 2x unbalanced RCA
    OUTPUT: 1x XLR3-32 (CH 1 Parallel Through or CH 1 + CH 2 Mix)
    Processors D-Contour
    FOH/Main
    Monitor
    Off
    Heat Dissipation Fan cooling, 4 speeds
    Power Requirements 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz
    Power Consumption 60 W (1/8 Power Consumption)
    18 W (Idle)
    Cabinet Material: Plastic
    Handle 1x Top
    Mounting Hardware 2x bottom mounted for M8 x 15 mm eyebolts
    Pole Socket 1x 35 mm, bottom
    Dimensions (W x H x D) 12.1 x 19.4 x 11.4" (308 x 493 x 289 mm)
    Weight 23.2 lb (10.5 kg)
    Packaging Info
    Package Weight 30.75 lb
    Box Dimensions (LxWxH) 22.6 x 15.8 x 14.9"
    The user manual for the Yamaha DBR10- 10" 2-Way Powered Loudspeaker DBR10 can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Yamaha users keep a unique electronic library for Yamaha pa speakerss, where you can use our link to download the user manual for the Yamaha DBR10- 10" 2-Way Powered Loudspeaker DBR10.

    The user manual lists all of the functions of the Yamaha DBR10- 10" 2-Way Powered Loudspeaker DBR10, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Yamaha service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Yamaha DBR10- 10" 2-Way Powered Loudspeaker DBR10. User manuals are also available on the Yamaha website under Pro Audio - Live Sound - PA Speakers.
