User manual Yamaha EMX-212S Stereo Powered Mixer EMX212S

Operating instructions and pdf manual for use - Yamaha EMX-212S Stereo Powered Mixer EMX212S User manual, User manual Yamaha EMX-212S Stereo Powered Mixer EMX212S, Yamaha, EMX-212S, Stereo, Powered, Mixer, EMX212S, Video


User manual for Yamaha EMX-212S Stereo Powered Mixer EMX212S

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

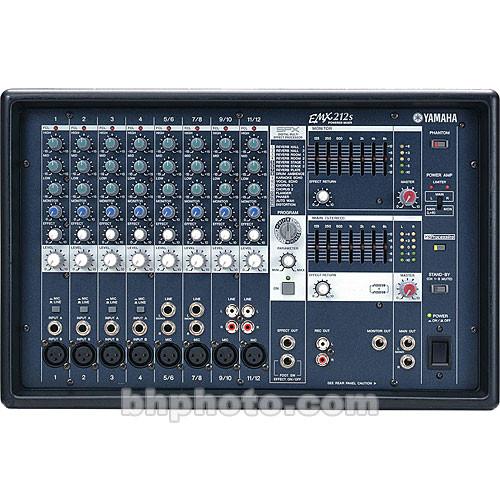

Yamaha  EMX-212S Stereo Powered Mixer EMX212S
  • Manufacturer: Yamaha
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Sound Reinforcement Mixers
  • Safety instructions
  • Startup and operation of the sound reinforcement mixers
  • Tips for setting up your Yamaha
  • Settings and expert assistance
  • Contact Yamaha service
  • Troubleshooting
  • Warranty information
  • Price: 370 USD
We recommend checking out our discussion threads on the Yamaha EMX-212S Stereo Powered Mixer EMX212S, which address similar problems with connecting and setting up Sound Reinforcement Mixers Yamaha.



User manual for the Yamaha EMX-212S Stereo Powered Mixer EMX212S

The user manual for the Yamaha EMX-212S Stereo Powered Mixer EMX212S provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Sound Reinforcement Mixers.

The Yamaha EMX-212S is a professional power amplifier and mixer combination designed for operation in clubs, schools, houses of worship, etc. The EMX-212S features an internal stereo amplifier that delivers a powerful 200 Watts of power per channel. The result is a sonic clarity and performance suitable for the working musician, vocalist and large venue P.A. The mixer section features a total of 12 line inputs with channels 1 through 4 equipped with mono 1/4" TRS phone inputs, while 5 through 12 are stereo paired for connecting keyboards, stereo playback devices, etc. The mixer also features 8 balanced XLR microphone inputs, capable of 15V phantom power.
If you own a Yamaha sound reinforcement mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Yamaha EMX-212S Stereo Powered Mixer EMX212S in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Yamaha  EMX-212S Stereo Powered Mixer EMX212SDownload user manual for Yamaha EMX-212S Stereo Powered Mixer EMX212S
(PDF file, 3.16 MB)
Additional parameters of the Yamaha EMX-212S Stereo Powered Mixer EMX212S:
Power Rating 220 Watts @ 4 Ohms
130 Watts @ 8 Ohms (UA)
130 Watts @ 8 Ohms (H)
Mic/Line Inputs 8 Microphone - Balanced XLR
12 Line - 1/4" TRS Phone (chs. 1-8), RCA Phono (chs. 9-12)
Mains Inputs Left / Right - 1/4" Phone
In-Line Inputs/Returns No
Aux Sends No - Internal Effects Processor
Aux Returns No - Internal Effects Processor
Inserts No
BUS (Group) Outputs Stereo Output Only
Main Output Speaker Output: Stereo Speakon & 1/4" Phone
Tape I/O Rec Out: Left / Right RCA Phono
Monitor Outputs Monitor Out: Stereo Headphone 1/4" Phone Output
EQ Section Graphic EQ Main (Stereo) and Monitor Output:
7 Band (125, 250, 500, 1 k, 2 k, 4 k, 8 kHz)
Channels 1 through 12:
High, Mid and Low Controls
Solo/Mute Stand-By Mode Switch mutes channels 1 through 8
Channel Level Control Rotary Dial Controls
Trim/Gain Control No
Phantom Power 15 Volts
Metering Main (Stereo): L/R 5-Segment Peak LEDs
Monitor: Mono 5-Segment Peal LEDs
Frequency Response 20Hz - 20kHz, ref to the nominal output level @ 1kHz
Signal-to-Noise Ratio Equivalent Input Noise, -115 dBu, Rs = 150 CH 1-4 MIC/LINE: MIC
Total Harmonic Distortion (THD) Less than 0.5 % (THD+N)
+14 dB @ 20 Hz, 1 kHz, 20 kHz, GAIN control: all nominal
Power Supply 120 V 60 Hz, 450 W
Dimensions 17.40 x 10.78 x 11.26" (442 x 274 x 286mm)
Weight 22 lbs. (10 kg)
Packaging Info
Package Weight 22.15 lb
Box Dimensions (LxWxH) 22.0 x 15.4 x 14.6"
The user manual for the Yamaha EMX-212S Stereo Powered Mixer EMX212S can be downloaded in .pdf format if it did not come with your new sound reinforcement mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Yamaha users keep a unique electronic library for Yamaha sound reinforcement mixerss, where you can use our link to download the user manual for the Yamaha EMX-212S Stereo Powered Mixer EMX212S.

The user manual lists all of the functions of the Yamaha EMX-212S Stereo Powered Mixer EMX212S, all the basic and advanced features and tells you how to use the sound reinforcement mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Yamaha service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Yamaha EMX-212S Stereo Powered Mixer EMX212S. User manuals are also available on the Yamaha website under Pro Audio - Live Sound - Sound Reinforcement Mixers.
