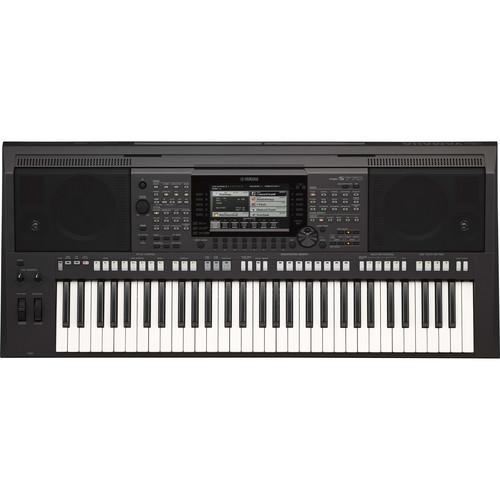

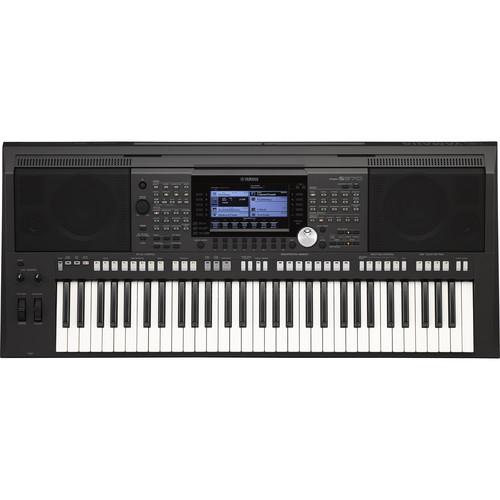

Click to enlarge image
We recommend checking out our discussion threads on the Yamaha PSR-S970 - Arranger Workstation PSRS970,
which address similar problems with connecting and setting up Arranger Keyboards Yamaha.
User manual for the Yamaha PSR-S970 - Arranger Workstation PSRS970
The user manual for the Yamaha PSR-S970 - Arranger Workstation PSRS970 provides
necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Arranger Keyboards.
The PSR-S970 from Yamaha is an arranger workstation that combines a wide range of sounds together with powerful performance features. Covering a multitude of styles, the keyboard brings the experience of performing in a band to the solo keyboard player. Two assignable live controllers, a modulation wheel and two assignable foot pedal inputs ensure total control over voices, styles, effects, and other functions during live performance.
A new DJ Styles feature a collection of chord progressions that eliminate the need for continuous chord changes with the left hand. The sampled sounds are complimented by percussion ensembles and drums recorded by world-class musicians in studios around the globe, while a Synth Vocoder function allows for using the user's voice for synthesizing the internal sounds. A Vocal Harmony 2 system adds harmonies with control provided over the pitch, level, and number of harmonies added, ensuring the vocals are always present.
The arranger includes distortion and reverb effects taken from the Tyros 5 synthesizer, delivering an authentic and natural sound with effortless editing of effect parameters via an intuitive interface. The company's Virtual Circuitry Modeling (VCM) technology also simulates phaser, wah, compressor, and phaser effects at the circuit level. Sound expansion is available using the 512 MB of on-board expansion memory. And to enhance practicing and performance, Yamaha Chord Tracker app for iPhone and iPad (sold separately) instantly identifies and extracts any chord sequence from an audio track stored on the keyboard.
If you own a Yamaha arranger keyboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Yamaha PSR-S970 - Arranger Workstation PSRS970 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Yamaha PSR-S970 - Arranger Workstation PSRS970:
Preset Styles: 450 Fingering: Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard Style Control: 3 x Intro, 4 x Main Variation, 4 x Fill, Break, 3 x Ending
Other Features Music Finder: 2,500 Records One Touch Setting (OTS): 4 for each Style
Expandability Expansion Style: Yes Expansion Audio Style: Approximately 128 MB maximum
Compatibility Style File Format, Style File Format GE
Songs
Preset 5 Sample songs
Recording Number of songs: Unlimited (dependent on drive capacity) Tracks: 16 Data Capacity: Approximately 300 KB per song Recording Function: Quick recording, multi recording, step recording
Compatible Data Format Playback: SMF (Format 0 and 1), XF Recording: SMF (Format 0)
Multi Pads
Number of Preset Multi Pad Banks: 188 banks x 4 pads Audio Link
Functions
Registration Number of Buttons: 8 Control: Registration Sequence, Freeze
Lesson/Guide Lesson/Guide: Follow Lights, Any Key, Karao-Key, Your Tempo Performance Assistant Technology (PAT): Yes
Demo/Help Demonstration
Overall Controls Metronome Tempo Range: 5 to 500 BPM, tap tempo Transpose: -12 to +12 Tuning: 414.8 - 440 - 466.8 Hz Octave button 9 x Scale types
Miscellaneous Direct Access Text Display Function Wallpaper Customization
Voices Harmony/Echo (with arpeggio) Panel Sustain Mono/Poly Voice information
Styles Style Creator Style Recommender OTS Information
Songs Song Creator Score Display Function Lyrics Display Function
Multi Pads Multi Pad Creator
Audio Recorder/Player Maximum Recording Time: 80 minutes per song Recording: WAV format 44.1 kHz sample rate, 16-bit resolution, stereo) Playback: WAV format 44.1 kHz sample rate, 16-bit resolution, stereo), mp3 (MPEG-1 Audio Layer-3: 44.1/48 kHz sample rate, 64-320 kbps and variable bit rate, mono/stereo) Time Stretch Pitch Shift Vocal Cancel
Storage and Connectivity
Storage Internal Memory: Approximately 13 MB External Drives: USB flash memory (via USB to Device)
Connectivity Headphones Foot Pedal (1 Sustain, 2 Articulation, Function Assignable) 1 x Microphone/Guitar In MIDI In/Out AUX In stereo mini jack L/L+R, R line-out RGB Out USB to Device USB to Host
Amplifiers and Speakers
Amplifiers: 2 x 15 W Speakers: 2 x 5.1" (13 cm), 2 x 2" (5 cm)
Power Requirements
PA-300C or equivalent 20 W power consumption Auto Power Off function
