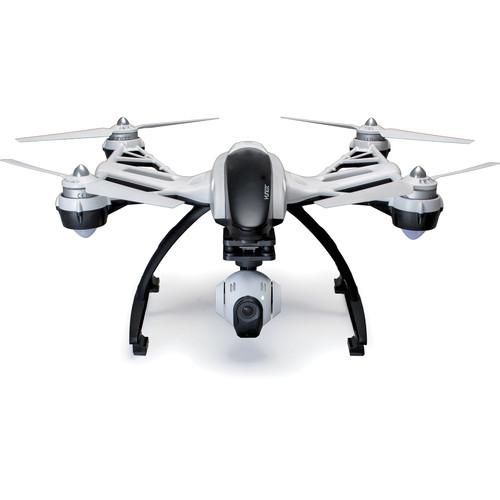

A completion level of ready-to-fly (RTF) means this version of the Q500+ Typhoon Quadcopter with CGO2-GB+ Camera from Yuneec comes factory-assembled and that a pre-bound transmitter/ground station unit (radio controller) is included. More than just an RC multi-rotor, the Q500+ is designed for APV - aerial photography and video. To this end, it incorporates the CGO2-GB+, a 3-axis gimbal-stabilized camera updated from the original CGO2-GB+ with a new lens and audio recording capability. As before, it captures 1080p video at up to 60 fps, and shoots photos at 16-megapixels.

The Q500+ is bundled with the ST10+ Personal Ground Station, at 10-channel, 2.4 GHz transmitter and 5.8 GHz video receiver rolled into one hand-held unit. In addition to traditional RC joysticks to pilot the quadcopter, there is a built-in Android mobile device which boasts a 5.5" touchscreen - a bump from the original ST10, which has a 4.5" screen. It allows you to view an FPV (first-person view) video image from the camera along with telemetry data superimposed, as well as access settings not available through normal transmitter.

As part of the RTF bundle, if features one 5400mAh flight battery, providing up to 25 minutes flying per charge - depending on wind-resistance and other factors.
If you own a YUNEEC aerial imaging platforms & drones and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the YUNEEC Q500 Typhoon Quadcopter with CGO2-GB YUNQ51SBRTFUS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for YUNEEC Q500  Typhoon Quadcopter with CGO2-GB YUNQ51SBRTFUSDownload user manual for YUNEEC Q500 Typhoon Quadcopter with CGO2-GB YUNQ51SBRTFUS
(PDF file, 2.97 MB)
Additional parameters of the YUNEEC Q500 Typhoon Quadcopter with CGO2-GB YUNQ51SBRTFUS:
Performance
Flight Time Up to 25 minutes (depending on flying conditions)
Maximum Flying Height 400' / 121.9 m above ground level

Note: Adjustable via the Q500 GUI
Maximum Rotational Velocity 65°/s
Maximum Bank Angle 35°
Maximum Climb Rate Smart and Angle Mode: 9.8 fps / 3 m/s
Maximum Descent Rate Smart and Angle Mode: 6.6 fps / 2 m/s
Takeoff Weight With Battery and CGO2-GB Camera: 3.7 lb / 1.7 kg
FPV Camera
Model CGO2-GB+
Focus Fixed
Resolution Video: 1080p at 60, 50 or 48 fps
Photo: 16 MP
White Balance Automatic
Audio Audio recording via integrated microphone (turn on/off with app)
Recording Media microSDHC/XC Class 10: 4 to 128 GB
Gimbal Control Angle Accuracy: ±0.02°
Video Transmitter Frequency: 5.8 GHz
Transmit Power: 500 mA (average) to 600 mA (peak) at 12 V (7.2 W maximum) Range: Up to 984.3' / 300 m line-of-sight
Power Requirements 7 to 14 VDC (powers from flight battery)
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Temperature 32 to 122°F / 0 to 50°C
Dimensions 4.5 x 5.3 x 2.9" / 115 x 135 x 74 mm
Weight 6.5 oz / 185 g
Flight Battery
Capacity 5400 mAh
Chemistry Lithium-polymer
Voltage 3S (11.1 V)
Charger
Model SC 3500-3 Balancing Smart Charger
Supported Chemistries Lithium-polymer
Charge Voltage 12.6 VDC; 3.5 A / 45 W maximum
Fuse 7.5 A
Power Requirements 10.5 to 15 VDC; 5 A (100 to 240 VAC adapter included)
Transmitter
Model ST10+ Personal Ground Station
Frequency Control Channels: 2.4 GHz
Video Receiver: 5.8 GHz
Channels 10
Flight Modes Smart
Angle
Home Modes
Operating System Android
Number of Channels 10
Range Control Signal: Up to 2624.7' / 400 m line-of-sight under optimal conditions
Display Size: 5.5"
Interface: Capacitive multi-touch
OSD Flight systems telemetry data can be viewed on-screen
Feedback Tactile (vibrating) and audible feedback
Power Requirements Built-in Battery:
3.6 V; 5200 mAh, 18.7, Wh
Charger 5 V USB charging (AC adapter included)
General
Dimensions Height: 9.4" / 240 mm
Width: 16.5" / 420 mm
Diagonal Length without Rotor Blades: 22.2" / 565 mm
Propeller/Main Rotor Diameter: 13" / 330 mm
Weight 2.5 lb / 1.1 kg
Packaging Info
Package Weight 16.1 lb
Box Dimensions (LxWxH) 19.5 x 18.9 x 12.3"
The user manual for the YUNEEC Q500 Typhoon Quadcopter with CGO2-GB YUNQ51SBRTFUS can be downloaded in .pdf format if it did not come with your new aerial imaging platforms & drones, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other YUNEEC users keep a unique electronic library for YUNEEC aerial imaging platforms & droness, where you can use our link to download the user manual for the YUNEEC Q500 Typhoon Quadcopter with CGO2-GB YUNQ51SBRTFUS.

The user manual lists all of the functions of the YUNEEC Q500 Typhoon Quadcopter with CGO2-GB YUNQ51SBRTFUS, all the basic and advanced features and tells you how to use the aerial imaging platforms & drones. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from YUNEEC service.
