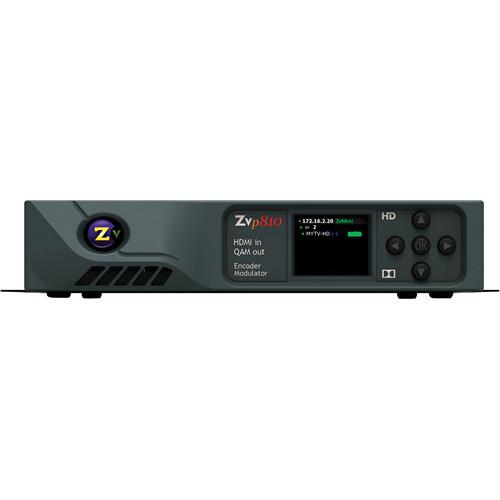

The ZvPro 810 HDMI Encoder / QAM Modulator from ZeeVee lets you convert HDMI video input signals into digital cable channels and distribute them to an unlimited number of HDTVs over your existing coaxial cabling. The ZvPro 810 outputs 1080p/i, 720p, and 480p/i video signals, and features a single unencrypted HDMI input channel, with a 3.5mm analog audio input, and composite video input for closed captioning support.

The ZvPro 810 uses QAM RF modulation to turn an A/V source into a digital TV channel that is read by the digital tuner found in most HDTVs. To send the signal to additional TVs, you simply split your coax output by means of a splitter. You can send one coaxial output to hundreds, or even thousands of HDTVs by use of additional splitters. This eliminates the need for having a receiver box, signage player, or other video device at each TV in your facility.

The chassis is constructed from metal and is rack mountable with an optional 1U rack mount kit. The ZvPro 810 is ideal for use in sports bars, corporate offices, commercial spaces, or other venues with existing coaxial cabling.
If you own a ZeeVee rf equipment and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ZeeVee ZvPro 810 HDMI Encoder / QAM Modulator ZVPRO 810 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ZeeVee ZvPro 810 HDMI Encoder / QAM Modulator ZVPRO 810:
Inputs & Outputs
HDMI Video Input HDMI 1.3
HDMI Compliance HDMI 1.3 Compliant, backwards compatible to DVI 1.0 specifications
Output 45 dBmV RF coaxial
Closed Captions Composite video input
EIA/CEA-608 captions accepted
Analog Audio Input 75 Ohm, 0 to 0.7 V at Line-level output
3.5 mm stereo
Audio Output 1 x 3.5mm delayed matched audio output, 0 to 2000 ms
Encoding Internally encoded into Dolby Digital AC-3 or MPEG1 Layer 2 (varies by region)
Video Encoder
Encoder Video Profile MPEG2 HD Profile 2: ISO13818-2 MP@HL
Traffic Shaping Variable bit rate
Video Transport Bit Rate 49.76 Mbps
Video Encoding Data Rates: Variable, 10 to 24 Mbs per channel Average Data Rate: 18 Mbs per channel
Latency Programmable 100 to 400 msec
Color Profile 4:2:0
GOP Size 24
Video, Audio PID Programmable
Program Information Programmable
Audio Encoder
Encoder Audio Profile ATSC A/52, Dolby(r) Digital (AC-3) or MPEG-2 Layer 1 (varies by region)
Modulator
Modulation Type QAM 256 (ITU-T J83 Annex B) Interleaving modes: (64,2) only OR DVB-C, QAM 256 (ITU-T J83 Annex A) (varies by region)
Cable Standard HRC, IRC, STD, or User defined (varies by region)
Frequency Range Frequency Agile from 54 to 864 MHz
  • 2 kHz resolution
  • +/- 30 ppm accuracy
  • +/- 35 ppm stability
Output Power +45 dBmV typical
Output Level Adjustment 25 - 45 dBmV in 1dBmV steps
Modulation Error Ratio 38 dB typical
I/Q Amplitude Imbalance < 1% typical
Spectral Tilt Less than or equal to 1 dB over 6 MHz typical
Control/Setup
Network Interface 10/100 Mbps Ethernet via RJ45 connection
IP address via DHCP or set by user
HTML/Javascript served web interface
Telnet connection for CLI scripting
Display & Indicators Front panel color display
General
Mounting Shelf mount flange or rack ears (ordered separately), 1RU high
Enclosure Type Metal
Cooling Internal cooling fan with front inlet and rear exhaust
Power 100-240 VAC 50/60 Hz, 36 W max rated
18 W Typical consumption
IEC 60320-C14
Temperature Operating: 32 to 113°F (0 to 45°C)
Humidity 10 to 80%, non-condensing
Vibration NSTA 1A in carton
MTBF 45,000 hours
Compliance FCC Class A, IEC60065, EN61000, CE, RoHS
Dimensions 8.00 x 10.00 x 1.75" (20.32 x 25.40 x 4.45 cm)
Weight 5.0 lb (2.3 kg)
Packaging Info
Package Weight 4.95 lb
Box Dimensions (LxWxH) 15.2 x 12.5 x 2.9"
The user manual for the ZeeVee ZvPro 810 HDMI Encoder / QAM Modulator ZVPRO 810 can be downloaded in .pdf format if it did not come with your new rf equipment, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ZeeVee users keep a unique electronic library for ZeeVee rf equipments, where you can use our link to download the user manual for the ZeeVee ZvPro 810 HDMI Encoder / QAM Modulator ZVPRO 810.

The user manual lists all of the functions of the ZeeVee ZvPro 810 HDMI Encoder / QAM Modulator ZVPRO 810, all the basic and advanced features and tells you how to use the rf equipment. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ZeeVee service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ZeeVee ZvPro 810 HDMI Encoder / QAM Modulator ZVPRO 810. User manuals are also available on the ZeeVee website under Professional Video - Signal Processing & Distribution - RF Equipment.
