User manual Zoom G1Xon Multi-Effects Guitar Pedal with Expression ZG1XON

Operating instructions and pdf manual for use - Zoom G1Xon Multi-Effects Guitar Pedal with Expression ZG1XON User manual, User manual Zoom G1Xon Multi-Effects Guitar Pedal with Expression ZG1XON, Zoom, G1Xon, Multi-Effects, Guitar, Pedal, with, Exp


User manual for Zoom G1Xon Multi-Effects Guitar Pedal with Expression ZG1XON

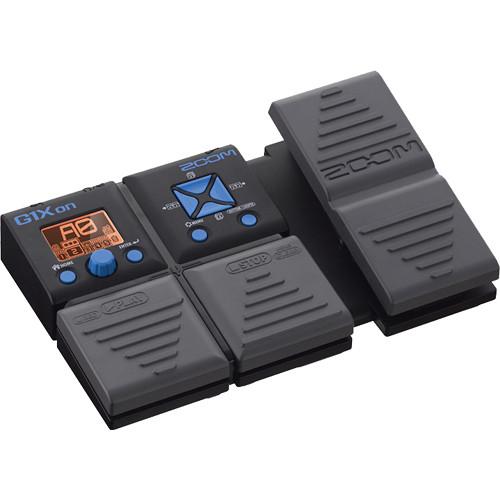

Zoom G1Xon Multi-Effects Guitar Pedal with Expression ZG1XON
  • Manufacturer: Zoom
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Effects Pedals
  • Safety instructions
  • Startup and operation of the effects pedals
  • Tips for setting up your Zoom
  • Settings and expert assistance
  • Contact Zoom service
  • Troubleshooting
  • Warranty information
  • Price: 70 USD
We recommend checking out our discussion threads on the Zoom G1Xon Multi-Effects Guitar Pedal with Expression ZG1XON, which address similar problems with connecting and setting up Effects Pedals Zoom.



User manual for the Zoom G1Xon Multi-Effects Guitar Pedal with Expression ZG1XON

The user manual for the Zoom G1Xon Multi-Effects Guitar Pedal with Expression ZG1XON provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Effects Pedals.

The Zoom G1Xon Multi-Effects Guitar Pedal with Expression Pedal offers guitarists 105 high-quality effects, including varieties of distortion, compression, modulation, delay, reverb and amp models. It allows you to chain up to 5 effects simultaneously for customizing your sound to fit your personal playing style. You can connect headphones to the output jack and practice along with the 68 built-in rhythm accompaniment patterns, or you can connect your portable music player to the auxiliary input jack if you want to jam along with your own backing tracks. Additionally, the unit comes with five expression pedal-controlled effects, allowing for more expressive riffs and solos.

The G1Xon boasts an onboard chromatic tuner that supports all standard guitar tunings, including open and drop tunings. It has a phrase looper that enables you to record up to 30 seconds of CD-quality audio, and it can be powered by 4 AA batteries (not included).
If you own a Zoom effects pedals and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Zoom G1Xon Multi-Effects Guitar Pedal with Expression ZG1XON in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Zoom G1Xon Multi-Effects Guitar Pedal with Expression ZG1XON:
Effects 105 (Ver.1.2)
Simultaneous Effects 5
Effect Patches 100
Sampling Frequency 44.1 kHz
A/D Conversion 24-bit, 128 times over-sampling
D/A Conversion 24-bit, 128 times over-sampling
Signal Processing 32-bit floating point and 32-bit fixed point
Frequency Response 20 Hz to 20 kHz +1 dB -3 dB (10 kΩ load)
Display LCD
Input Input:
Standard mono 1/4" phone jack

Rated input level: -20 dBm

Input impedance (line): 470 kΩ


Aux in:
Mini stereo 1/8" phone jack

Rated input level: -10 dBm

Input impedance (line): 1 kΩ
Output Standard stereo 1/4" phone jack

Maximum line output level: +2 dBm (output impedance load of 10 kΩ or more)

Maximum headphones output level: 17 mW + 17 mW (into 32 Ω load)
S/N 119 dB
Noise Floor -97 dBm
Power AC adapter (optional): DC 9V center-negative, 500 mA

Battery: AA size (LR6) battery x 4

Continuous battery operation time: 20 hours when using 4 AA alkaline batteries

USB: USB power
USB Firmware update
Dimensions 6.1 x 9.3 x 2.0" (155 x 237 x 50 mm)
Weight 22.6 oz (640 g), without batteries
Packaging Info
Package Weight 2.2 lb
Box Dimensions (LxWxH) 10.1 x 7.2 x 2.5"
The user manual for the Zoom G1Xon Multi-Effects Guitar Pedal with Expression ZG1XON can be downloaded in .pdf format if it did not come with your new effects pedals, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Zoom users keep a unique electronic library for Zoom effects pedalss, where you can use our link to download the user manual for the Zoom G1Xon Multi-Effects Guitar Pedal with Expression ZG1XON.

The user manual lists all of the functions of the Zoom G1Xon Multi-Effects Guitar Pedal with Expression ZG1XON, all the basic and advanced features and tells you how to use the effects pedals. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Zoom service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Zoom G1Xon Multi-Effects Guitar Pedal with Expression ZG1XON. User manuals are also available on the Zoom website under Pro Audio - Musical Instruments - Effects Pedals.
