User manual Zoom H5 Handy Recorder with Interchangeable Microphone H5

Operating instructions and pdf manual for use - Zoom H5 Handy Recorder with Interchangeable Microphone H5 User manual, User manual Zoom H5 Handy Recorder with Interchangeable Microphone H5, Zoom, H5, Handy, Recorder, with, Interchangeable, Micropho


User manual for Zoom H5 Handy Recorder with Interchangeable Microphone H5

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Zoom H5 Handy Recorder with Interchangeable Microphone H5
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Portable Digital Recorders
  • Safety instructions
  • Startup and operation of the portable digital recorders
  • Tips for setting up your
  • Settings and expert assistance
  • Contact service
  • Troubleshooting
  • Warranty information
  • Price: 270 USD
We recommend checking out our discussion threads on the Zoom H5 Handy Recorder with Interchangeable Microphone H5, which address similar problems with connecting and setting up Portable Digital Recorders .



User manual for the Zoom H5 Handy Recorder with Interchangeable Microphone H5

The user manual for the Zoom H5 Handy Recorder with Interchangeable Microphone H5 provides necessary instructions for the proper use of the product Pro Audio - Recording - Portable Digital Recorders.

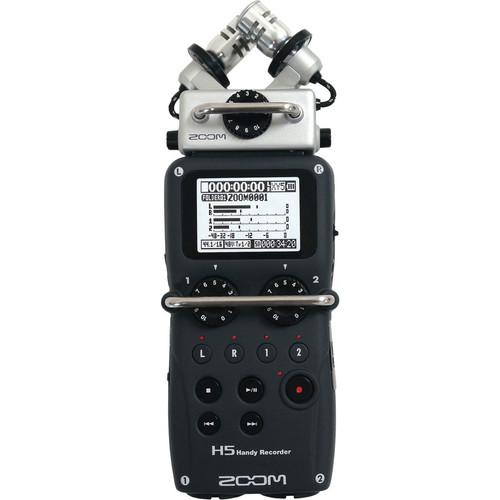

The H5 Handy from Zoom is a compact, portable handheld digital recorder that is capable of four-track recording and features an interchangeable, modular microphone system. The recorder ships with an XY microphone capsule and is compatible with the existing line of H6 modules including the optional shotgun mic and XLR/TRS input modules.

The included XY stereo mic module provides two matched unidirectional condenser microphones set at a 90 degree angle, and features a built-in shockmount system and a maximum SPL of 140dB. Additionally, the recorder is equipped with two inputs for external sources, allowing you to record simultaneously with the included stereo XY mic for a total of four input channels. Each input is controllable by its own analog gain knob, and also has a -20dB pad.

The recorder also has an LCD screen and a side-mounted toggle control for navigating through the menu options. It gives you fast access to transport functions, offering physical control buttons right underneath the screen, and conveniently stores its recorded audio to external SD cards.

In addition to the detachable X/Y capsule, the recorder also ships with a foam windscreen, a 2GB SD card, two AA batteries, a USB cable, WaveLab LE (download), Cubase LE (download), and a hard plastic case.
If you own a portable digital recorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Zoom H5 Handy Recorder with Interchangeable Microphone H5 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Zoom H5 Handy Recorder with Interchangeable Microphone H5Download user manual for Zoom H5 Handy Recorder with Interchangeable Microphone H5
(PDF file, 2.55 MB)
Additional parameters of the Zoom H5 Handy Recorder with Interchangeable Microphone H5:
General
Recording Media SD card: 16MB to 2GB
SDHC card: 4GB to 32GB
Display Backlit LCD (128 x 64 pixels)
Power Requirements AA size (LR6) battery x 2
AC adapter (AD-17 (DC5V/1A/USB-type, optional)
USB bus power
I/O
Inputs L/R [XYH-5 X/Y mic]:
Mic Type: Unidirectional
Sensitivity: -45 dB, 1 kHz at 1 Pa
Input Gain: -∞ to 52 dB
Max Sound Pressure Input: 140 dB SPL

Mic/Line In:
Connector: 1/8" stereo mini jack
Input Gain: -∞ to 52 dB
Input Impedance: 2 kΩ or more
Plug-In Power: 2.5V supported
Backup Recording: -12 dB lower than set L/R input gain

Inputs 1/2:
Connectors: XLR / TRS combo jacks (XLR: Pin 2 hot / TRS: Tip hot)
Input Gain (PAD OFF): -∞ to 55.0 dB
Input Gain (PAD ON): -∞ to 35.0 dB
Input Impedance: 1.8 kΩ or more
Max Input Level: +22 dBu (PAD ON)
Phantom Power: +12V /+24V /+48V
Equivalent Input Noise (EIN): -120 dBu or less
Outputs Line Out:
Connector: 1/8" stereo mini jack
Rated Output Level: -10 dBm
Output Load Impedance: 10 kΩ or more

Phone Out:
Connector: 1/8" stereo mini jack
Output Level: 20 W + 20 W into 32 Ω load

Built-in speaker:
400 mw 8 Ω mono
USB Mass Storage Class Operation:
Class: USB 2.0 high speed


Audio Interface Operation:

Multitrack Mode:
Class: USB 2.0 high speed
Sampling Frequency: 44.1/48 kHz
Bit Rate: 16-/24-bit
Inputs / Outputs: 4 / 2

Stereo Mode:
Class: USB 2.0 full speed
Sampling Frequency: 44.1/48 kHz
Bit Rate: 16-bit
Inputs / Outputs: 2 / 2
USB Bus Powered Operation: Yes
iPad Operation: Supported in stereo mode only
Recording
Recording Formats Stereo Mode:
WAV (BWF-compliant)
Sampling Frequency: 44.1/48/96 kHz
Bit Rate: 16-/24-bit (Stereo)
Maximum Simultaneous Recording Tracks: 2
MP3
Sampling Frequency: 44.1 kHz
Bit Rate: 48/56/64/80/96/112/32/160/192/224/256/320 kbps

Multi-Track Mode:
WAV (BWF-compliant)
Sampling Frequency: 44.1/48 kHz
Bit Rate: 16-/24-bit (mono/stereo)
Maximum Simultaneous Recording Tracks: 6 (L/R + INPUT 1/2 + L/R backup)



Physical Specifications
Dimensions H5: 2.3 x 5.3 x 1.7" (66.8 x 135.2 x 42.1 mm)
XYH-5 X/Y mic:2.6 x 2.4 x 1.6" (65.5 x 62.2 x 41 mm)
Weight H5: 6.2 oz (176.0 g)
XYH-5 X/Y mic: 3.3 oz (94.0 g)
Packaging Info
Package Weight 1.85 lb
Box Dimensions (LxWxH) 9.1 x 6.6 x 3.5"
The user manual for the Zoom H5 Handy Recorder with Interchangeable Microphone H5 can be downloaded in .pdf format if it did not come with your new portable digital recorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other users keep a unique electronic library for portable digital recorderss, where you can use our link to download the user manual for the Zoom H5 Handy Recorder with Interchangeable Microphone H5.

The user manual lists all of the functions of the Zoom H5 Handy Recorder with Interchangeable Microphone H5, all the basic and advanced features and tells you how to use the portable digital recorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Zoom H5 Handy Recorder with Interchangeable Microphone H5. User manuals are also available on the website under Pro Audio - Recording - Portable Digital Recorders.
