User manual Zylight F8 LED Fresnel (Tungsten) 26-01019

Operating instructions and pdf manual for use - Zylight F8 LED Fresnel (Tungsten) 26-01019 User manual, User manual Zylight F8 LED Fresnel (Tungsten) 26-01019, Zylight, F8, LED, Fresnel, Tungsten, 26-01019, Video


User manual for Zylight F8 LED Fresnel (Tungsten) 26-01019

Zylight  F8 LED Fresnel (Tungsten) 26-01019
  • Manufacturer: Zylight
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Continuous Lighting - LED Lights
  • Safety instructions
  • Startup and operation of the led lights
  • Tips for setting up your Zylight
  • Settings and expert assistance
  • Contact Zylight service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Zylight F8 LED Fresnel (Tungsten) 26-01019, which address similar problems with connecting and setting up LED Lights Zylight.



User manual for the Zylight F8 LED Fresnel (Tungsten) 26-01019

The user manual for the Zylight F8 LED Fresnel (Tungsten) 26-01019 provides necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - LED Lights.

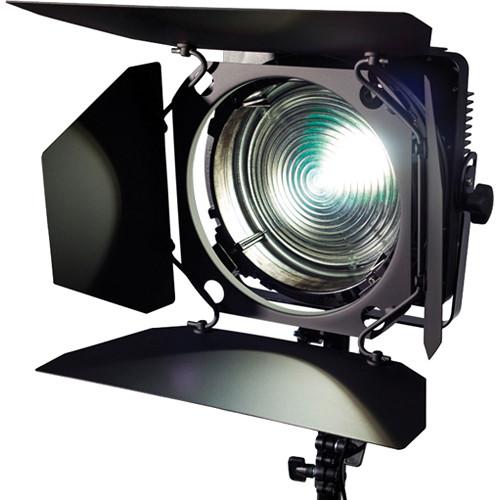

The F8 LED Fresnel (Tungsten) from Zylight is the next generation of Fresnel lights. All of the hallmarks of a traditional Fresnel light are present; single shadow beam shaping through barn doors, continuous focusing and a smooth light field. The Zylight F8 adds wireless and DMX control, water-resistant IP54 rating, and very rugged construction for field reliability. Available in both Tungsten and Daylight color temperature versions, the Zylight F8 is extremely compact, durable and one of the most versatile Fresnel lights on the market.
If you own a Zylight led lights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Zylight F8 LED Fresnel (Tungsten) 26-01019 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Zylight  F8 LED Fresnel (Tungsten) 26-01019Download user manual for Zylight F8 LED Fresnel (Tungsten) 26-01019
(PDF file, 1.79 MB)
Additional parameters of the Zylight F8 LED Fresnel (Tungsten) 26-01019:
Specifications
    Source LED
    Lens 8.0" (20.3 cm) Round Fresnel
    Mount Yoke mount: 5/8" (16 mm) female
    Power Requirements 120-240VAC, 50/60Hz
    10-20VDC
    Battery option: 14.4VDC with optional V-Mount or Anton Bauer Gold Mount adapter
    Power Consumption 110W max. (8A @ 14V)
    Input Plug XLR 4-Pin
    Wireless Frequency 2.45 GHz
    Channels 9 User selectable wireless channels
    DMX Interface Yes
    Beam Angle Variable spot to flood: 16 - 70 degrees
    Dimming 100-0% with minimal color shift
    Color Temperature 3,200K
    CRI 97+
    IP Rating IP54
    Lamp Life 50,000 hours
    Compliance RoHS, FCC
    Flicker Correction Flicker-free at 5,600 fps
    Dimensions 15 x 12.6 x 4.6" [382 x 319 x 97 mm]
    Weight 10.9 lb (4.9 kg)
    Packaging Info
    Package Weight 19.5 lb
    Box Dimensions (LxWxH) 18.8 x 17.1 x 11.7"
    The user manual for the Zylight F8 LED Fresnel (Tungsten) 26-01019 can be downloaded in .pdf format if it did not come with your new led lights, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Zylight users keep a unique electronic library for Zylight led lightss, where you can use our link to download the user manual for the Zylight F8 LED Fresnel (Tungsten) 26-01019.

    The user manual lists all of the functions of the Zylight F8 LED Fresnel (Tungsten) 26-01019, all the basic and advanced features and tells you how to use the led lights. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Zylight service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Zylight F8 LED Fresnel (Tungsten) 26-01019. User manuals are also available on the Zylight website under Lighting & Studio - Continuous Lighting - LED Lights.
