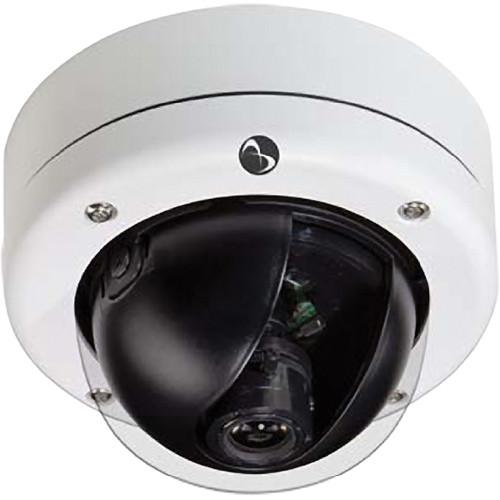

The white Discover 300 Mini-Dome Outdoor Camera with Varifocal Lens from American Dynamics uses a 1/3” Format Interline CCD sensor and DSP (Digital Signal Processing) to deliver clear picture quality at a resolution of 600 TVL. This mini-dome camera offers BLC (Backlight Compensation), AGC (Automatic Gain Control), auto iris, and AWB (Auto White Balance). Optimal white balance is achieved through pre-defined or user-customized settings to provide clear images. Low light sensitivity renders sharp images in scenes with reduced lighting down to 0.5 lux.

The pivoting axis allows you to position the Discover 300 Outdoor Camera at exactly the angle you need, whether wall or ceiling mounted. No additional hardware is required for wall and ceiling mounting. This mini-dome camera features a varifocal auto iris lens and a 3-axis gimbal for a full 360° rotation pan, and 90° of tilt axis for maximum flexibility in scene selection. With up to 8 data privacy zones, you can configure the camera to conceal private areas in the camera’s field of view including the areas that are not subject to surveillance.

The Discover 300 Mini-Dome Outdoor Camera includes a high-impact vandal-resistant IP66-rated dome housing built to withstand harsh environments and provide complete protection against dust and other debris, and water damage. A heater (sold separately) helps regulate the camera temperature in cold weather. It is a reliable and easy-to-install camera designed for areas where a mixture of lighting conditions presents unique challenges.
If you own a American Dynamics wired analog & hd cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the American Dynamics Discover 300 Mini-Dome Outdoor ADCA3DWOC3N in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the American Dynamics Discover 300 Mini-Dome Outdoor ADCA3DWOC3N:
Imager 1/3˝ Format Interline CCD sensor
Horizontal Resolution 600 TVL
Active Pixel Count H x V: 768 x 494
Lens Varifocal
Iris Auto
Focal Length 9 to 22 mm
Aperture f/1.4
Scanning Frequency 2:1 Interlace
Illumination Minimum 0.55 lux (50 IRE, f/1.4, AGC maximum)
Iris Control DC auto
S/N Ratio 48 dB (100 IRE)
Synchronization Internal
Shutter Speed MES 1/60, FLK
1/250 to 1/100,000, auto
AGC (Automatic Gain Control) Low, middle, high, off
AGC Dynamic Range: 70 to 100 IRE
AES Auto luminance control 1/60 to 1/100,000 sec (maximum)
BLC 2 zone on, off, HLC
White Balance Auto
Auto White Balance Range ATW1 (2,700 to 9,700 K), ATW2 (2,000 to 20,000 K), AWC, manual
True Day/Night Control Auto, Color, B/W, External
Brightness 0 to 255 level
Sharpness 0 to 31 level
Digital WDR On, off
Noise Reduction On, off
Programmable Privacy Zones 8
Mirror On, off
On-Screen Display On, off
Connectors BNC Composite Video Output
Lens Connector DC, manual
Voltage 12 ± 10% VDC and 24 ± 20% VAC
Power Consumption 2.6 W maximum
Regulatory IP Rating: IP66
Emissions: FCC: Part 15, Class B, CE: EN61000, Class B
Immunity: CE: EN50130-4
Housing Polycarbonate, RAL 9003, Pantone 705
Environmental Operational Temperature: 14 to 122°F (-10 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Relative Humidity: 90% (non-condensing)

Operating temperature is -40 to 122°F (-40 to 50°C) with heater (sold separately)

Dimensions D x H: 5.35 x 3.70" (136.00 x 94.20 mm)
Weight 18.7 oz (530.0 g)
Packaging Info
Package Weight 2.5 lb
Box Dimensions (LxWxH) 7.2 x 7.2 x 5.1"
The user manual for the American Dynamics Discover 300 Mini-Dome Outdoor ADCA3DWOC3N can be downloaded in .pdf format if it did not come with your new wired analog & hd cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other American Dynamics users keep a unique electronic library for American Dynamics wired analog & hd camerass, where you can use our link to download the user manual for the American Dynamics Discover 300 Mini-Dome Outdoor ADCA3DWOC3N.

The user manual lists all of the functions of the American Dynamics Discover 300 Mini-Dome Outdoor ADCA3DWOC3N, all the basic and advanced features and tells you how to use the wired analog & hd cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from American Dynamics service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the American Dynamics Discover 300 Mini-Dome Outdoor ADCA3DWOC3N. User manuals are also available on the American Dynamics website under Surveillance - Surveillance Video - Wired Analog & HD Cameras.
