User manual Arri Arrilite 750 Plus L1.36700.A

Operating instructions and pdf manual for use - Arri Arrilite 750 Plus L1.36700.A User manual, User manual Arri Arrilite 750 Plus L1.36700.A, Arri, Arrilite, 750, Plus, L1.36700.A, Video


User manual for Arri Arrilite 750 Plus L1.36700.A

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

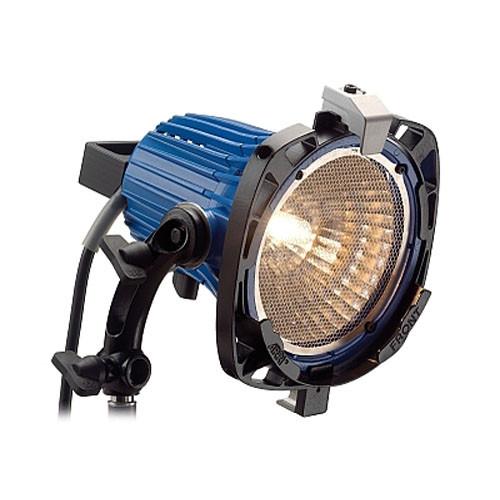

Arri  Arrilite 750 Plus L1.36700.A
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Continuous Lighting - Tungsten Lights
  • Safety instructions
  • Startup and operation of the tungsten lights
  • Tips for setting up your
  • Settings and expert assistance
  • Contact service
  • Troubleshooting
  • Warranty information
  • Price: 438 USD
We recommend checking out our discussion threads on the Arri Arrilite 750 Plus L1.36700.A, which address similar problems with connecting and setting up Tungsten Lights .



User manual for the Arri Arrilite 750 Plus L1.36700.A

The user manual for the Arri Arrilite 750 Plus L1.36700.A provides necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - Tungsten Lights.

The Arrilite 750 Plus from Arri is an enhanced version of the tried-and-true Arrilite open face line. Arri started with the basic design of the Arrilite 800 and optimized the reflector to increase output 21% using a 750W HPL lamp which uses a compact filament that concentrates the most light where it is efficient. The result is almost double the output.
If you own a tungsten lights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Arri Arrilite 750 Plus L1.36700.A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Arri  Arrilite 750 Plus L1.36700.ADownload user manual for Arri Arrilite 750 Plus L1.36700.A
(PDF file, 0.43 MB)
Additional parameters of the Arri Arrilite 750 Plus L1.36700.A:
Specifications
    Rating 750W
    Type Open face with parabolic facet reflector
    Socket (Lampholder) G 9.5
    Lens (Condenser) None
    Lamps 120V/230V: HPL 750W, 575W, 375W
    230V: 600W (GKV), 650W (FKR), 800W (HX800)
    Reflector (Mirror) Arrimax reflector
    Mounting 5/8" (16 mm)
    Yoke One-arm stirrup
    Cable 9.8' (3 m) w/ inline switch
    Focusing Yes
    Weight 3.55 lb (1.6 kg)
    Voltage 120 - 230V AC
    Dimensions Packed size: 10.24 x 8.66 x 11.81" (260 x 220 x 300 mm)
    Certification NRTL-US-C, CE, TÜV GS, CB, Protection Class IP 20
    Packaging Info
    Package Weight 5.5 lb
    Box Dimensions (LxWxH) 11.6 x 10.2 x 8.7"
    The user manual for the Arri Arrilite 750 Plus L1.36700.A can be downloaded in .pdf format if it did not come with your new tungsten lights, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other users keep a unique electronic library for tungsten lightss, where you can use our link to download the user manual for the Arri Arrilite 750 Plus L1.36700.A.

    The user manual lists all of the functions of the Arri Arrilite 750 Plus L1.36700.A, all the basic and advanced features and tells you how to use the tungsten lights. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Arri Arrilite 750 Plus L1.36700.A. User manuals are also available on the website under Lighting & Studio - Continuous Lighting - Tungsten Lights.
