User manual ART USB Mix 3-Channel Mixer and Computer Audio Interface USBMIX

Operating instructions and pdf manual for use - ART USB Mix 3-Channel Mixer and Computer Audio Interface USBMIX User manual, User manual ART USB Mix 3-Channel Mixer and Computer Audio Interface USBMIX, ART, USB, Mix, 3-Channel, Mixer, Computer, Aud


User manual for ART USB Mix 3-Channel Mixer and Computer Audio Interface USBMIX

Overall rating 3.5
Overall Rating: 3.5

70% of respondents would recommend this to a friend.
ART USB Mix 3-Channel Mixer and Computer Audio Interface USBMIX
  • Manufacturer: ART
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Analog Utility Mixers
  • Safety instructions
  • Startup and operation of the analog utility mixers
  • Tips for setting up your ART
  • Settings and expert assistance
  • Contact ART service
  • Troubleshooting
  • Warranty information
  • Price: 69 USD
We recommend checking out our discussion threads on the ART USB Mix 3-Channel Mixer and Computer Audio Interface USBMIX, which address similar problems with connecting and setting up Analog Utility Mixers ART.



User manual for the ART USB Mix 3-Channel Mixer and Computer Audio Interface USBMIX

The user manual for the ART USB Mix 3-Channel Mixer and Computer Audio Interface USBMIX provides necessary instructions for the proper use of the product Pro Audio - Recording - Analog Utility Mixers.

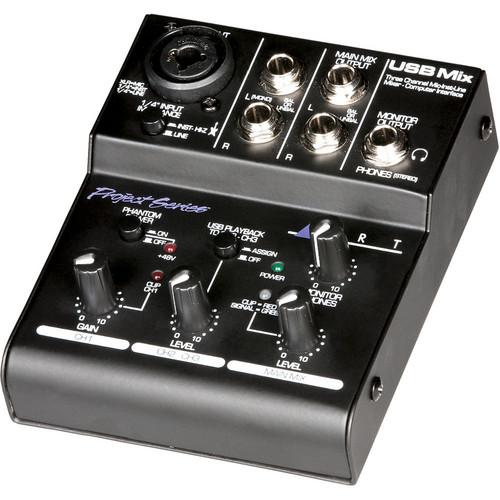

The USB Mix 3-Channel Mixer and Computer Audio Interface from ART is a compact and versatile mini mixer, ideal for home or mobile studios. It is also a computer interface that will convert analog input signals into digital USB signals that can be sent to your computer. The mixer has an XLR/TRS combo input that can be switched for mic or line use. It will even supply +48V phantom power to support condenser microphones. There are balanced 1/4" line inputs that accept stereo or mono sources. There are also 1/4" main outputs and a 1/4" headphone jack for convenient monitoring.

Independent gain and level controls are provided for each input, the main output, and the headphone output. The mixer has a USB 2.0 output that will send your audio to your computer for recording and editing. You can even switch USB playback to channels 2 and 3 for additional versatility. Audacity recording software is included so you can get started right away. When used with a computer, the mixer operates via USB bus power. When used without a computer, it is powered with the included AC adapter. A green/red LED shows signal and clip status.
If you own a ART analog utility mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ART USB Mix 3-Channel Mixer and Computer Audio Interface USBMIX in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for ART USB Mix 3-Channel Mixer and Computer Audio Interface USBMIXDownload user manual for ART USB Mix 3-Channel Mixer and Computer Audio Interface USBMIX
(PDF file, 0.5 MB)
Additional parameters of the ART USB Mix 3-Channel Mixer and Computer Audio Interface USBMIX:
Inputs 1 x XLR/TRS balanced/unbalanced mic/line input (ch 1)
2 x 1/4" balanced/unbalanced line inputs (ch 2/3, L/R)
Outputs 2 x 1/4" TRS balanced line outputs (main mix, L/R)
1 x 1/4" TRS stereo headphone jack (monitor output)
Input Impedance 240k ohms (instrument/Hi-Z)
20k ohms (line)
> 4k ohms (mic)
Output Impedance < 1k ohms (balanced 1/4")
< 500 ohms (unbalanced 1/4")
100 ohms (monitor)
Frequency Response 20 Hz - 20 kHz (+0/-1 dB)
Total Harmonic Distortion < 0.01% @ 1 kHz
CMRR > 54 dB typical
Phase Response All connections are phase coherent
Signal to Noise Ratio > 90 dB typical (ref 0 dBu)
EIN -120 dBu typical (XLR balanced, max gain)
-100 dBu typical (1/4")
Input Level +4 dBu (XLR)
+14 dBu (1/4")
Output Level +14 dBu (main mix)
+13 dBu (monitor)
Gain In to Main Out:
+53 dB (XLR)
+32 dB (1/4" ch 1)
+10 dB (1/4" ch 2-3)
In to USB:
+44 dB (XLR)
+23 dB (1/4" ch 1)
+1 dB (1/4" ch 2-3)
USB to Out:
+14 dB (main mix)
+13 dB (monitor)
Phantom Power Switch selectable, +48 VDC, filtered, current limited
AD/DA Conversion 16-bit, 44.1 kHz or 48 kHz, USB selectable from computer
0.4 ms A/D latency @ 44.1 kHz
Computer Interface USB 2.0 compliant
Windows 7, Vista, XP, 2000, ME, 98SE
Mac OS 9.1/OS X computers with native USB support
Linux
Chassis All steel with black finish
Power Requirements 5.0 VDC @ <500 mA (external) or USB bus powered @ 150 mA typical
Dimensions (HxWxD) 1.6 x 4 x 4.75" (41 x 101 x 121 mm)
Weight 1.1 lbs (0.5 kg) (with power supply and USB cable)
Packaging Info
Package Weight 1.65 lb
Box Dimensions (LxWxH) 9.3 x 6.3 x 3.7"
The user manual for the ART USB Mix 3-Channel Mixer and Computer Audio Interface USBMIX can be downloaded in .pdf format if it did not come with your new analog utility mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ART users keep a unique electronic library for ART analog utility mixerss, where you can use our link to download the user manual for the ART USB Mix 3-Channel Mixer and Computer Audio Interface USBMIX.

The user manual lists all of the functions of the ART USB Mix 3-Channel Mixer and Computer Audio Interface USBMIX, all the basic and advanced features and tells you how to use the analog utility mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ART service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ART USB Mix 3-Channel Mixer and Computer Audio Interface USBMIX. User manuals are also available on the ART website under Pro Audio - Recording - Analog Utility Mixers.
