User manual for the Atlona Mid-Span 24V HDBaseT Power Supply AT-PS-POCC
The user manual for the Atlona Mid-Span 24V HDBaseT Power Supply AT-PS-POCC provides
necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - DA & Extender/Repeater Accessories.

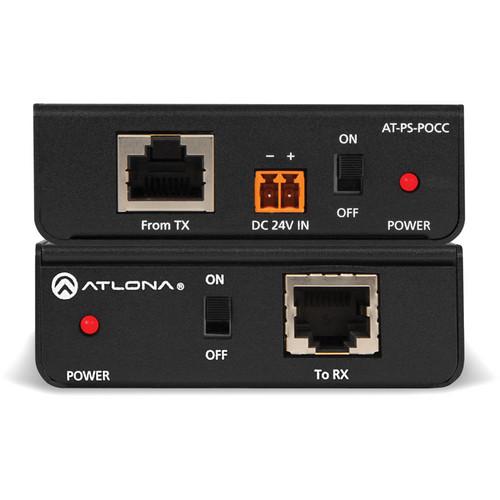

The Atlona Mid-Span 24V HDBaseT Power Supply will power any Atlona transmitter/receiver set that doesn't have local power, or any transmitter/receiver setup in which one of the items supports PoCc and the other doesn't. Both scenarios are valid as long as the products used have HDBaseT connections.
An example of the latter scenario is a setup including an older model Atlona product, as the older models did not support PoCc (Power Over Category Cable). This power supply is recommended strictly for Atlona products because they're designed to 24V power specifications.
|
If you own a Atlona da & extender/repeater accessories and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Atlona Mid-Span 24V HDBaseT Power Supply AT-PS-POCC in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Atlona Mid-Span 24V HDBaseT Power Supply AT-PS-POCC:
| Bandwidth | 10.2 Gbps | | Input / Output | Input: 1x RJ45
Output: 1x RJ45
Power: 1x captive screw (2-pin) | | Resolutions Supported | Video: up to 4K x 2K @ 30 Hz
VESA computer resolution: up to 1920 x 1200 | | Audio Supported | Supports up to Dolby TrueHD or DTS-HD Master Audio | | Distances Supported | 330 ft (100 m) @ 1080p over CAT5e+
230 ft (70 m) @ 4K x 2K over CAT6a/7
200 ft (61 m) @ 1080p over CAT6a/7
175 ft (53 m) @ 1080p over CAT5e/6
100 ft (30 m) @ 4K x 2K over CAT5e+ | | HDCP Compliant | Yes | | Certifications | CE, FCC, RoHS, cULus for power supplies | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | 1.0 x 2.9 x 2.8" (2.5 x 7.4 x 7.1 cm) | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 8.7 x 7.2 x 2.8" | |
