User manual for the Delvcam 7" FPV Monitor with 5.8GHz Wireless DELV-FPV-7
The user manual for the Delvcam 7" FPV Monitor with 5.8GHz Wireless DELV-FPV-7 provides
necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - FPV (First Person View) Components.

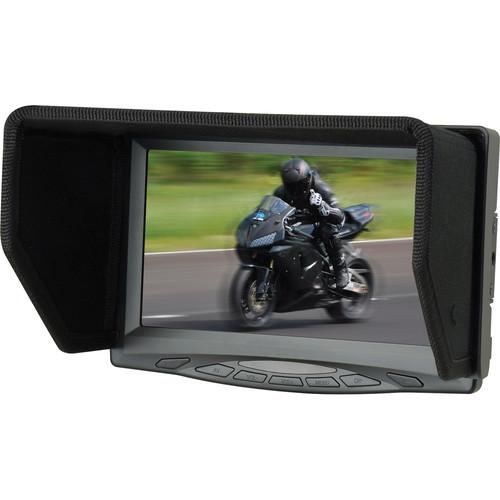

The Delvcam 7" FPV Monitor with 5.8GHz Wireless Receiver is purpose built for first-person viewing (FPV) of the wireless AV feed from your RC aircraft mounted camera. A built-in 5.8GHz wireless receiver capable of receiving signals at distances up to 1.2 miles (2 km) line of sight (depending on transmitter used). Unlike other monitors, the screen won't go blue or black when the signal gets weak; you'll still see a little "snow" and be able to see parts of your image rather than a complete loss.
The monitor supports both NTSC and PAL signals and provides a composite AV input and output. The LED backlight 7" LCD display has a resolution of 800 x 480 and a high 400cdm2 brightness for use in sunny conditions. The monitor is powered by 12 VDC using the include power cable and DC adapter, or with a single Canon LP-E6 or Sony NP-F970 type battery with the included battery plates. Also included with the monitor is sun shade, remote control, and video input/output cable.
|
If you own a Delvcam fpv (first person view) components and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Delvcam 7" FPV Monitor with 5.8GHz Wireless DELV-FPV-7 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Delvcam 7" FPV Monitor with 5.8GHz Wireless DELV-FPV-7:
| Type | 7" LCD, LED backlit | | Resolution | 800 x 480 | | Aspect Ratio | 16:9 | | Brightness | 400 cd/m2 | | Contrast Ratio | 500:1 | | Viewing Angle (H/V) | 140° / 120° | | Inputs | 1 x AV
1 x Antenna port | | Output | 1 x AV | | Receiver | 5.8 GHz, built-in wireless receiver
4 bands and 31 total channels | | Audio | Built-in speaker | | Power Requirements | 12 VDC | | Power Consumption | 6 W | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Dimensions (L x W x D) | 7.4 x 5.0 x 1.3" (18.8 x 12.7 x 3.2 cm) | | Weight | 14.6 oz (415 g) | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 11.339 x 9.291 x 2.913" | |
The user manual for the Delvcam 7" FPV Monitor with 5.8GHz Wireless DELV-FPV-7 can be downloaded in .pdf
format if it did not come with your new fpv (first person view) components, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Delvcam users keep a unique electronic library
for Delvcam fpv (first person view) componentss,
where you can use our link to download the user manual for the Delvcam 7" FPV Monitor with 5.8GHz Wireless DELV-FPV-7.
The user manual lists all of the functions of the Delvcam 7" FPV Monitor with 5.8GHz Wireless DELV-FPV-7,
all the basic and advanced features and tells you how to use the fpv (first person view) components.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Delvcam service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Delvcam 7" FPV Monitor with 5.8GHz Wireless DELV-FPV-7. User manuals are also
available on the Delvcam website under Camcorders - Aerial Imaging & Drones - FPV (First Person View) Components.
