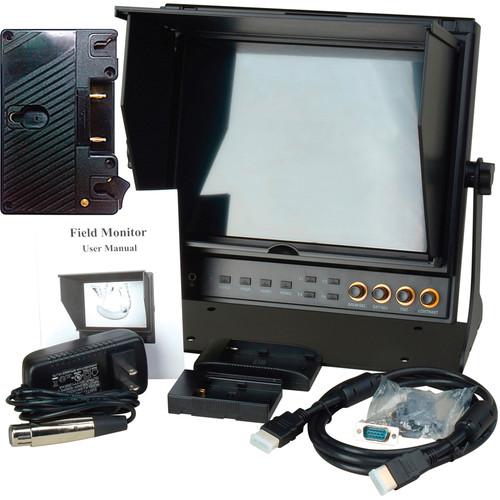

Delvcam's 9.7" Dual Input HDMI Monitor with AB Gold Mount Type Battery Plate & Sun Hood features a native 4:3 aspect ratio, supports video with resolution up to 1920 x 1080, and displays video with either a 4:3 or 16:9 aspect ratio. It features 1024 x 768 resolution, useful for displaying either SD (NTSC/PAL) or HD video, and it features advanced display tools such as peaking, false color, and histogram.

The display panel features 400 nit brightness with a 600:1 contrast ratio for a clear bright image, a 170° viewing angle for off axis viewing by those huddling around the monitor, and 1:1 pixel mapping. The included AB Gold mount type battery plate allows you to power the monitor from an optional professional sized battery brick.
If you own a Delvcam on camera monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Delvcam 9.7" Dual Input HDMI Monitor DELV-HDSD-10-AB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Delvcam 9.7" Dual Input HDMI Monitor DELV-HDSD-10-AB:
LCD Size 9.7" IPS display
Video System NTSC
PAL
Resolution Native: 1024 x 768
Support: 1920 x 1080
Viewing Angle 178°/178° (H/V)
Brightness 400 nit
Contrast Ratio 600:1
Aspect Ratio Native: 4:3
Support: 16:9
Input and Output Connectors Input
HDMI: 2 x Type A
Component: 1 x 3 BNC YPbPr
Composite: 1 x BNC
Audio: 2 x RCA jacks (L/R)
Tally: 1 x 15-pin DIN

Output
HDMI: 1 x Type A
Component: 1 x 3 BNC YPbPr
Composite: 1 x BNC Headphone: 1 x 3.5mm Stereo mini jack
Speaker: Built-in
Format Support Composite
NTSC
PAL

Component
1080p: 59.94/50/
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 59.94
480i: 59.94
NTSC
PAL

HDMI
1035i: 60/59.94 720p: 60/59.94/50/30/29.97
576p: 50
576i: 50
480p: 59.94
480i: 59.94
Power Requirements Input Voltage: 7 to 24 VDC
Current: 1500 mA Consumption: 18 W
Temperature Operating: -4 to 140°F / -20 to 60°C
Storage: -22 to 158°F / -30 to 70°C
Dimensions (WxHxD) 9.7 x 8.8 x 1.2" / 246 x 224 x 31 mm 9.7 x 8.8 x 6.6" / 246 x 224 x 167.5 mm (with sun hood)
Weight 2.4 lb / 1.07 kg
3.1 lb / 1.39 kg (with sun hood)
