User manual DPA Microphones d:vote 4099 Rock Touring Kit, 4 Mics VO4-ROCK

Operating instructions and pdf manual for use - DPA Microphones d:vote 4099 Rock Touring Kit, 4 Mics VO4-ROCK User manual, User manual DPA Microphones d:vote 4099 Rock Touring Kit, 4 Mics VO4-ROCK, DPA, Microphones, d:vote, 4099, Rock, Touring, Kit


User manual for DPA Microphones d:vote 4099 Rock Touring Kit, 4 Mics VO4-ROCK

DPA Microphones d:vote 4099 Rock Touring Kit, 4 Mics VO4-ROCK
  • Manufacturer: DPA Microphones
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Small Diaphragm Condenser
  • Safety instructions
  • Startup and operation of the small diaphragm condenser
  • Tips for setting up your DPA Microphones
  • Settings and expert assistance
  • Contact DPA Microphones service
  • Troubleshooting
  • Warranty information
DPA Microphones d:vote 4099 Rock Touring Kit, 4 Mics VO4-ROCK DPA Microphones d:vote 4099 Rock Touring Kit, 4 Mics VO4-ROCK DPA Microphones d:vote 4099 Rock Touring Kit, 4 Mics VO4-ROCK DPA Microphones d:vote 4099 Rock Touring Kit, 4 Mics VO4-ROCK
Click to enlarge image

We recommend checking out our discussion threads on the DPA Microphones d:vote 4099 Rock Touring Kit, 4 Mics VO4-ROCK, which address similar problems with connecting and setting up Small Diaphragm Condenser DPA Microphones.



User manual for the DPA Microphones d:vote 4099 Rock Touring Kit, 4 Mics VO4-ROCK

The user manual for the DPA Microphones d:vote 4099 Rock Touring Kit, 4 Mics VO4-ROCK provides necessary instructions for the proper use of the product Pro Audio - Recording - Small Diaphragm Condenser.

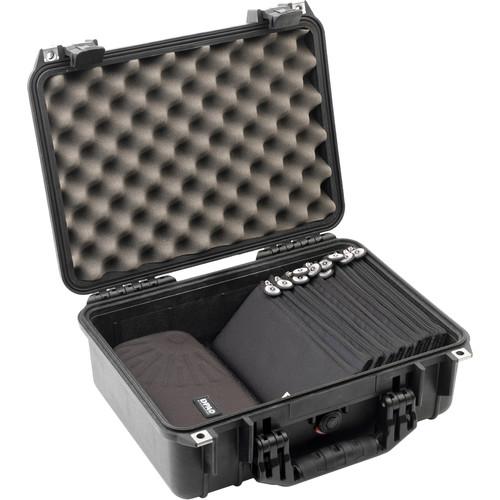

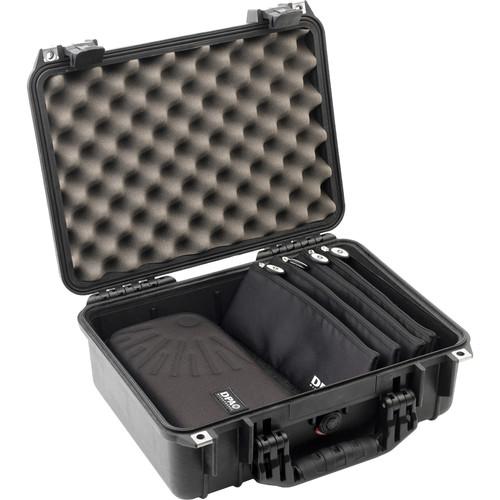

The d:vote 4099 Rock Touring Kit, 4 Mics and Accessories for High SPL from DPA is a complete solution for capturing instruments or vocals in recording and live sound reinforcement applications. It is designed for on-the-road-use and is suitable for rental companies, musicians, theaters, touring companies, and similar scenarios. The kit includes four 4099 instrument microphones with MicroDot connectors, four MicroDot to 3-pin XLR adapters with belt clips, four miniature microphone cables, four drum clips, four trumpet and sax clips, two universal clips, and a Peli case for transportation. The detachable lightweight cable connects the 5.5" gooseneck to the XLR adapter, enabling you to conveniently mount the microphone on an instrument before connecting it. The 4099 microphone offers a low profile and unobtrusive design combined with high quality sound and accurate dynamics for a wide variety of instruments.
If you own a DPA Microphones small diaphragm condenser and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the DPA Microphones d:vote 4099 Rock Touring Kit, 4 Mics VO4-ROCK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the DPA Microphones d:vote 4099 Rock Touring Kit, 4 Mics VO4-ROCK:
Transducer Type Pre-Polarized Condenser
Polar Pattern Supercardioid
Principle of Operation Pressure Gradient
Frequency Range 20 Hz to 20 kHz
80 Hz to 15 kHz with 2 dB Soft Boost @ 10 to 12 kHz, Second Order Low-Cut Filter @ 80 Hz (>+/- 2 dB, 20 cm Distance)
Sensitivity 6 mV/Pa; -44.5 dB Reference: 1 V/Pa (Nominal, +/- 3 dB)
Equivalent Noise Level Typ. 23 dB(A) Reference: 20 µPa (Maximum 26 dB(A)) (A-Weighted)
Signal to Noise Ratio 71 dB (Reference: 1 kHz @ 1 Pa, 94 dB SPL)
Total Harmonic Distortion (THD) < 1 % up to 123 dB SPL peak
< 1 % up to 120 dB SPL RMS sine
Dynamic Range 100 dB
Maximum SPL 142 dB (Peak Before Clipping)
Output Impedance MicroDot: 30 to 40 Ω
XLR: 100 Ω
Cable Drive Capability XLR: 984' (300 m)
Output Balance Principle Signal balanced with XLR adapter
CMRR XLR Adapter: > 60 dB @ 50 Hz to 15 kHz
Power Supply Minimum 5 V to Maximum 50 V through DPA adapter for wireless systems
48 V phantom power ±4 V with XLR adapter
Current Consumption MicroDot: 1.5 mA
XLR Adapter: 3.5 mA
Compatibility Fits Instruments with a Body Depth Between 1.4 and 2.1" (35 and 55 mm)
Polarity Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD4099-BC XLR adapter)
Operating Temperature -40 to 113°F (-40 to 45°C)
Relative Humidity Up to 90%
Gooseneck Length: 5.5" (140 mm)
Microphone Length 1.8" (45 mm)
Weight 1.16 oz (33 g)
Packaging Info
Package Weight 6.0 lb
Box Dimensions (LxWxH) 14.0 x 10.0 x 6.0"
The user manual for the DPA Microphones d:vote 4099 Rock Touring Kit, 4 Mics VO4-ROCK can be downloaded in .pdf format if it did not come with your new small diaphragm condenser, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other DPA Microphones users keep a unique electronic library for DPA Microphones small diaphragm condensers, where you can use our link to download the user manual for the DPA Microphones d:vote 4099 Rock Touring Kit, 4 Mics VO4-ROCK.

The user manual lists all of the functions of the DPA Microphones d:vote 4099 Rock Touring Kit, 4 Mics VO4-ROCK, all the basic and advanced features and tells you how to use the small diaphragm condenser. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from DPA Microphones service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the DPA Microphones d:vote 4099 Rock Touring Kit, 4 Mics VO4-ROCK. User manuals are also available on the DPA Microphones website under Pro Audio - Recording - Small Diaphragm Condenser.
