User manual Drobo 36TB B1200i iSCI SAN Storage Enclosure DR-B1200I-1A21-Q12

Operating instructions and pdf manual for use - Drobo 36TB B1200i iSCI SAN Storage Enclosure DR-B1200I-1A21-Q12 User manual, User manual Drobo 36TB B1200i iSCI SAN Storage Enclosure DR-B1200I-1A21-Q12, Drobo, 36TB, B1200i, iSCI, SAN, Storage, Enclo


User manual for Drobo 36TB B1200i iSCI SAN Storage Enclosure DR-B1200I-1A21-Q12

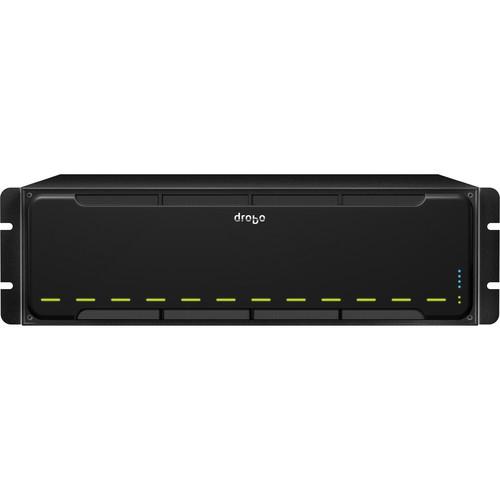

Drobo 36TB B1200i iSCI SAN Storage Enclosure DR-B1200I-1A21-Q12
  • Manufacturer: Drobo
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Network Attached Storage Drives
  • Safety instructions
  • Startup and operation of the network attached storage drives
  • Tips for setting up your Drobo
  • Settings and expert assistance
  • Contact Drobo service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Drobo 36TB B1200i iSCI SAN Storage Enclosure DR-B1200I-1A21-Q12, which address similar problems with connecting and setting up Network Attached Storage Drives Drobo.



User manual for the Drobo 36TB B1200i iSCI SAN Storage Enclosure DR-B1200I-1A21-Q12

The user manual for the Drobo 36TB B1200i iSCI SAN Storage Enclosure DR-B1200I-1A21-Q12 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Attached Storage Drives.

If you want to securely save data across multiple servers in a iSCSI SAN environment, the Drobo 36TB B1200i iSCI SAN Storage Enclosure (12 x 3TB HDD) is a powerful, 12-bay, easy-to-use means of doing so. This Drobo includes twelve enterprise-class 3TB hard disk drives that have the blisteringly SAS 6Gbps interface and that offer a total capacity of 36TB. Even with these drives, the enclosure's capacity can be constantly expanded because its twelve drive bays can hold SATA I or II, SAS, or SSD drives of up to 4TB apiece.

Built on the proven BeyondRAID technology, this Drobo delivers advanced capabilities such as thin provisioning and data-aware tiering, usually reserved for more expensive enterprise solutions. Thin-provisioning allows you to expand capacity by switching out one drive with another. Data-aware tiering is a technology that optimizes the use of Drobo SAN storage, depending on the kind of database needs that you have. It also allows you to use SAS, SATA, Solid State drives all in the same enclosure!

For business, this Drobo is designed to provide reliable and high performance storage to servers running business-critical applications such as back up, email, and server virtualization. Drobo B1200i connects seamlessly to your existing TCP/IP network and utilizes the industry-standard iSCSI protocol to provide simple, consolidated storage for your servers. This particular Drobo includes three Gigabit Ethernet ports for connecting to your network and one additional Gigabit port for out-of-band management.
If you own a Drobo network attached storage drives and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Drobo 36TB B1200i iSCI SAN Storage Enclosure DR-B1200I-1A21-Q12 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Drobo 36TB B1200i iSCI SAN Storage Enclosure DR-B1200I-1A21-Q12:
Interface 3x 10/100/1000Mbps Gigabit Ethernet (RJ-45)
1 x 10/100/1000 Mbps Ethernet port for out-of-band management
Data Transfer Rate Not Specified by Manufacturer
Drive Types Supported 12x 3.5" SATA I / SATA II, SAS, SSD drives (supports up to 4TB drives)
BeyondRAID Features Thin Provisioning
Instant Expansion
Mixed Drive Size Utilization
Automatic Protection Levels
Dual Disk Redundancy
Virtual Hot Spare
Data Aware
Drive Re-ordering
Additional Features Data-Aware Tiering
Smart Volumes (LUNs, up to 255)
Drive Spin Down
Drobo Copy
Field-replaceable controller, power supplies, and fan unit
Ethernet Connection failover
Jumbo Frames (up to 9000 Kb MTU)
Network Protocols iSCSI with CHAP Authentication
Utilities Windows: NTFS
Mac OS X: HFS+
VMware: VMFS
Certified Applications VMware vSphere 4.x
Citrix XenServer 5.6
Symantec Backup Exec 2010
Management Drive bay indicator lights, capacity gauge, status lights
Drobo Dashboard version 2.1 or later
Drobo-initiated email notifications
SNMP
Agency Certifications Environmental: RoHS, WEEE, REACH
Regulatory: FCC Part 15 Class B, Canada ICES-003 Class B, CE Mark, CISPR22:1997 3rd Edition Class B, MIC Mark, VCCI Approval to V.3, BSMI Approval to CNS13438, ACA Approval to AS/NZS 3548
Safety: UL, cUL, TUV, CB
Acoustics Not Specified by Manufacturer
Cooling Dual, redundant, hot-swappable power supplies
Hot-swappable cooling fan unit
System Requirements Operating System:

Windows 2008 Server R2 SP1 64 bit
Windows 2003 Server R2 SP1 32 and 64 bit
Windows XP SP1 32 and 64 bit
Windows Vista SP1 32 and 64 bit
Windows 7 SP1 32 and 64 bit
Mac OS 10.5.8 or later (Intel Only)
Mac OS Server 10.5.8 or later (Intel Only)
VMware vSphere 4.x
Citrix XenServer 5.6
Power Requirements AC: 100-240VAC Power Supply
Rackmountable 3RU
Dimensions (WxHxD) 17.17 x 5.2 x 21.85" / 43.61 x 13.21 x 55.50cm
Weight 16 lb / 7.25 kg (without hard drives or packaging)
The user manual for the Drobo 36TB B1200i iSCI SAN Storage Enclosure DR-B1200I-1A21-Q12 can be downloaded in .pdf format if it did not come with your new network attached storage drives, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Drobo users keep a unique electronic library for Drobo network attached storage drivess, where you can use our link to download the user manual for the Drobo 36TB B1200i iSCI SAN Storage Enclosure DR-B1200I-1A21-Q12.

The user manual lists all of the functions of the Drobo 36TB B1200i iSCI SAN Storage Enclosure DR-B1200I-1A21-Q12, all the basic and advanced features and tells you how to use the network attached storage drives. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Drobo service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Drobo 36TB B1200i iSCI SAN Storage Enclosure DR-B1200I-1A21-Q12. User manuals are also available on the Drobo website under Computers & Solutions - Networking - Network Attached Storage Drives.
