User manual for the Electro-Voice RE-2 UHF Wireless Bodypack F.01U.146.147
The user manual for the Electro-Voice RE-2 UHF Wireless Bodypack F.01U.146.147 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

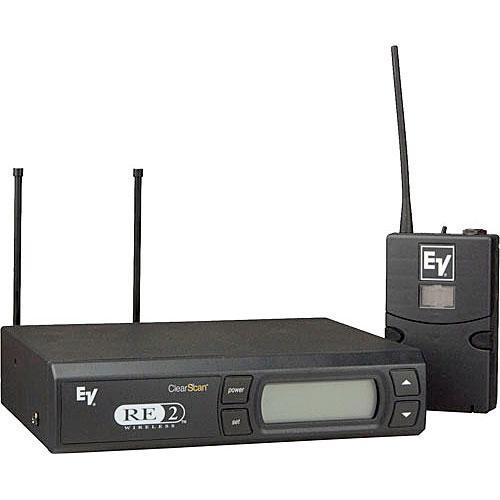

The Electrovoice RE-2 Series wireless microphone systems provide true professional wireless technology featuring UHF transmission, diversity reception and rugged, road worthy design. The RE-1 bodypack system features the RE-2 receiver and BPU-2 body-pack transmitter.
|
If you own a Electro-Voice wireless systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Electro-Voice RE-2 UHF Wireless Bodypack F.01U.146.147 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Electro-Voice RE-2 UHF Wireless Bodypack F.01U.146.147:
| Type of System | UHF Frequency Agile Diversity | | RF Carrier Frequency Range | Frequency G / 614 - 642MHz (TV Channels 38 - 42) | | Approx. Working Range | 300' | | Overall Frequency Response | 50 - 15kHz +/- 2dB | | Signal-to-Noise Ratio | > 100dB (A) | | # Of Channels | 1,112 - programmable in 25kHz steps across 24MHz bandwidth | | # Of Simultaneous Systems | 16 - for additional consult with EV about custom programmed frequency groups | | Type of Receiver | Synthesized PLL Agile UHF | | Type of Outputs | Balanced: 3-pin XLR - mic level
Unbalanced: 1/4" Phone - adjustable line level | | Headphone Monitoring | No | | Power Requirements | 12V AC/DC 300mA | | Battery Type/Approx. Life | AC powered only | | Display | Backlit LCD | | Mounting Options | Rack Mountable | | Antenna Type | Detachable 1/4 wave | | Dimensions | 1.72 x 7.50 x 5.90" (43.69 x 190.50 x 150.00mm) (H x W x D) | | Weight | not specified by manufacturer | | Type of Transmitter | UHF Frequency Agile Bodypack | | Type of Input Connector | TA4F Microphone: pin-1 ground, pin-2 Mic input, pin-3 +5V Bias, pin-4 +5 through 3k ohm | | Type of Microphone | not included with this package | | Polar Pattern | not applicable - microphone not included | | Interchangeable Mic Heads | compatible with all EV microphones featuring TA4-m type connection | | Battery Type/Approx. Life | 8 hours with 9-Volt alkaline battery (typical) | | Mute Switch | On / Off & Mute Switch (combined) | | Level Control | Gain Adjustment: 40dB range
Microphone / Instrument Switch: 0, -20dB | | Antenna Type | External 1/4 wave detachable | | Display | Backlit LCD
Displays - Group, Channel, Frequency and Low Battery Level Red LED
Low Battery Indicator | | Dimensions | 3.8 x 2.6 x 0.92" (96.5 x 66 x 23.4mm) (H x W x D) | | Weight | not specified by manufacturer | | Package Weight | 5.4 lb | | Box Dimensions (LxWxH) | 16.7 x 11.9 x 4.0" | |
