User manual for the ESI UDJ6 6-Output USB Audio Interface UDJ6
The user manual for the ESI UDJ6 6-Output USB Audio Interface UDJ6 provides
necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

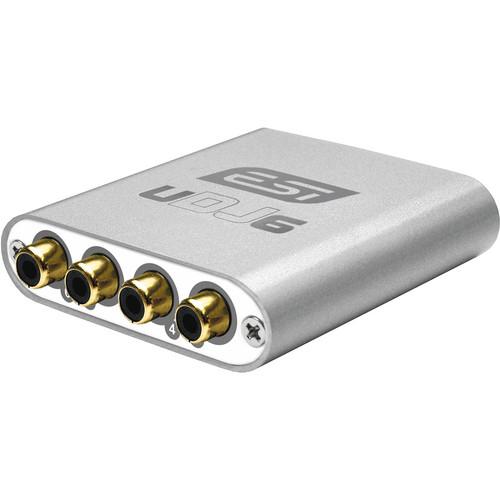

The UDJ6 6-Output USB Audio Interface from ESI/Ego Sys is designed for digital DJs working with notebook computers. The UDJ6 also works with desktop computers and offers compatibility with most professional audio software applications. Its D/A converter handles resolutions up to 24-bit/96kHz and features 6 totally independent output channels.
Each of the 6 output channels can be accessed separately from within a DJ software application, although the provided connectors are most commonly utilized as 2 stereo pairs of RCA jacks and a 1/4" stereo headphone output.
The UDJ6 is a USB bus-powered interface, housed within a hearty aluminum case. It is compatible with both Mac and Windows computers and comes bundled with a license of Deckadance LE DJ software.
|
If you own a ESI audio interfaces & systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ESI UDJ6 6-Output USB Audio Interface UDJ6 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the ESI UDJ6 6-Output USB Audio Interface UDJ6:
USB Interface | USB spec version 1.1 USB audio class spec version 1.0 Fully compatible with USB 2.0 host controllers | Output Connectors | 1 x 1/4" TRS stereo (1, 2) 4 x RCA line-level (3, 4, 5, 6) | Analog Output Levels | -10 dBV unbalanced (line outputs) +0.5 dBV maximum | Output Impedance | 100Ω | Sampling Rates | 6-channel playback at 44.1 / 48 kHz (24-bit) 2-channel playback up to 96 kHz (24-bit) | D/A Converter | Dynamic range: 112 dB A-weighted (typical) Frequency response: 20 Hz ~ 22 kHz (@ fs=48 kHz) Resolution: 24-bit THD+N: -94dB | Headphone Amplifier | Output power: 60 mW maximum Signal-to-Noise ratio: 110dB (typical) (THD+N)/S: -70dB, 0.03% (typical) | Power | USB bus-powered 250 mA maximum | Operating Systems Supported | Windows XP and Windows Vista / 7 with ASIO 2.0, GSIF, MME, WDM and DirectSound
Mac OS X (10.4 and above) via the native CoreAudio USB audio driver from Apple (no driver installation required)
Internet connection required to use Deckadance LE software | Windows System Requirements | Windows XP or Windows Vista / 7 (32- or 64-bit) operating system Intel Pentium II 300MHz CPU or comparable AMD CPU (or equivalent) Recommended: Pentium III 600 MHz CPU or better Available USB port At least 64MB RAM | Mac System Requirements | Mac OS X 10.4 or higher Power Macintosh G3 or higher Available USB port At least 64MB RAM | Dimensions (L x W x H) | 2.76 x 2.36 x 0.79" (7 x 6 x 2 cm) | Weight | Not specified by Manufacturer | Package Weight | 0.55 lb | Box Dimensions (LxWxH) | 7.5 x 5.6 x 1.4" | |
The user manual for the ESI UDJ6 6-Output USB Audio Interface UDJ6 can be downloaded in .pdf
format if it did not come with your new audio interfaces & systems, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other ESI users keep a unique electronic library
for ESI audio interfaces & systemss,
where you can use our link to download the user manual for the ESI UDJ6 6-Output USB Audio Interface UDJ6.
The user manual lists all of the functions of the ESI UDJ6 6-Output USB Audio Interface UDJ6,
all the basic and advanced features and tells you how to use the audio interfaces & systems.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from ESI service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the ESI UDJ6 6-Output USB Audio Interface UDJ6. User manuals are also
available on the ESI website under Pro Audio - Computer Audio - Audio Interfaces & Systems.
