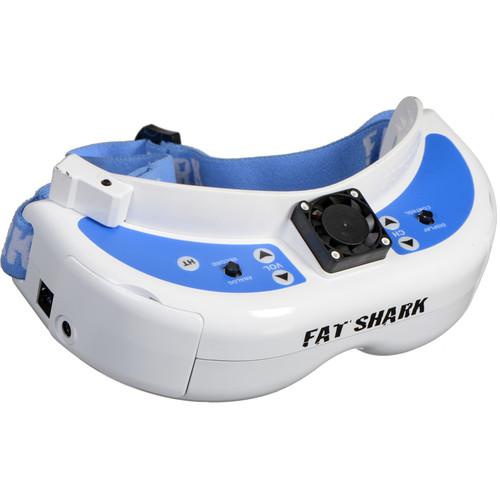

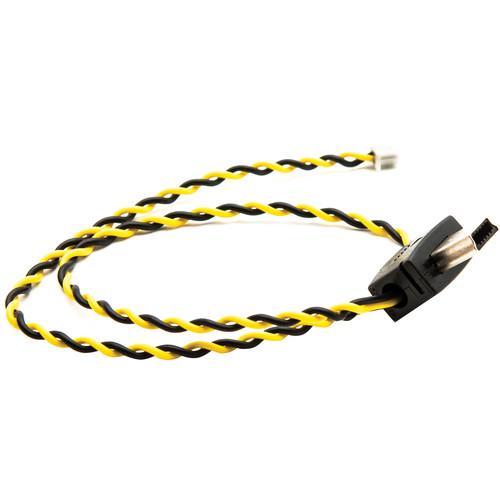

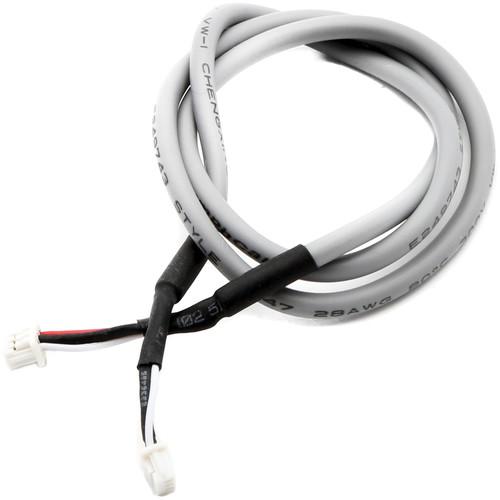

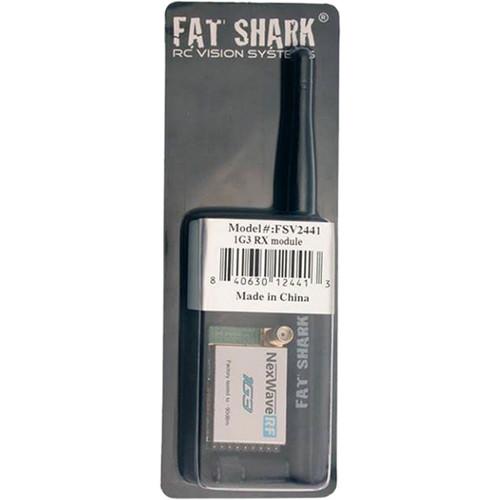

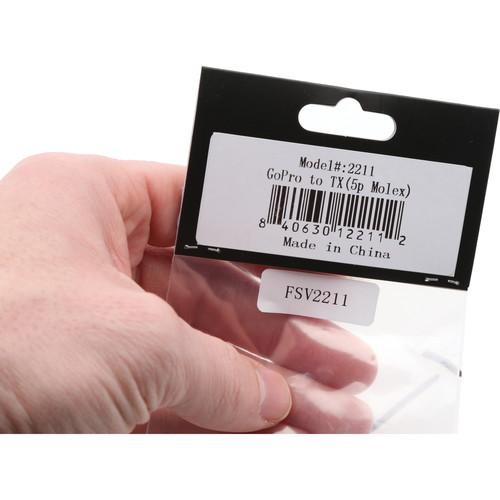

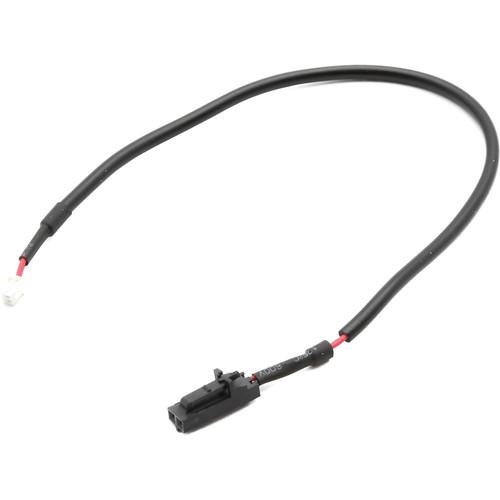

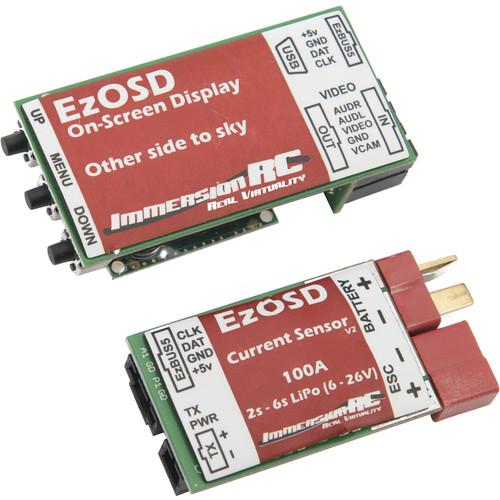

Fat Shark DominatorV3 WVGA FPV Headset FSV1063 The DominatorV3 WVGA FPV Headset from Fat Shark allows for first-person viewing (FPV) of the video downlink from the wireless transmitter on your RC aircraft for a truly immersive flying experience. It features a WVGA (800 x 480) ... Fat Shark 1G3 Receiver Module for Dominator / FSV2441 The 1G3 Receiver Module for Dominator / DominatorHD FPV Systems from Fat Shark allows headset functions to be tailored to specific FPV requirements and enables upgrading as needs are identified.... Fat Shark EzOSD On-Screen Display System with GPS IRL2201 The EzOSD On-Screen Display System with GPS from Fat Shark is a telemetry radio and GPS hybrid with a data downlink for use with the iTelemetryFPV mobile app or a ground station system. Additionally, it is fully compatible with th... Fat Shark GoPro USB to Cased VTX Cable (Fat Shark# 2212) FSV2212 ... Fat Shark GoPro to VTX 5P Molex Cable (Fat Shark# 2211) FSV2211 ... Fat Shark VTX Cable for FCC-Certified FPV Camera FSV2210 The Fat Shark model 2210 is a VTX Cable for FCC-certified FPV cameras.... Fat Shark FSV2208 FCC VTX Power Cable to Balance Board FSV2208 The Fat Shark model 2208 FCC VTX Power Cable to Balance Board from is used to connect the FSV1809 balance board to the FSV1809 FCC-Certified Transmitter.... Fat Shark 350 GoPro Holder (Fat Shark #1617) FSV1617 ... Fat Shark 3.6mm Lens for420L and 700L CCD Cameras FSV1305 Ideal for head tracking and FPV applications where the camera is on a motorized pan/tilt mount, the 3.6mm Lens for420L and 700L CCD Cameras from Fat Shark provides an 84° field of view (FOV). This focal length is more telephot... Fat Shark 4P to 4P Prong A/V Cable (9.8 ft) FSV1408 This 4P to 4P Prong A/V Cable from Fat Shark is a 9.8 ft 4-pin to 4-pin straight prong cable.... Fat Shark DIY Barrel Connector Power Cable FSV1501 This DIY Barrel Connector Power Cable from Fat Shark features a barrel connector on one end and open leads on the other. It can be used to enable compatibility between various batteries and select Fat Shark products.... Fat Shark Headset 2s LiPo Battery Charger FSV1616 Charge your Fat Shark FPV Headset batteries with the Headset Battery Charger. This charger accepts Fat Shark 2s LiPo batteries and will charge a Teleporter V4 760mAh battery in about 30 minutes at 1.5 amps. A 1000mAh battery charg... Fat Shark Replacement Headset Carry Case for Dominator FSV1808 This Replacement Headset Carry Case for Dominator from Fat Shark is the same kind of case that comes included with the Dominator headset system.... Fat Shark SpiroNET 5.8 GHz CP Patch Antenna IRL2302 The SpiroNET 5.8 GHz CP Patch Antenna features an SMA connector and is compatible with all Fat Shark and Immersion RC 5.8 GHz video receivers. It has been designed with the FPV market in mind, and can be mounted directly onto an L... Fat Shark SpiroNET 5.8 GHz Antennas for FPV Wireless IRL2301 This pair of SpiroNET 5.8 GHz Antennas for FPV Wireless Video Systems are compatible with all Fat Shark and ImmersionRC 5.8 GHz video transmission systems, with one antenna for the air-end transmitter and one for the pilot's FPV ... Fat Shark 25mW 5.8 GHz A/V Transmitter (for Europe) IRL2102 With a 25mW transmit power, the 25mW 5.8 GHz A/V Transmitter from Fat Shark requires a HAM radio license to operate in the U.S., but is C.E.-approved for license-free operation in Europe. It uses a 5.8 GHz frequency to avoid recei... Fat Shark 600mW 5.8 GHz A/V Transmitter IRL2101 With a 600mW transmit power, the 600mW 5.8 GHz A/V Transmitter from Fat Shark requires a HAM radio license to operate in the U.S. It uses a 5.8 GHz frequency to avoid receiving or causing interference with 2.4 GHz radio control s... Fat Shark Trinity 3-Axis External Head Tracker FSV1803 Add an additional immersive element to your FPV flights with the Trinity 3-axis External Head Tracker from Fat Shark. The head tracker is a sensor that mounts on compatible Fat Shark and ImmersionRC FPV goggles. Using an IMU and t... Fat Shark Headset Banana Charger Adapter FSV1801 This Headset Banana Charger Adapter from Fat Shark allows you to connect Fat Shark's 7.4V, 1000 mAh LiPo battery to any headset charger that uses banana connectors.... Fat Shark 2P to 2P Molex TX Power Cable FSV1412 This 2P Molex to 2P RC TX Power Cable from Fat Shark features a 2-pin Molex connector on one end and JST battery connector on the other. It's a replacement power cable for Fat Shark transmitters....
