User manual for the FLIR 2.1MP Day/Night IR Mini Bullet Camera with 3.6mm DNB13TF22
The user manual for the FLIR 2.1MP Day/Night IR Mini Bullet Camera with 3.6mm DNB13TF22 provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

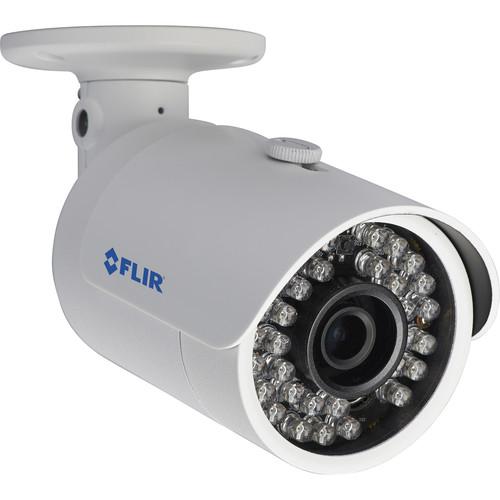

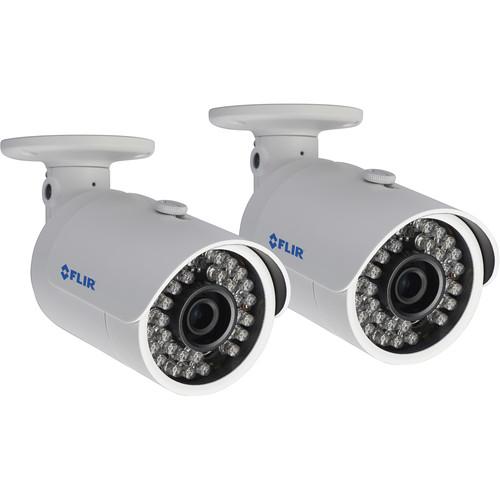

The pack of two 2.1MP Day/Night IR Mini Bullet Cameras from FLIR utilize 1/2.5" Sony Exmor CMOS progressive-scan image sensors and 3.6mm wide angle lenses to capture video in 1080p resolution at 30 fps. The cameras offer Day/Night functionality with IR cut filters, and 32 super flux IR LEDs per camera provide night vision at distances of up to 80'. The cameras come with 64-channel CMS software from FLIR. Additionally, the cameras support remote-viewing on iPhone, iPad, and Android devices via free mobile apps available on Play Store and App Store platforms. The cameras are ONVIF 2.0 compliant, ensuring integration with third-party VMS solutions. The IP66-rated housings make the cameras suitable for both indoor and outdoor installations.
If you own a FLIR wired ip cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the FLIR 2.1MP Day/Night IR Mini Bullet Camera with 3.6mm DNB13TF22 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the FLIR 2.1MP Day/Night IR Mini Bullet Camera with 3.6mm DNB13TF22:
| Sensor || 1/2.5" Sony Exmor CMOS |
| Scanning System || Progressive scan |
| Lens || 3.6 mm fixed MegaPixel |
| Field-of-View || Horizontal: 77° |
| Resolution || 1920 x 1080 Full HD (2.1 MP) at 30 fps |
| Day/Night Operation || True Day/Night with ICR filter |
High-powered IR LEDs
| IR LED || 32 LEDs |
| IR Distance || 70' (22 m) |
| Minimum Illumination || Color: 0.1 lux @ f/1.2, AGC on |
0 lux IR LED on
| Video Output || RJ45, setup |
| Electronic Shutter || Auto / Manual |
1/4 to 1/10,000 sec
| S/N Ratio || >50 dB |
| Compression || H.264 / MJPEG |
| Bit Rate || H.264: 32,000 to 8192 kb/s |
MJPEG: 32,000 to 20480 kb/s
| Frame Rate || Main Stream: 1080p / 720p (1 to 30 fps) |
Sub Stream: D1/CIF (1 to 30 fps)
| Multi-Streaming || User setting of Stream 1 / 2 (at supported resolutions) |
| Resolution || 1080p (1920 x 1080) |
720p (1280 x 720)
D1 (704 x 480)
CIF (352 x 240)
| Light Compensation || BLC / HLC / DWDR |
| White Balance || Auto |
| Gain Control || Auto / Manual |
| Noise Reduction || 2D |
| Privacy Masking || Up to 4 areas |
| Ethernet || 1 x RJ45 10/100 Base-T connector |
| TCP/IP || IPv4 / IPv6 |
| Compliance || ONVIF 2.1 (backward compatible) |
| Maximum User Access || 10 users |
| Smartphone Compatability || iPhone, iPad, Android |
| Protocol || IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
| Power || 12 VDC, <6 W |
| PoE || PoE Class 3 802.3af, 14 W (maximum) |
| Operating Temperature || 14 to 122°F (10 to 60°C) |
| Operating Humidity || 10 to 85% RH |
| Approvals || CE / FCC / RoHS / IP66 |
| Dimensions || 2.6 x 6.3" (16.0 x 6.6 cm) including mount |
| Weight || 14.1 oz (400 g) |
| Package Weight || 3.25 lb |
| Box Dimensions (LxWxH) || 8.5 x 7.9 x 4.4" |
The user manual for the FLIR 2.1MP Day/Night IR Mini Bullet Camera with 3.6mm DNB13TF22 can be downloaded in .pdf
format if it did not come with your new wired ip cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other FLIR users keep a unique electronic library
for FLIR wired ip camerass,
where you can use our link to download the user manual for the FLIR 2.1MP Day/Night IR Mini Bullet Camera with 3.6mm DNB13TF22.
The user manual lists all of the functions of the FLIR 2.1MP Day/Night IR Mini Bullet Camera with 3.6mm DNB13TF22,
all the basic and advanced features and tells you how to use the wired ip cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from FLIR service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the FLIR 2.1MP Day/Night IR Mini Bullet Camera with 3.6mm DNB13TF22. User manuals are also
available on the FLIR website under Surveillance - Surveillance Video - Wired IP Cameras.
