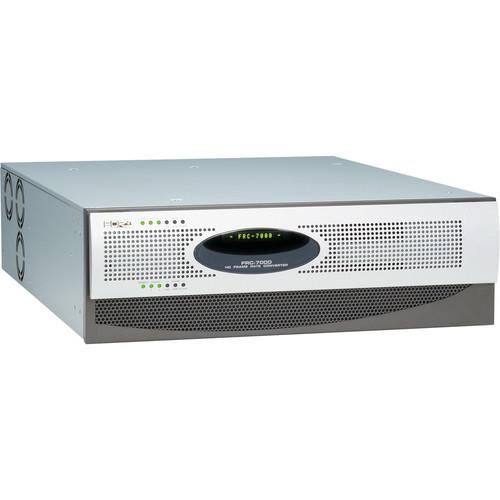

For.A  FRC-7000 Frame Rate Converter FRC-7000
  • Manufacturer: For.A
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Signal Converters
  • Safety instructions
  • Startup and operation of the signal converters
  • Tips for setting up your For.A
  • Settings and expert assistance
  • Contact For.A service
  • Troubleshooting
  • Warranty information
  • Price: 78 USD
We recommend checking out our discussion threads on the For.A FRC-7000 Frame Rate Converter FRC-7000, which address similar problems with connecting and setting up Signal Converters For.A.



User manual for the For.A FRC-7000 Frame Rate Converter FRC-7000

The user manual for the For.A FRC-7000 Frame Rate Converter FRC-7000 provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Signal Converters.

The FRC-7000 Frame Rate Converter from For.A is a professional frame-rate converter that offers high-precision conversion using motion compensation technology and scene-cut detection. This unit can be used to realize frame-rate conversion with minimal juddering by detecting the motion vector of an object.
If you own a For.A signal converters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the For.A FRC-7000 Frame Rate Converter FRC-7000 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the For.A FRC-7000 Frame Rate Converter FRC-7000:
Inputs HD SDI: 1.485Gbps or 1.485/1.001Gbps, 75 Ohms, BNC 1 input
Outputs HD SDI: 1.485Gbps or 1.485/1.001Gbps, 75 Ohms, 1 channel, 4 outputs, BNC (Output 1 functions as bypass output)
Reference Reference Input:
BB: NTSC: 0.429Vp-p/PAL: 0.45Vp-p or tri-level sync: +/-0.3V, loopthrough, 2 inputs, BNC
Reference Output:
BB: NTSC: 0.429Vp-p/PAL: 0.45Vp-p, 75 Ohms, 2 channels, 2 outputs, BNC (switching between input synchronization/output synchronization is possible)
Formats Standards:
1080/60i, 1080/59.94i, 1080/50i, 720/60p, 720/59.94p, 720/50p
Standards (FRC-70PSFC):
1080/30p, 1080/30PsF, 1080/29.97p, 1080/29.97PsF, 1080/25p, 1080/25PsF, 1080/24p, 1080/24PsF, 1080/23.98p, 1080/23.98PsF
Conversion Conversion Directions:
1080i to 1080i, 720p to 720p
Conversion Directions (FRC-70PSFC):
1080p/PsF to 1080i, 1080p/PsF to 1080p/PsF, 1080i to 1080p/PsF
Quantization Y: 10-bit
C: 10-bit
Sampling Y: 74.25MHz or 74.25/1.001MHz
C: 37.125MHz or 37.125/1.001MHz
Process Video level: +/-30% (0.5% step)
Chroma level: +/-30% (0.5% step)
Chroma phase: +/-30 degrees (0.5 degrees step)
Setup level: +/-30% (0.5% step)
Clip: Y100% On/Off, Y0% On/Off, C100% On/Off
Phase System horizontal phase: -1/2H to +1/2H,
System vertical phase: -1/2 Frame to +1/2 Frame
Delay +100 to +340ms (Based on input/output format), (i.e., Delay during conversion from 1080/59.94i to 1080/50i: Approximately 105ms)
Audio Delay +5 to +350ms (1ms steps, four stereo channel pairs can be adjusted separately)
Audio Audio Input:
Embedded audio: Group x 2 (4 stereo channels)
Audio Output:
Embedded audio: Group x 2 (4 stereo channels)
Audio Input (FRC-70DA):
1/2 - 7/8: AES/EBU Unbalanced, 75 Ohms, 4 inputs (4 stereo channels), BNC
AUX (AES/EBU 1 channel or Dolby E): Unbalanced, 75 Ohms, 1 input, BNC
Audio Output (FRC-70DA):
1/2 - 7/8: AES/EBU Unbalanced, 75 Ohms, BNC x 4 (4 stereo channels)
AUX (AES/EBU 1 channel or Dolby E): Unbalanced, 75 Ohms, 1 output, BNC
Audio Input (FRC-70DA16):
1/2 - 15/16: AES/EBU Unbalanced, 75 Ohms, 8 inputs (8 stereo channels or Dolby E or AC-3), BNC
Audio Output (FRC-70DA16):
1/2 - 15/16: AES/EBU Unbalanced, 75 Ohms, 8 output (8 stereo channels or Dolby E or AC-3), BNC
Audio sampling Frequency / Quantization:
48 kHz (AES/EBU input only 32 kHz, 44.1 kHz possible) / 20bit, 20bit, 16bit
Audio Delay:
+5 - +350 ms (1ms steps, four stereo channel pairs can be adjusted separately)
Audio Remapping Function:
Individual settings are possible for embedded output, AES/EBU output, internal Dolby E encoder input
Time Code Ancillary time code support, reader/generator function
Interfaces Alarm output: D-sub 15-pin (female), 1 channel (Power, fan, and temperature alarm)
RS-422/Remote: 9-pin D-sub (female), 1 channel (Shared RS-422/Remote)
Power 100 to 240VAC, +/-10%, 50/60Hz
Approximately 440VA (Approximately 440W), (When 100VAC supplied, at maximum output current)
Base Dimensions (WxD) 5.2 x 16.93 x 19.69" (132 x 430 x 500mm)
Weight Approximately 37.48 lbs (17kg), (with one power supply unit)
Full option 44.09 lbs (20kg)
The user manual for the For.A FRC-7000 Frame Rate Converter FRC-7000 can be downloaded in .pdf format if it did not come with your new signal converters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other For.A users keep a unique electronic library for For.A signal converterss, where you can use our link to download the user manual for the For.A FRC-7000 Frame Rate Converter FRC-7000.

The user manual lists all of the functions of the For.A FRC-7000 Frame Rate Converter FRC-7000, all the basic and advanced features and tells you how to use the signal converters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from For.A service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the For.A FRC-7000 Frame Rate Converter FRC-7000. User manuals are also available on the For.A website under Professional Video - Signal Processing & Distribution - Signal Converters.
