User manual Fujifilm X-T10 Mirrorless Digital Camera with 18-55mm 16471005

Operating instructions and pdf manual for use - Fujifilm X-T10 Mirrorless Digital Camera with 18-55mm 16471005 User manual, User manual Fujifilm X-T10 Mirrorless Digital Camera with 18-55mm 16471005, Fujifilm, X-T10, Mirrorless, Digital, Camera, wi


User manual for Fujifilm X-T10 Mirrorless Digital Camera with 18-55mm 16471005

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Fujifilm X-T10 Mirrorless Digital Camera with 18-55mm 16471005
  • Manufacturer: Fujifilm
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - Mirrorless System Cameras
  • Safety instructions
  • Startup and operation of the mirrorless system cameras
  • Tips for setting up your Fujifilm
  • Settings and expert assistance
  • Contact Fujifilm service
  • Troubleshooting
  • Warranty information
  • Price: 949 USD
Fujifilm X-T10 Mirrorless Digital Camera with 18-55mm 16471005 Fujifilm X-T10 Mirrorless Digital Camera with 18-55mm 16471005 Fujifilm X-T10 Mirrorless Digital Camera with 18-55mm 16471005 Fujifilm X-T10 Mirrorless Digital Camera with 18-55mm 16471005 Fujifilm X-T10 Mirrorless Digital Camera with 18-55mm 16471005
Click to enlarge image

We recommend checking out our discussion threads on the Fujifilm X-T10 Mirrorless Digital Camera with 18-55mm 16471005, which address similar problems with connecting and setting up Mirrorless System Cameras Fujifilm.



User manual for the Fujifilm X-T10 Mirrorless Digital Camera with 18-55mm 16471005

The user manual for the Fujifilm X-T10 Mirrorless Digital Camera with 18-55mm 16471005 provides necessary instructions for the proper use of the product Photography - Digital Cameras - Mirrorless System Cameras.

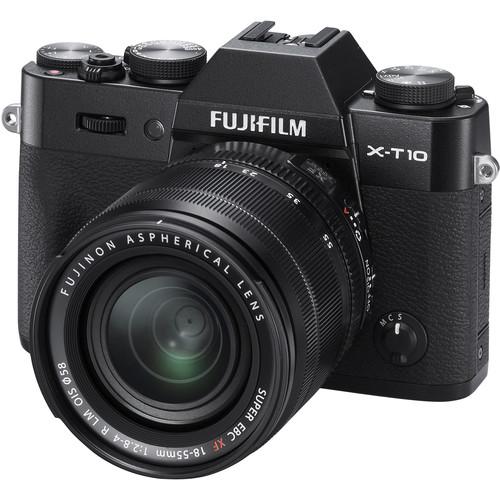

Characterized by its sleek, retro styling, the black X-T10 is a mirrorless camera featuring Fujifilm's unique sensor technology, versatile autofocus modes, and a high-resolution electronic viewfinder. Revolving around the 16.3 MP APS-C-sized X-Trans CMOS II sensor and EXR Processor II, the X-T10 is capable of up to 8 fps continuous shooting and full HD 1080p/60 video recording, and features an expandable sensitivity range from ISO 100-51200. Fujifilm's proprietary X-Trans sensor uses a randomized pixel array in order to avoid the use of a resolution-reducing optical low-pass filter, therefore providing images with the utmost sharpness and clarity. Beyond the advanced imaging capabilities, the X-T10 further distinguishes itself through its ease of operation via direct shutter speed, drive, and exposure compensation dials, as well as a dedicated automatic shooting mode lever. Intuitiveness is further carried over to the Real Time Viewfinder, which features a 2.36m-dot resolution and 0.62x magnification, as well as a Natural Live View setting, to mimic the viewing comfort of an optical viewfinder with the added information control an electronic finder provides. Rounding out the feature-set is a sextet of autofocus modes that utilize the Intelligent Hybrid AF system for fast, accurate focusing with precise subject tracking capabilities. The X-T10 combines a rich array of imaging features with a classic, visceral design for both ease and enjoyment of use.

Beyond the core set of features, the X-T10 extends its versatility in a variety of shooting modes and features, including Film Simulation settings that recreate the look of classic Fujifilm films, such as Provia, Astia, and Velvia. In addition to the electronic viewfinder, a large 3.0" 920k-dot LCD monitor is also available for live view shooting and image review, and features a tilting design to benefit working from high and low angles. Built-in Wi-Fi also complements handling by allowing for remote camera control and wireless image sharing via linked smartphones or tablets.

Included with the X-T10 is the XF 18-55mm f/2.8-4 R LM OIS lens; a standard zoom lens providing a 35mm-equivalent focal length range of 27-84mm, covering wide-angle to portrait-length perspectives. This lens integrates optical image stabilization to minimize the appearance of camera shake to benefit working with longer shutter speeds or greater focal lengths and a linear motor-drive AF system provides fast, smooth focusing capabilities.
If you own a Fujifilm mirrorless system cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Fujifilm X-T10 Mirrorless Digital Camera with 18-55mm 16471005 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Fujifilm X-T10 Mirrorless Digital Camera with 18-55mm 16471005Download user manual for Fujifilm X-T10 Mirrorless Digital Camera with 18-55mm 16471005
(PDF file, 4.65 MB)
Additional parameters of the Fujifilm X-T10 Mirrorless Digital Camera with 18-55mm 16471005:
Specifications
    Imaging
    Lens Mount Fujifilm X Mount
    Camera Format APS-C (1.5x Crop Factor)
    Pixels Actual: 16.7 Megapixel
    Effective: 16.3 Megapixel
    Max Resolution 4896 x 3264
    Aspect Ratio 1:1, 3:2, 16:9
    Sensor Type / Size CMOS, 23.6 x 15.6 mm
    File Formats Still Images: JPEG, RAW
    Movies: H.264, MOV
    Audio: Linear PCM (Stereo)
    Dust Reduction System Yes
    Memory Card Type SD
    SDHC
    SDXC
    AV Recording
    Video Recording Yes
    Resolution 1920 x 1080: 60 fps, 50 fps, 30 fps, 25 fps, 24 fps
    1280 x 720: 60 fps, 50 fps, 30 fps, 25 fps, 24 fps
    Aspect Ratio 16:9
    Video Clip Length Up to 27 Min
    Audio Recording Built-in Mic: With Video, Stereo
    Optional External Mic: With Video, Stereo
    Focus Control
    Focus Type Auto & Manual
    Focus Mode Continuous-servo AF (C), Manual Focus (M), Single-servo AF (S)
    Autofocus Points Contrast Detection:77
    Phase Detection:15
    Viewfinder/Display
    Viewfinder Type Electronic
    Viewfinder Size 0.39"
    Viewfinder Pixel Count 2,360,000
    Viewfinder Eye Point 17.5 mm
    Viewfinder Coverage 100%
    Viewfinder Magnification Approx. 0.62x
    Diopter Adjustment - 4 to +2 m
    Display Screen 3" Rear Screen Tilting  LCD (920,000)
    Screen Coverage 100%
    Exposure Control
    ISO Sensitivity Auto, 200-6400 (Extended Mode: 100-51200)
    Shutter Type: Electronic & Mechanical
    Speed: 30 - 1/4000 second
    Type: Electronic & Mechanical
    Speed: 4 - 1/4000 second in  Program Mode
    Type: Electronic & Mechanical
    Speed: 30 - 1/4000 second in  Time Mode
    Type: Electronic & Mechanical
    Speed: 60 - 0 minutes in  Bulb Mode
    Type: Electronic
    Speed: 1 - 1/32000 second
    Remote Control RR-90 (Optional)
    Metering Method Average metering, Multiple, Spot metering
    Exposure Modes Modes: Aperture Priority, Manual, Program, Shutter Priority
    Compensation: -3 EV to +3 EV (in 1/3 EV steps)
    White Balance Modes Automatic Scene Recognition, Color Temperature, Custom, Fine, Fluorescent (Cool White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
    Continuous Shooting Up to 8 fps at 16.3 MPfor up to 8 frames
    Up to 3 fps at 16.3 MP frames
    Flash
    Flash Modes Auto
    Auto/Red-eye Reduction
    Commander
    Commander/Red-eye Reduction
    Forced On
    Forced On/Red-eye Reduction
    Rear Curtain Sync/Red-eye Reduction
    Rear Sync
    Slow Sync
    Slow Sync/Red-eye Reduction
    Suppressed Flash
    Built-in Flash Yes
    Guide No. 16.4' (5 m) ISO100
    Max Sync Speed 1 / 180 seconds
    Dedicated Flash System TTL
    External Flash Connection Hot Shoe
    Performance
    Start-up Time 0.5 seconds
    Shutter Lag 0.005 seconds
    Self Timer 10 seconds, 2 seconds
    Interval Recording Yes
    Connectivity 2.5mm Sub-mini (2-Ring), HDMI D (Micro), Micro-USB, USB 2.0
    Wi-Fi Capable Yes
    Power
    Battery 1x NP-W126 Rechargeable Lithium-ion Battery Pack, 7.2 VDC, 1260 mAh
    AC Power Adapter AC-9V Power Adapter (Optional)
    Operating/Storage Temperature Operating
    32 to 104°F (0 to 40°C)
    Humidity: 10 - 80%
    Physical
    Dimensions (WxHxD) 4.7 x 3.3 x 1.6" / 118.4 x 82.8 x 40.8 mm
    Weight 13.44 oz / 381 g with battery and memory card
    Kit Lens
    Focal Length 18 - 55mm
    Comparable 35mm Focal Length: 27 - 84 mm
    Aperture Maximum: f/2.8 - 4
    Minimum: f/22
    Angle of View 79.1° - 28.4°
    Minimum Focus Distance 11.81" (30 cm)
    Magnification 0.08 - 0.15x
    Elements/Groups 14/10
    Diaphragm Blades 7
    Autofocus Yes
    Image Stabilization Yes
    Filter Thread Front: 58 mm
    Dimensions (DxL) Approx. 2.56 x 2.77" (65 x 70.4 mm)
    Weight 10.93 oz (310 g)
    Packaging Info
    Package Weight 3.75 lb
    Box Dimensions (LxWxH) 9.8 x 7.9 x 5.7"
    First Look: Fujifilm X-T10
    The user manual for the Fujifilm X-T10 Mirrorless Digital Camera with 18-55mm 16471005 can be downloaded in .pdf format if it did not come with your new mirrorless system cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Fujifilm users keep a unique electronic library for Fujifilm mirrorless system camerass, where you can use our link to download the user manual for the Fujifilm X-T10 Mirrorless Digital Camera with 18-55mm 16471005.

    The user manual lists all of the functions of the Fujifilm X-T10 Mirrorless Digital Camera with 18-55mm 16471005, all the basic and advanced features and tells you how to use the mirrorless system cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Fujifilm service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Fujifilm X-T10 Mirrorless Digital Camera with 18-55mm 16471005. User manuals are also available on the Fujifilm website under Photography - Digital Cameras - Mirrorless System Cameras.
